Servo Automatic Riveting Machine For Aluminum Frying Pan Pot Making

Categories Kitchen Sink Machine
Brand Name: Star Power
Model Number: YZ28G-350
Certification: CU,ISO
Place of Origin: Guangdong, China
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Delivery Time: 1 month
Packaging Details: metal frame with film
Slide Stroke (mm): 400
Return Force (kN): 2000 kN
Machine Type: Hydraulic press machine
System: Servo
Voltage: 380V/220V Optional
Dimension(L*W*H): 2200*2400*4200mm
Weight (T): 3.5 T
Motor Power (kw): 30 kw
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

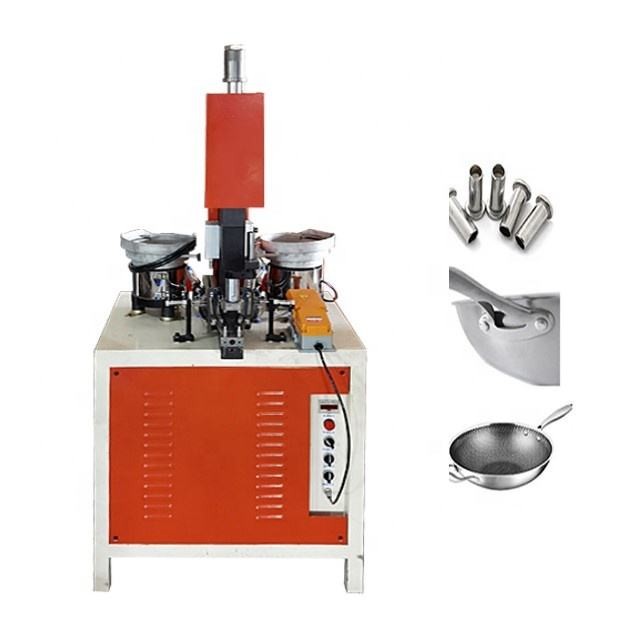

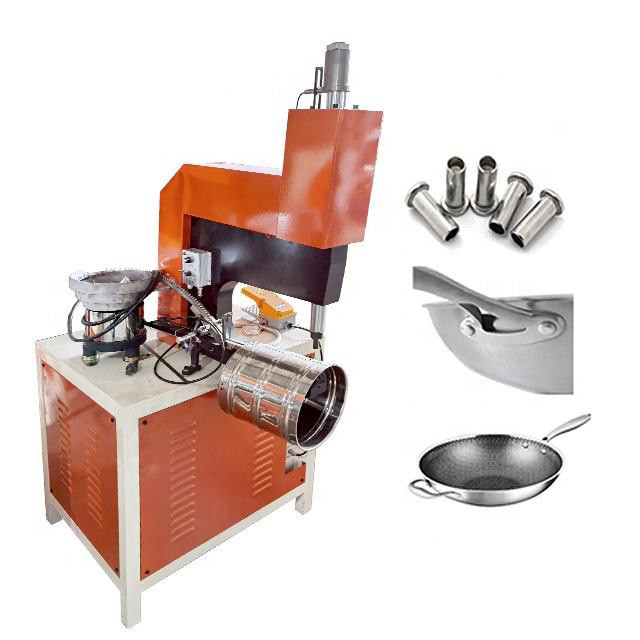

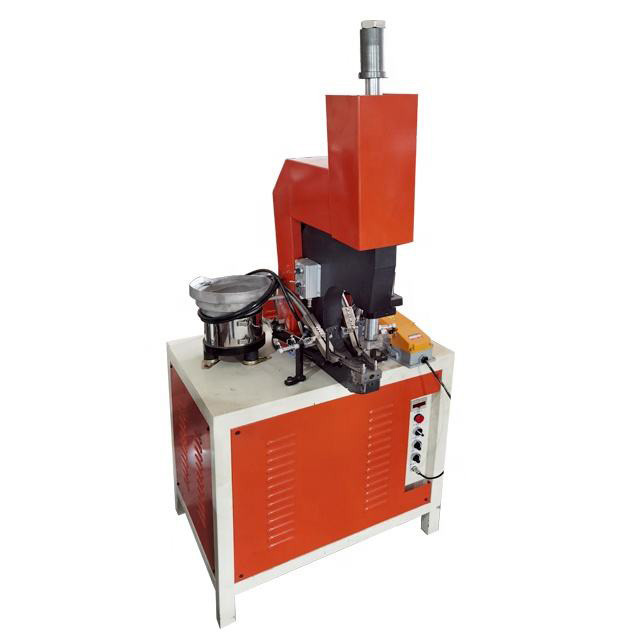

Servo Automatic Riveting Machine For Aluminum Frying Pan Pot Making

aluminum frying pan pot cookware Manual rivet making machine automatic riveting machine


Product Description:


Wrapped by film and packed with fumigated wooden case or Steel frame pallet for container.


Quick Details:


Automatic stud spot welding specification:

a. The stroke of the front and rear modules of the welding torch:250mm
b. The stroke of the welding torch lifting shaft :80mm
c. The production range of size:200mm-340mm
d. The production range of height:45mm - 180mm
e.The production range of thickness:2.3mm-5.0mm
f. The spindle die head is rotated by the servo motor, the angle is unlimited
g.Vibration plate diameter 300 ,studs need guide grooves

Torque test part specification:
b. The stroke of the front and rear mechanism of the equipment:200 mm
c. The production range of size:200mm-340mm
d. The production range of height:45mm - 180mm
e. Spindle die head is rotated by servo motor,the angle isunlimited
h. Welding firmness detection : 10Kg.cm2

Specifications:


DescriptionunitYZ28G-150YZ28G-200YZ28G-250YZ28G-300YZ28G-350
Nominal forcekN10001500150020002500
Hydraulic system rated working pressureMPa2020202520
Return nominal forcekN110140140180125
Nominal force of lower cylinder blank holderkN500500100010001000
Lower cylinder liquid maximum working pressureMPa2020262626
Nominal force of return cylinderkN3030303030
Lower piston maximum strokemm250300300300300
Maximum stroke of return cylindermm200200200200200
Maximum travel of movable beammm540550550550600
Distance from movable beam to work surfaceMaxmm94095095010001110
Minmm400400400450510
Lifting speed of movable beamNo-load downlinkmm/s350350350350400
pressurizedmm/s4136363221/35
return strokemm/s350350350345400
Blank holder piston speedUpmm/s125160115115115
Downmm/sFollow beamFollow beamFollow beamFollow beamFollow beam
Motor powerkW3136364936
Effective area of worktable (left and right × front and rear)mm2650×750700×880700×880750×900800×990

Advantages:


Cheap Servo Automatic Riveting Machine For Aluminum Frying Pan Pot Making for sale
