Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof

Categories	Double Layer Roll Forming Machine
Brand Name:	FMS
Model Number:	Double Layer
Certification:	ISO CE
Place of Origin:	CHINA MAINLAND
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	L/C, T/T, D/A, D/P
Supply Ability:	20 Sets Per Month
Delivery Time:	30 Working Days
Packaging Details:	20' FLC
Product Name:	Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Manufactures
Dimension(LWH):	6.8m1.35m1.25m
Raw Material:	Galvalume, Galvanized
Working Speed:	8-15 m/min
Rolling thinckness:	0.3-0.8mm
Shaft material:	45# steel
Motor power:	7.5 kw
Pow supply:	380V, 60Hz, 3Ph
width of raw material:	850mm
Weight:	5000 kg
material of roller:	45# Cr plated

Contact Now

Add to Cart

Company Info.

Cangzhou Famous International Trading Co., Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

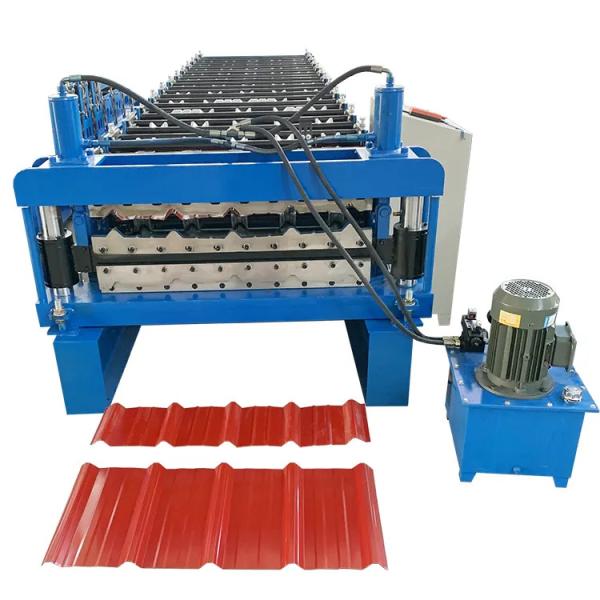

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Manufactures

Trapezoidal Tile Double Layer Roll Forming Machine Long Span Roof Manufactures

Control system:

Programmable setting of profile length and quantity, Computed mode has two modes: automatic and manual one.

Language:English, Chinese,Spanish and Russian. The system is easy to operate and use.

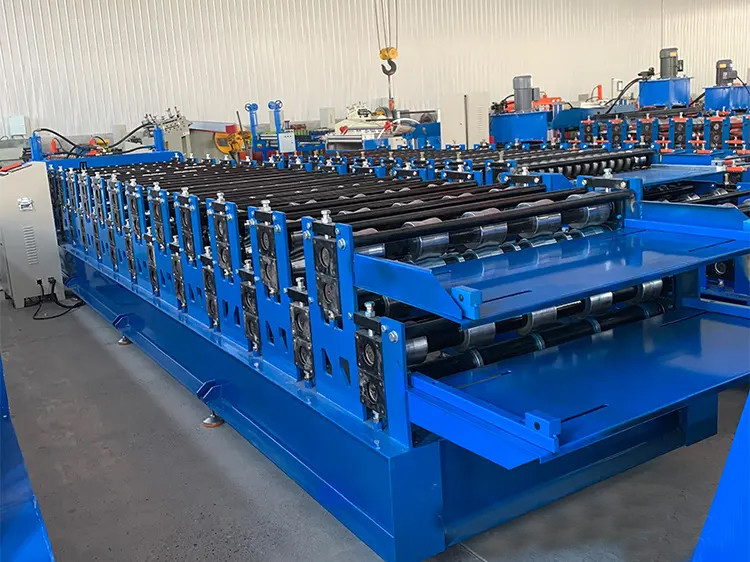

Forming system:

Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm

Cutting system:

Hydraulic cutting file bit

cutting knife material: Cr12

Kind of drive:

The average transmission ratio of the chain drive is accurate, the work is reliable and the efficiency is high; the transmission power is large and the overload capacity is strong.

The plate produced has a flat and beautiful appearance, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, theaters, etc. House surfaces and walls.

Specification

Total power	11 – 18kw
Speed	4 – 10m/min
Dimension (LxWxH)	(8-11)x(1.6-2.2)x1.8m
Weight of machine	5 – 8 tons
Roller station	12 – 20
Material thickness	0.15 – 0.5mm (G300-G550)
Material width	914;1200;1219;1450mm

Advantage

The metal system is accurate and solid, and will not move over time or with changes in temperature.
There is a wide range of stud widths from 50mm to 146mm to meet varying requirements.
It is a fast and clean system to erect that allows services to pass through easily.
All sections fit together easily and door frames are formed very simply.

Payment terms

30% in advance as down payment

70% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
