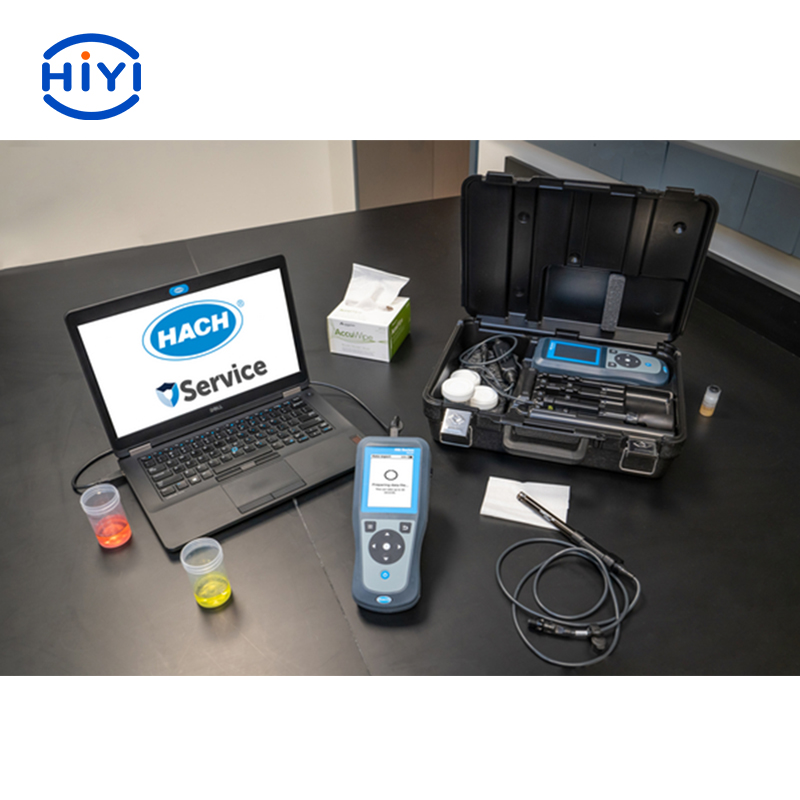

HQ4100 Three Input Series Portable Multi Meter IP67 Robustness Rating

HQ4100 Portable Multi-Meter

OVERVIEW

Deliver your daily activity in just a few clicks:
Whether you are at your facility or working in the field, the Hach® HQ Series portable meter ensures your data will be safely transferred via USB.

Performing a successful calibration has never been so simple:
Most measuring issues are due to incorrect calibration procedures. With our illustrated, step-by-step on-screen calibration and troubleshooting procedures, water quality professionals can succeed every time.

FEATURES

The HQ Series is for water quality professionals who want to perform electrochemical analysis for field and lab environments. Our new portable platform will allow you to collect intuitive, accurate measurements, manage data, and easily review results, while supplying an IP67 robustness rating.
They provide a true rugged, field-ready solution with on-screen, visual step-by-step operating guidance that provides users with confidence in reporting and managing their results. Unlike other field meters with basic user interfaces and without easily accessible data, the HQ Series secures, simplifies, and accelerates the complete measurement process for field users.

SPECIFICATION

Accessories Included	USB charger, power cable, and clips
Automatic Buffer Recognition	Yes
Backlight	Yes
Barometric Pressure Measurement	Automatic compensation of DO when using an LDO or LBOD probe
Calibration	Demal (1D/ 0.1D/ 0.01D); Molar (0.1M/ 0.01M/0.001M); NaCl (0.05%; 25µS/cm; 1000µS/cm; 18mS/cm); Standard sea water; User defined
Calibration Intervals/Alerts/Reminder	Off, selectable from 2 hours to 7 days
Certifications	CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
Conductivity Measurement Range	Yes
Custom Calibration Standards	Yes
Data Export	USB connection to PC or USB storage device (limited to the storage device capacity).
Data Memory	100,000 data points
Data Storage	Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode.
Dimensions (H x W x D)	63 mm x 97 mm x 220 mm
Display	Up to 3 parameters at a time, dependent on HQ model
Display Type	640x480 Color TFT
DO Measurement Range	0.1 - 20.0 mg/L (ppm), 1 - 200% saturation
DO Resolution	0.1
Enclosure Rating	IP67 (with battery compartment installed)
GLP Features	Date; Time; Sample ID; Operator ID, Calibration
Inputs	1
Instrument	Portable
ISE Direct Measurement Range	Yes
ISE Electrode Calibration	Yes
Kit?	Meter only
Languages	English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian
Lock Function	Continuous / Auto-stabilization ("press to read") / At Interval
Measurement Method	Probe specific programmed method settings
Model	HQ4100 Multi/ISE/1 Channel
mV Measurement at Stable Reading	Yes
mV Measurement Range	Yes
mV Resolution	0.1 mV
Operating Error Messages	Clear text error messages displayed
Operating Humidity	90% (non-condensing)
Operating Interface	Soft Touch Keypad
Operating Temperature	0 - 60 °C
ORP Electrode Calibration	Predefined ORP standards (including Zobell's solution)
Parameter	pH, Conductivity, TDS, Salinity, Dissolved Oxygen (DO), ORP, ISE
pH Buffer Sets	Colour-coded: 4.01, 7.00, 10.01 pH; IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45 DIN: 1.09, 4.65, 9.23 User-defined custom buffer sets
pH Electrode calibration	1 - 3 Calibration points Calibration summary data logged and displayed
pH Measurement Range	0 - 14 pH
pH Resolution	Selectable: 0.001/0.01/0.1 pH
Power Supply	Rechargeable lithium-ion battery 18650 (internal) Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external)
Probe Type	Intellical Standard Laboratory or Rugged Field
Probes included	None
Protection Class	IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external
Salinity Measurement Range	0 - 42 (ppt) (‰)
Salinity Resolution	0.01 (ppt) (‰)
Sensor A	None
Sensor B	None
Sensor C	None
Storage Conditions	-20 - 60 °C, max. 90% relative humidity (non-condensing)
TDS Measurement Range	0.00 mg/L - 50.0 g/L NaCl
TDS Resolution	0.01 mg/L - 0.1 g/L upon measuring range
Temperature Compensation	Automatic Temperature compensation for pH
Temperature Measurement	°C or °F
Temperature Resolution	0.1 °C
Type of measurement	Field Measurements
Weight	530 g (Meter only)
What's included?	HQ4100 Portable pH/ORP/EC/TDS/DO/ISE Multi-Meter, 1 channel, includes manuals, Li-Ion batteries, USB charger with cable for USA.

Product Tags:


*From:	Your email address is incorrect!
*To:	Beijing HiYi Technology Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Water Quality Analyzer
Brand Name:	HiYi
Model Number:	HQ4100
Certification:	CE, ISO13485, ISO9001
Place of Origin:	China
MOQ:	1
Supply Ability:	1000 set/month
Delivery Time:	3-7 days
Packaging Details:	paper carton
Certifications:	CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS
Display Type:	640x480 Color TFT
Data Memory:	100,000 data points
Model:	HQ4100 Multi/ISE/1 Channel
Dimensions (H x W x D):	63 mm x 97 mm x 220 mm
Weight:	530g (Meter only)
