| Categories | Ic Integrated Circuit |
|---|---|
| Brand Name: | TI |

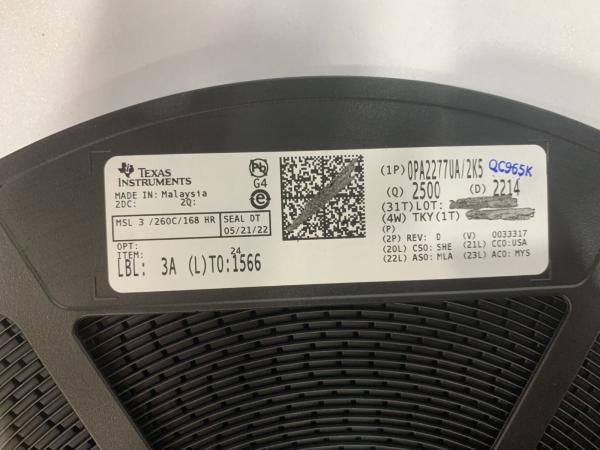

| Model Number: | OPA2277UA |
| Place of Origin: | original |
| MOQ: | 1pcs |
| Supply Ability: | 27030pcs |
| Delivery Time: | 3 |
| Packaging Details: | 2500 |
| quality：: | Brand new unused |
| Package / box:: | SOP8 |
| Stock: | 8000+ |
| Price: | Negotiate |
| Company Info. |
| HK LIANYIXIN INDUSTRIAL CO., LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
The configuration of this general purpose amplifier OPA2277UA OP amp allows it to take on a variety of different behaviors and characteristics with external components such as resistors, capacitors and inductors. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±2 V and maximum of ±18 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 channels per chip. This device is made with bipolar technology. This device uses dual power supplies.
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| HTS | 8542.33.00.01 |
| Automotive | No |
| PPAP | No |
| Type | Low Offset Voltage Amplifier |
| Manufacturer Type | Low Offset Voltage Amplifier |
| Number of Channels per Chip | 2 |
| Maximum Input Offset Voltage (mV) | 0.05@±15V |
| Minimum Single Supply Voltage (V) | 4 |
| Maximum Single Supply Voltage (V) | 36 |
| Minimum Dual Supply Voltage (V) | ±2 |
| Typical Dual Supply Voltage (V) | ±15 |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Offset Current (uA) | 0.0028@±15V |
| Maximum Input Bias Current (uA) | 0.0028@±15V |
| Maximum Quiescent Current (mA) | 1.65@±15V |
| Power Supply Type | Single|Dual |
| Typical Slew Rate (V/us) | 0.8@±15V |
| Typical Input Noise Voltage Density (nV/rtHz) | 12@±15V |
| Typical Voltage Gain (dB) | 140 |
| Typical Noninverting Input Current Noise Density (pA/rtHz) | 0.2@±15V |
| Minimum CMRR (dB) | 115 |
| Minimum CMRR Range (dB) | >=115 |
| Typical Gain Bandwidth Product (MHz) | 1 |
| Typical Settling Time (ns) | 16000 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Packaging | Tube |
| Mounting | Surface Mount |
| Package Height | 1.5(Max) |
| Package Width | 3.98(Max) |
| Package Length | 5(Max) |
| PCB changed | 8 |
| Standard Package Name | SO |
| Supplier Package | SOIC |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
|
