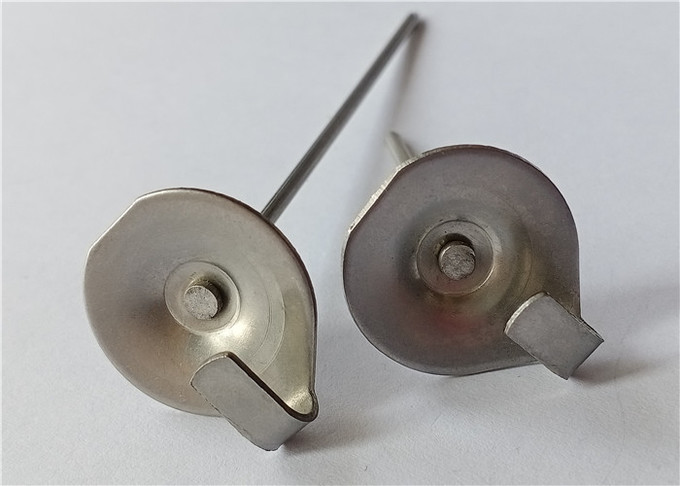

14 Gauge Stainless Steel Lacing Hook Anchors For The Fabrication Of Thermal Insulation Products

Quick Details Of The 14 Gauge Stainless Steel Lacing Hook Anchors:

14 Gauge Stainless Steel Lacing Hook Anchors are used for such thermal insulation products,

such as expansion joints and removable/reusable thermal insulation blankets.

Item: 14 Gauge Stainless Steel Lacing Hook Anchors For The Fabrication Of Thermal Insulation Products Manufacture: Xiangyi Parts Material: Stainless Steel Head Thickness: 1.0mm Head Diameter: 22mm Hook Size: 5x11mm Hook Thickness: 1.0mm Pin Diameter: 2.0mm (other diamter also available) Pin Length: 63.5mm (other length also available) Self Locking Washer Material: Stainless Steel Self Locking Washer Size: 25mm

Specifications Of Stainless Steel Lacing Hook Anchors For Thermal Insulation Products:

1. Stainless steel is a popular material while this lacing hook anchors is also made in mild steel.

2. Stamped "no ab" to denote 'no asbestos'.

3. The tabbed head is about 7/8" (22mm) diameter or 1-1/5" (30mm) diameter.

4. The nail can be 12 gauge (2.7mm) or 14 gauge (2.0mm) or others in pin diameter.

5. 2-1/2" (63mm )& 4-1/2" (114mm) are standard pin length

6. Typical application is for the fabrication of removable insulation blankets or covers of pads.

Origin	Hebei, China
Factory	Xiangyi Metal Products Co.,Ltd
Name	Stainless Steel Lacing Hook Anchors With Self-locking Washers
Material	stainless steel
Head	one side is stamped with "A" "B"
Head Type	round or rectangle
Head Size	22mm, 30mm,
Head Thickness	1mm
Hook Size	5mmx11mm or 5mmx15mm
Pin Diameter	2mm, 2.7mm etc.
Pin Length	63.5mm, 114mm etc.
Self-locking Washer Size	25mm etc.
Self-locking Washer Thickness	0.4mm etc.
Self-locking Washer Material	stainless steel

Related Products Of Stainless Steel Lacing Hook Anchors For Thermal Insulation Products:

	Item: Stainless Steel Lacing Washers Material: Stainless Steel Diameter: 1" / 25mm Thickness: 1mm Type: With two 3/16" / 5mm hole in the center
	Item: Stainless Steel Lacing Hook Washers Material: Stainless Steel Diameter: 7/8" / 22mm Thickness: 1mm Type: With one 3/16" / 5mm hole in the center Hook Size: 5x11mm
	Item: Stainless Steel Lacing Anchor Washers Material: Stainless Steel Diameter: 7/8" / 22mm Thickness: 1mm Type: With two 3/16" / 5mm hole in the center Hook Size: 5x11mm

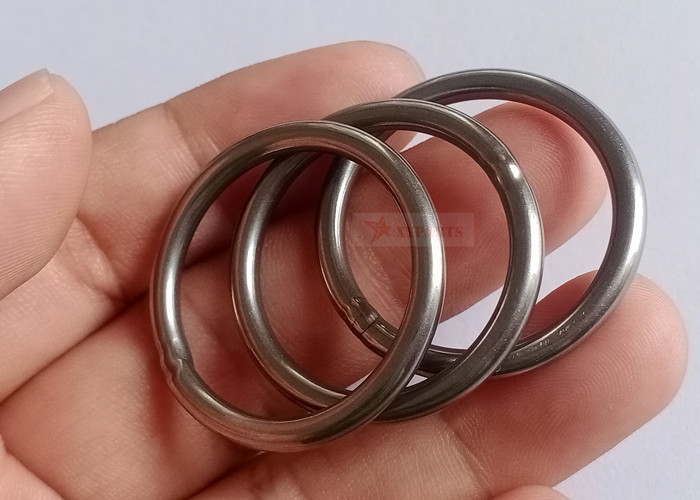

	Item: Stainless Steel Lacing Rings Material: Stainless Steel Ring Diameter: 30mm Wire Diameter: 3mm
	Item: Stainless Steel Lacing Rings Material: Stainless Steel Ring Diameter: 25x30mm Wire Diameter: 1mm

FAQ Of Xiangyi Parts:

1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.

3. Can i get samples?
Yes, samples for quality confirm are supported.

4. Can you accept small orders?

Yes, for common material and size, we accept small orders.

5. How do you control and ensure product quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

6. Advantage Of Xiangyi Parts.

Cooperate with us, we can ensure:

1) Competitive price: we sale what we manufacture.

2) On-time delivery: we have the auto-production line to ensure the on-time delivery.

3) Excellent quality: we have rich experience, our products are in line with international standard.

4) Good after-sale service: we offer good after-sale service for each order.
