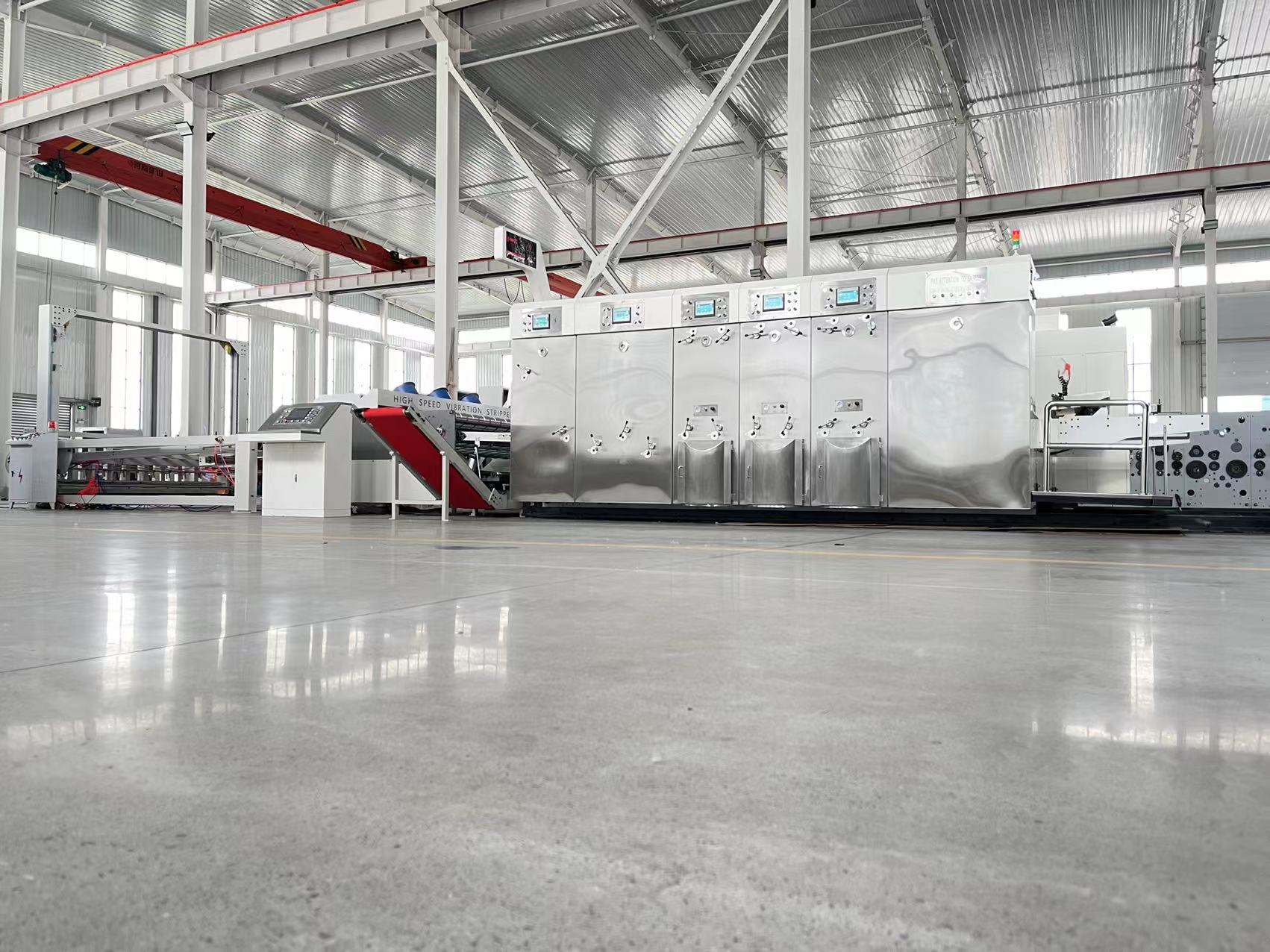

Corrugated Carton Machine Corrugated Board Printing Machine
Model:2200x4000 Jumbo
Machine Features:
1. Control on the main console and each unit console with display adjustment system, store repeated order, easy for operation.
2. Motorized plate mounting, auto reset, quick order change.
3. Each unit is equipped with emergency stop switch to ensure safe operation.
4. Using self-locking gap adjustment device for easy operation.
5. Transmission gears are made by precision and grinded alloy steel. The transmission system is equipped with spraying circulating lubrication system.
Standard equipments:
A. Independent Lead Edge Feeder;
B. printers
C. motorized slotter
D. Rotary Die Cutter with auto trimming device;
E. Auto Stacker
1.The Electrical components are used internationally famous
brands.Mainly control is adopted US servo numerical control
positioning technology.Feeding unit,printing unit, slotting
unit,die cutting unit are equipped with colorful PLC touch screen,
with one touch machining setting with zero function can be
connected to ERP system
2. The machine with order memory,easy to change the order
3. With ink shortage alarm to avoid the wastage.
4. In particular with computer remote maintenance;more easier to
resolve equipment failure, more efficiency and reduce the cost
maintenance
| Model | 1600x3600 jumbo | 1800x4200 jumbo | 1800x3600jumbo | 2200*3600 jumbo | 2200*4000 jumbo | 2200*4600 jumbo | 2600*3600 jumbo |
| Machine Speed(m/min) | 150 | 150 | 150 | 120 | 100 | 80 | 80 |
| Machine Max.speed (pcs/min) | 110 | 100 | 100 | 100 | 80 | 60 | 60 |
| Machine Max.feeder Size(mm) | 1500x3600 | 1700x4200 | 188x3600 | 2000x3600 | 2100x4000 | 2100x4600 | 2500x3600 |
| Machine min.feeder Size(mm) | 450x760 | 450x750 | 450x760 | 550x900 | 550x900 | 550x900 | 650x900 |
| Machine Max. printer size (mm) | 1500x3500 | 1600x4000 | 1600x33400 | 2000x3400 | 2000x3800 | 2000x4200 | 2400x3400 |
| thick of printer Plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Max. slotter Dep (mm) | 560 | 750 | 750 | 750 | 750 | 750 | 850 |
| Max. Thickness of Sheet(mm) | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Machine size (LxWxH) | 19852x6670x2700 | 15000x5200x2500 | 14000x4500x2300 | 20173x6670x2800 | 20173x7070x2800 | 20173x7670x2800 | 20495x6670x3000 |
Features of slotting unit
Features for Rotary Die Cutting Unit
| Item | Features |
1. Die cutting mould cylinder( Down cylinder) | 1. Die cutting cylinder is made by high quality steel, fine grinding, hard chromed. 2. Balance treatment to increase stable running. 3. Die cutting mould fixation screws M10, hole distance at 100mm at transversal direction and 18 equal units at circumferential direction. 4. Die cutting wooden mould thickness 13-15mm(five ply), 16-18mm(three ply). |
2. Rubber mat cylinder(Down cylinder) | 1. Mat cylinder uses high quality steel, grinding, hard chromed. 2. Balance treatment for stable running. 3. Rubber mat thickness 8mm, width 250mm. 4. Rubber mat cylinder mechanical rotary direction change 40mm distance movement structure, movement speed same as the machine running speed. 5. Manual adjustment of die cutting mould gap, adjustment range: 0-16mm. |
| 3. Phase adjustment device | 1. Satellite gearwheel structure 2. PLC and encoder control of die cutting phase adjustment for start and stop adjustment. |
|
