| Categories | Wire Mesh Filter Element |
|---|---|
| Brand Name: | TIANHAO |
| Model Number: | TH-filter discs |
| Certification: | ISO |
| Place of Origin: | HEBEI |
| MOQ: | 1 piece |
| Price: | Price will be offered to you once get your detailed specification. |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000PIECES/DAY |
| Delivery Time: | In stock, within 3-5 work days, no stock, 15-20work days. If have mold, 10-15days, if no mold, 20-30days. |
| Packaging Details: | 1.inside use plastic bag packed/or plastic bags, 2.Outside use carton box, 3.Then to wooden case which strong enough for long distance transportation. 4.Also we can as per your requirements. |
| Products Name: | Wire mesh Filter Disc and Packs |
| material: | Stainless steel Nickel mateiral brass and other alloy |
| Filter Mesh type: | Woven mesh, welded mesh, expanded mesh |
| Usage: | filtering |
| Festure: | Super character for filtering |
| Sample: | Available |
| Service we offer: | Customized, sample available |
| Disc shape: | Round, square, ring and slot etc.. |
Wire mesh Filter Disc and Packs, Stainless steel Nickel material discs filters
| materials | stainless steel wire mesh |
| weave | plain weave, twill weave, dutch weave |
| edge material | stainless steel sheet, copper sheet, galvanized sheet,aluminium sheet, rubber etc |
| structure | single layer, double layer and multi-layers |
| out diameter | usually 5mm--600mm |
| process technique | spot welded, edge covering and sintered |
| used | used in distillation, absorption, evaporation and filtration process of rubber, plastic industry, the screening of grain and oil, petroleum, chemical industry, light industry, medicine, metallurgy, machinery, shipbuilding and other industries. Can be used as air filter for car. |
Wire mesh disc is mainly used in the following fields:
1. Chemical products
2. Foodstuffs and spices (milk powder, coffee, tea, rice, grains)
3. Stones and powders (minerals, diamond sizing, ores, alumina)
4. Pharmaceutical products
5. Boards and fixing plates (dividing shavings and wadding)
6. Paper (sieving wood shavings, preparation of coatings)
7. Metal powders (Precision sieving of metal powders)
8. Rubber
9. Animal feedstuffs (dedusting pellets, sieving crumbs, molasses
based foodstuffs) 10.Fertilisers (phosphates, potash, urea, mixed
fertilisers)
11. Sugar and salt (sizing)
12. plastic Recycling
Features
Application:
It is widely used in filtering of gas and liquid, separating of other medium, Besides, also applied in the field of petroleum, chemical industry, chemical fiber, rubber production, metallurgy, medicine and food industry.
Mesh sizees that could be used for the filter disc
| Items | Mesh | Wire Diameter (mm) | Aperture (mm) | Material (AISI) |
|---|---|---|---|---|
| SSPW01 | 7 × 7 | 1.00 | 2.63 | SUS304 SUS316 |
| SSPW02 | 10 × 10 | 0.60 | 1.94 | |
| SSPW03 | 12 × 12 | 0.50 | 1.62 | |
| SSPW04 | 16 × 16 | 0.40 | 1.19 | |
| SSPW05 | 16 × 16 | 0.35 | 1.24 | |
| SSPW06 | 18 × 18 | 0.35 | 1.06 | |
| SSPW07 | 20 × 20 | 0.40 | 0.87 | |
| SSPW08 | 24 × 24 | 0.26 | 0.80 | |
| SSPW09 | 30 × 30 | 0.30 | 0.55 | |
| SSPW10 | 35 × 35 | 0.17 | 0.56 | |
| SSPW11 | 40 × 40 | 0.23 | 0.40 | |
| SSPW12 | 50 × 50 | 0.20 | 0.31 | |
| SSPW13 | 60 × 60 | 0.15 | 0.27 | |
| SSPW14 | 70 × 70 | 0.12 | 0.24 | |
| SSPW15 | 80 × 80 | 0.13 | 0.19 | |
| SSPW16 | 90 × 90 | 0.12 | 0.16 | |
| SSPW17 | 100 × 100 | 0.10 | 0.15 | |
| SSPW18 | 120 × 120 | 0.09 | 0.12 | |
| SSPW19 | 150 × 150 | 0.063 | 0.11 | |
| SSPW20 | 180 × 180 | 0.053 | 0.09 | |
| SSPW21 | 200 × 200 | 0.053 | 0.07 |
| Items | Mesh | Wire Diameter. (mm) | Aperture (mm) | Material (AISI) |
|---|---|---|---|---|
| SSTW01 | 250 × 250 | 0.040 | 0.063 | SUS316 |
| SSTW02 | 300 × 300 | 0.040 | 0.044 | |
| SSTW03 | 325 × 325 | 0.035 | 0.043 | SUS316L |
| SSTW04 | 350 × 350 | 0.030 | 0.042 | |
| SSTW05 | 400 × 400 | 0.030 | 0.033 | |
| SSTW06 | 450 × 450 | 0.028 | 0.028 | |
| SSTW07 | 500 × 500 | 0.025 | 0.026 |
| Items | Mesh | Wire Diameter (mm) | Material (AISI) |
|---|---|---|---|
| SSDW01 | 12 × 64 | 0.58 × 0.40 | SUS304 or SUS316 |
| SSDW02 | 24 × 110 | 0.36 × 0.25 | |
| SSDW03 | 14 × 88 | 0.50 × 0.33 | |
| SSDW04 | 30 × 150 | 0.23 × 0.18 | |
| SSDW05 | 40 × 200 | 0.18 × 0.13 | |
| SSDW06 | 50 × 250 | 0.14 × 0.11 | |
| SSDW07 | 80 × 700 | 0.10 × 0.08 | |
| SSDW08 | 165 × 800 | 0.071 × 0.040 | |
| SSDW09 | 165 × 1400 | 0.06 × 0.04 | |
| SSDW10 | 200 × 1800 | 0.05 × 0.032 | |
| SSDW11 | 825 × 2300 | 0.035 × 0.025 | SUS316L |
| SSDW12 | 400 × 2800 | 0.030 × 0.02 |

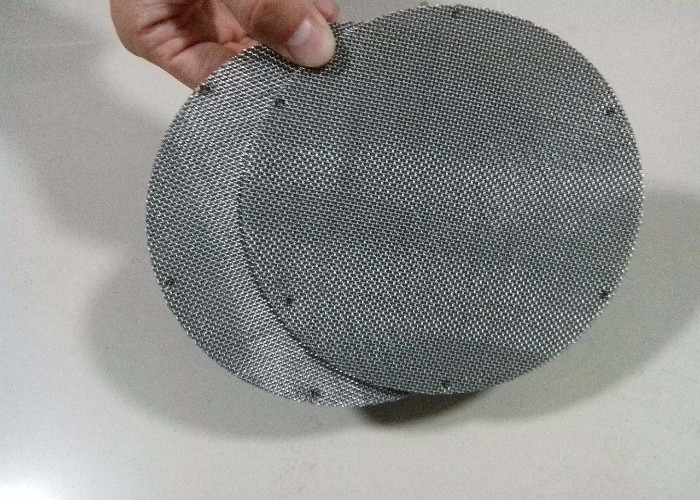

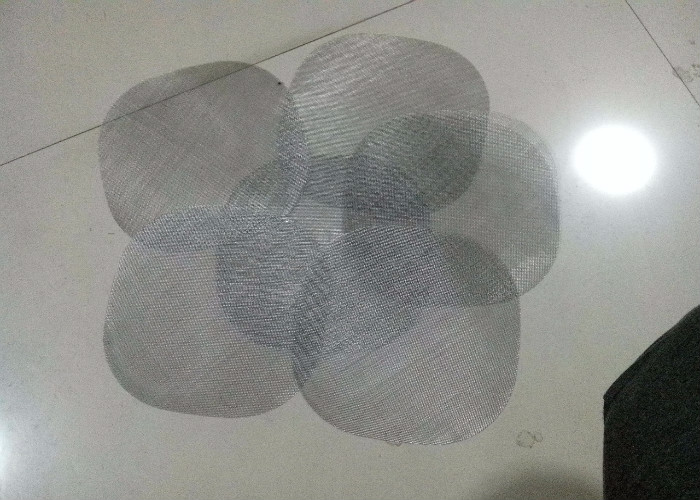

Products pics
|
