Vertex Series Trina Solar Panel Bifacial 660w 665w Solar Monocrystalline Panel With TUV

Categories Trina Solar Panel
Model Number: TSM-DEG21C.20
Place of Origin: Jiangsu, China
MOQ: 30pcs
Price: To be negotiated
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200000 Watt/Watts per Week
Delivery Time: To be negotiated
Packaging Details: pallet
Brand Name: TSM-DEG21C.20
Certification: CGC,ISO9001:2015,TUV SUD,PV,CNAS,
Material: Monocrystalline Silicon
Cell size: 210mmx210mm
Panel Efficiency: 21.4%
Panel Dimensions: 2384*1303*33 mm
Type: PERC, Half Cell
Certificate: TUV/CE
Encapsulant material: EVA/POE
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Vertex Series Trina Solar Panel Bifacial 660w 665w Solar Monocrystalline Panel With TUV

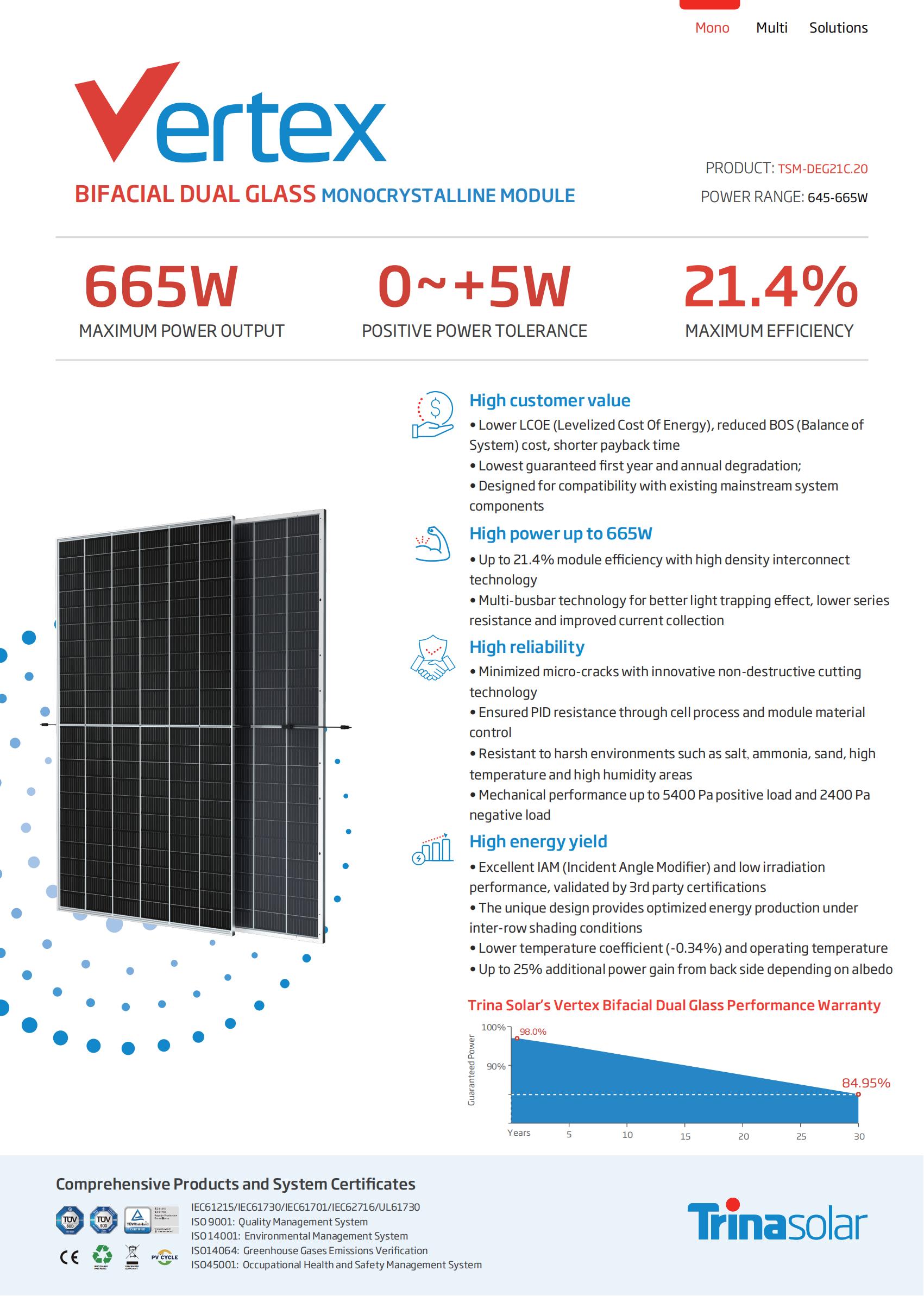

Solar PowerTrina Vertex Series Solar Modules Mono Bifacial Double Glass 645w 650w 655w 660w 665w Solar Panels With TUV

Aesthetically, mono facial solar panels offer a sleek and modern appearance due to their uniform black color, which is a result of the single crystal structure. This visual appeal can be an important factor for those who want their solar panels to blend seamlessly with their property's design and contribute to its overall aesthetic value.


Based on the 210mm large-size silicon wafer and monocrystalline PERC cell, the Vertex comes with several innovative design features allowing high power output of more than 600W. Excellent temperature coefficient and low irradiation performance brings the greater power. Furthermore, benefit from square mono cells and high-density encapsulation technology, the efficiency of Vertex can reach up to 21.4%.


➤ Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
➤ Lowest guaranteed first year and annual degradation;
➤ Designed for compatibility with existing mainstream system components

➤ Up to 21.4% module e-ciency with high density interconnect technology
➤ Multi-busbar technology for better light trapping e_x001D_ect, lower series resistance and improved current collection
➤ Minimized micro-cracks with innovative non-destructive cutting technology
➤ Ensured PID resistance through cell process and module material control
➤ Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
➤ Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load

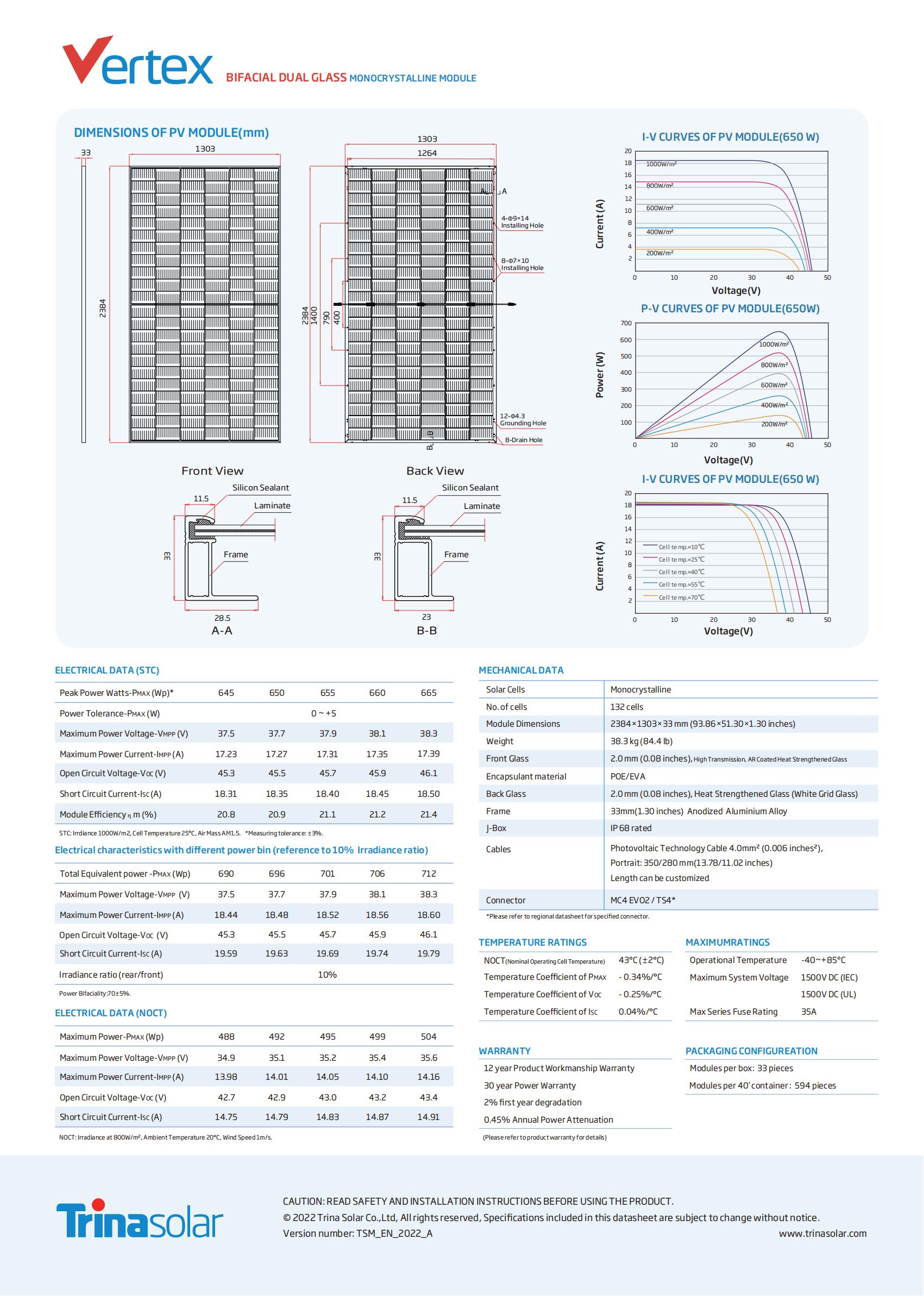

Model No.645650655660665
Warranty
Product Warranty12 Years
Power Warranty30 Years of 85% Output Power
Electrical Data at STC
Maximum Power (Pmax)645 Wp650 Wp655 Wp660 Wp665 Wp
Voltage at Maximum Power (Vmpp)37.5 V37.7 V37.9 V38.1 V38.3 V
Current at Maximum Power (Impp)17.23 A17.27 A17.31 A17.35 A17.39 A
Open Circuit Voltage (Voc)45.3 V45.5 V45.7 V45.9 V46.1 V
Short Circuit Current (Isc)18.31 A18.35 A18.4 A18.45 A18.5 A
Panel Efficiency20.80%20.90%21.10%21.20%21.40%
Power Tolerance (Positive)1%1%1%1%1%
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)488 Wp492 Wp495 Wp499 Wp504 Wp
Voltage at Maximum Power (Vmpp)34.9 V35.1 V35.2 V35.4 V35.6 V
Current at Maximum Power (Impp)13.98 A14.01 A14.05 A14.1 A14.16 A
Open Circuit Voltage (Voc)42.7 V42.9 V43 V43.2 V43.4 V
Short Circuit Current (Isc)14.75 A14.79 A14.83 A14.87 A14.91 A
Temperature43±2 °C
Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range40~85 °C
Temperature Coefficient of Pmax0.34 %/°C
Temperature Coefficient of Voc0.25 %/°C
Temperature Coefficient of Isc0.04 %/°C
Maximum Ratings
Maximum System Voltage1500 V
Series Fuse Rating35 A
Material Data
Panel Dimension (H/W/D)2384x1303x35 mm
Weight38.7 kg
Cell TypeBifacial
Cell Number132
Glass TypeAnti-reflection Coating, Tempered
Glass Thickness2 mm
Encapsulant TypeEVA
Frame TypeAnodized Aluminium Alloy
Junction Box Protection ClassIP 68
Connector TypeMC4
Cable Crossection4 mm2


➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting technology
➤Ensured PID resistance through cell process and module material control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load
