General

sollis inverter energy meter ACR10R16DTE4 three phase energy meter is suitable for energy-saving renovation projects in high energy consumption industries such as smelting, steel, electric welding, semiconductor, etc. It is also suitable for power monitoring of distributed photovoltaic grid-connected cabinets, power demand side management and other applications .

Technical parameter

Features

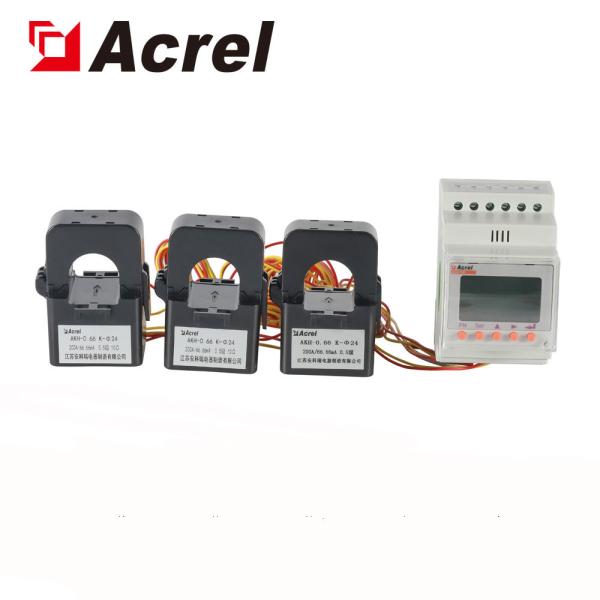

sollis inverter energy meter ACR10R16DTE4 three phase energy meter

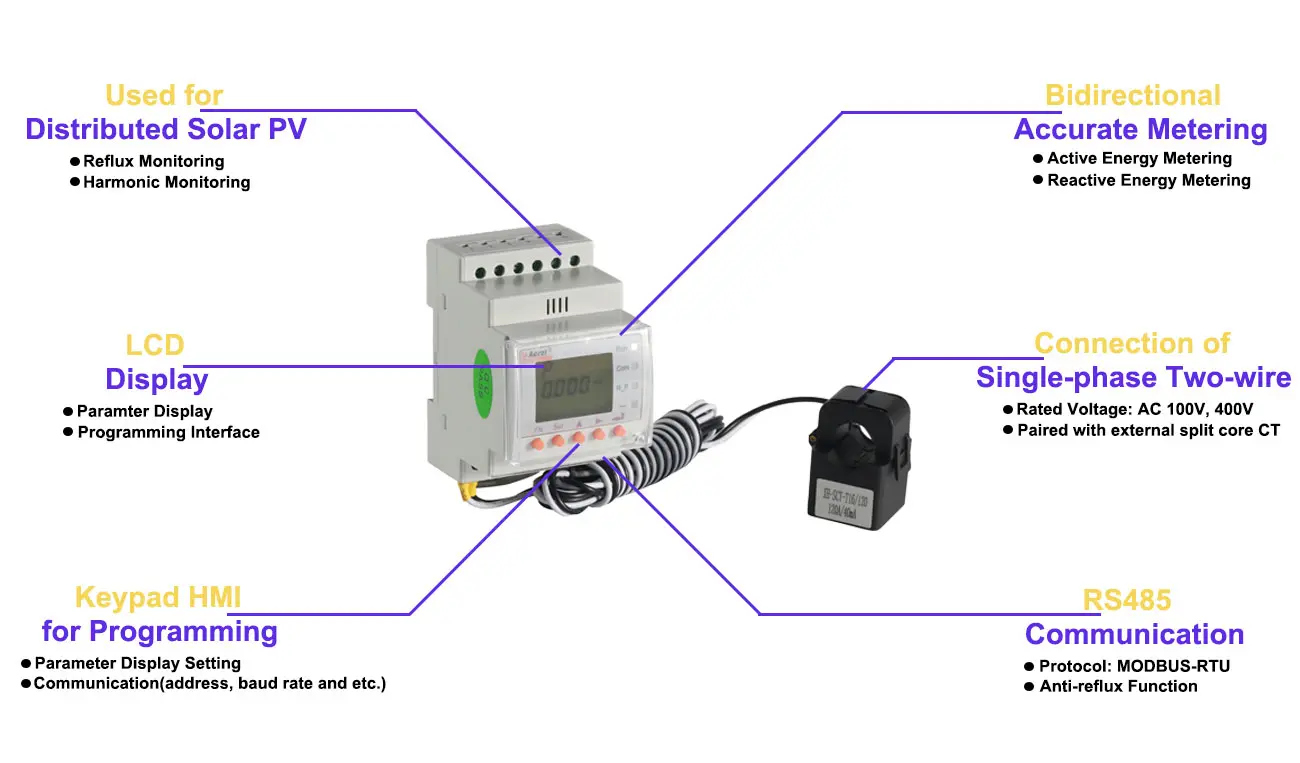

Used for distributed&centralized Solar PV ● Rogowski Coil for Centralized Solar PV ● Split-core CTs for Distributed Solar PV ● Reflux Monitoring ● Harmonic Monitoring

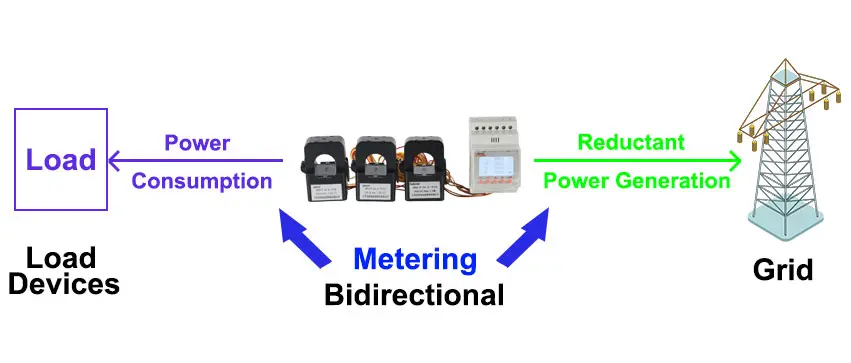

Bidirectional Power Metering ● Active Power Metering ● Reactive Power Metering

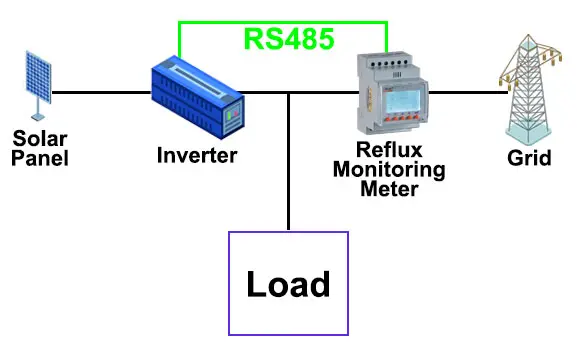

RS485 Communication ● MODBUS-RTU Protocol ● Communicate with Inverter to realize anti-reflux Function

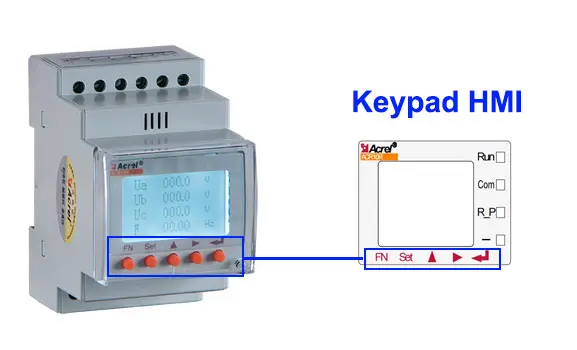

Keypads HMI for Programming ● Parameter Display Setting ● Communication(address, baud rate and etc.) ● Wiring: 3P3W,3P4W

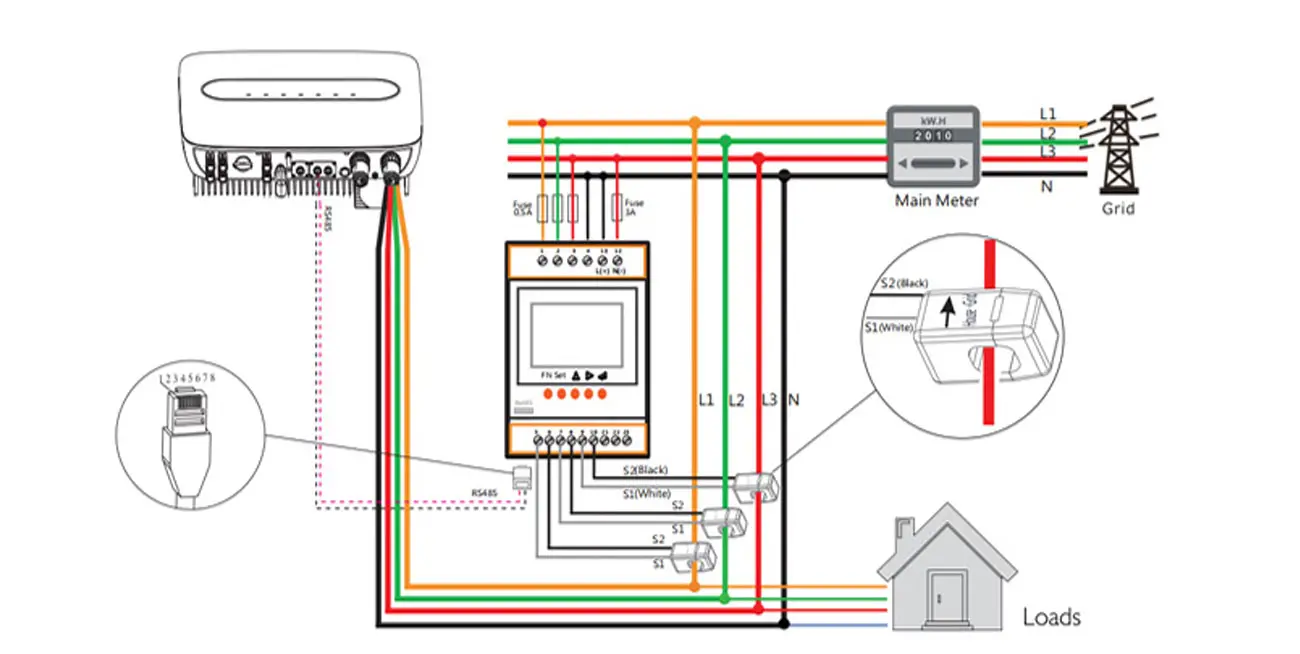

Wiring

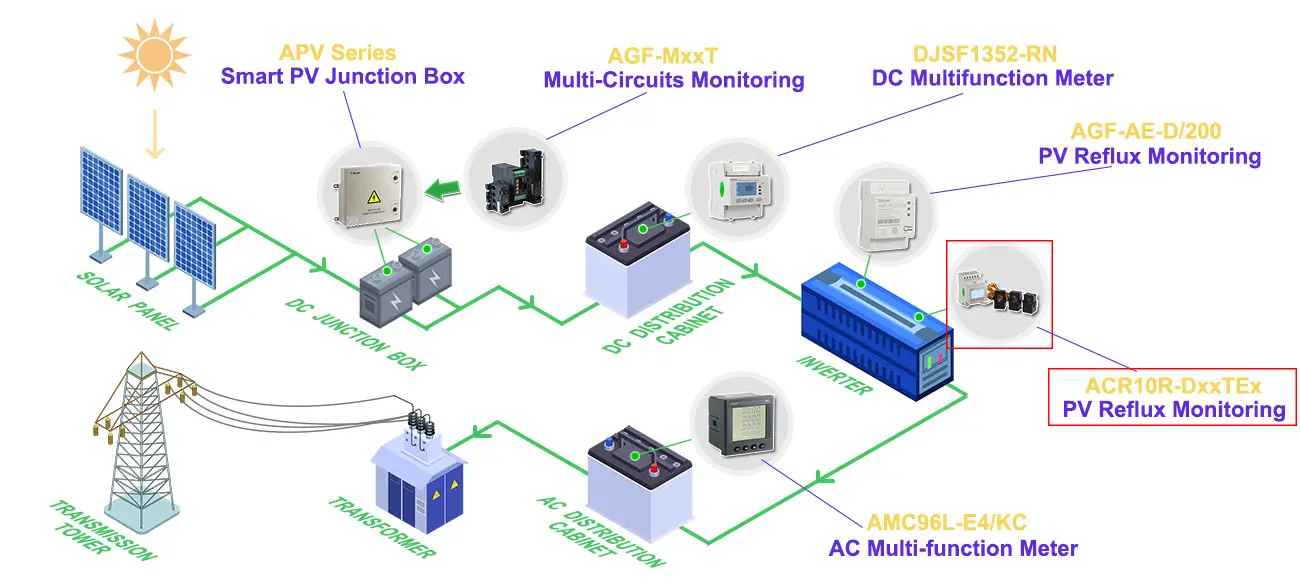

Application

Contact me

Jiangsu Acrel Electrical Manufacturing Co., LTD, located in Jiangyin City,Jiangsu Province,which is a wholly-owned subsidiary of Acrel Co., Ltd.[stockcode :300286.SZ]. It is a high-tech enterprise in Jiangsu Province and a pioneer enterprise integrates the informatization and industrialization of Jiangsu province.

In June 2006, the first phase of Jiangsu Acrel factory was completed and put into use, covering an area of 10,000 square meters. In March 2010, the workshop was upgraded to improve the production environment. In November 2014, the second phase of the workshop was completed and put into use, covering an area of 35,000 square meters.

In October 2018, the new plant,Jiangsu Acrel Electrical Manufacturing Co., LTD, on No. 31 Hongtu Road, was completed and put into use, covering an area of 50,000 square meters. The company has an independent CNAS certified product testing center, which can carry out function and performance tests of power meters, measurement and control devices, as well as tests of environment, electromagnetic compatibility, safety, reliability and other products.

In the process of product design and development, manufacturing and service, the company strictly implements the ISO9001 quality management system standard to provide customers with reliable products and services.

The company uses the Group ERP system to carry out information management of the company's planning, procurement, production, storage, finance, personnel, etc., and uses the PLM system to standardize and effectively manage the company's design and improvement process.

MES process management system is for the whole production process for real-time information management, each process through scanning product bar code to collect information, automatic record, save production inspection data, the basic realization of paperless management, save production costs, improve management efficiency.

Acrel attaches great importance to technology research and development and scientific and technological innovation. By the end of 2020, Acrel has owned 5 trademarks, 18 invention patents, 70 utility model patents, 93 appearance patents, 147 computer software Copyrights, and participated in the formulation of many national and industrial standards.

Scope of business:The manufacturing of electricity meters (operating within the scope approved in the Manufacturing Instrument License); Network power meter, power sensors, relays, power quality control device, active filter unit, inverter, pv junction box, smart motor controller, medical clean power cabinet, low-voltage switchgear, communications cabinets, medium voltage protection, fire control electronics, semiconductor lighting, communication management machine, data collector manufacturing, research, development, marketing...
