222 Fin PFA Pleated Filter Cartridge With Perfluorinated Flat Gasket

Categories Pleated Filter Cartridge
Brand Name: LENGE
Model Number: LENGE-PFA
Certification: CE/SGS/ISO/FDA
Place of Origin: China
MOQ: 1 PCS
Price: USD 20-30 / PCS
Payment Terms: T/T, L/C
Supply Ability: 2000 Pieces Per Month
Delivery Time: 5 - 7 Days
Packaging Details: Cartons
Filter material: PTFE
Gasket Material: Silicon rubber, EPDM rubber, Fluorine rubber
Supports/Diversion: PFA
Length: 10” / 20” / 30” / 40”
Pore size: 0.1 / 0.22 / 0.45μm
Application: Chemical Industry , Electronics Industry , Pharmaceutical Industry
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

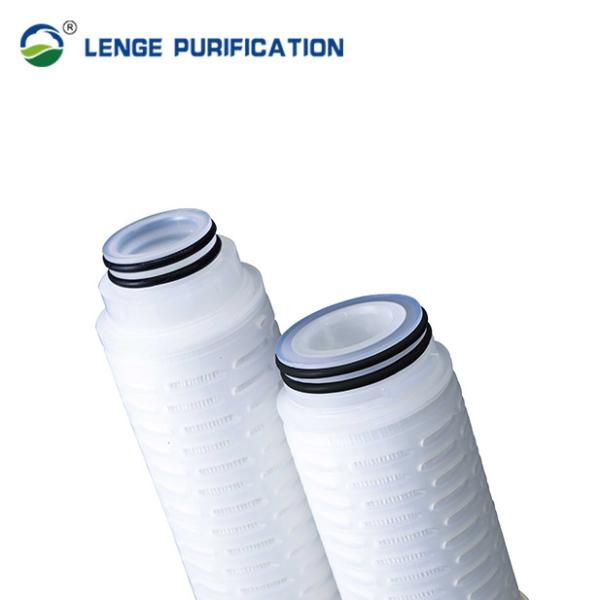

222 Fin PFA Pleated Filter Cartridge With Perfluorinated Flat Gasket

222 Fin PFA Pleated Filter Cartridge With Perfluorinated Flat Gasket:


PFA Pleated Filter Cartridge is made of polytetrafluoroethylene stretch membrane and PFA framework, which is characterized by high throughput, high flow rate, long life, excellent chemical compatibility and oxidation resistance. This filter cartridge is widely used in the filtration of various acids, alkalis, organic solvents and other chemicals in chemical filtration, and can meet the filtration requirements in most harsh environments.


Technical Specifications and Operating Parameters:


Size

Diameter: 2.75" (69 mm)

Length: 10", 20", 30", 40" etc.

Removal Ratings (µm)0.1, 0.22, 0.45
Filtration Area0.7m2 /Ø68-10"
Dissolution per 10" filter<30mg
Maximum Continuous Operating Temperature170°C
Maximum Differential Pressure

0.4MPa/50℃

0.15MPa/170℃

Endotoxin<0.25EU/ml

Ordering information:


1234567
PFA0.22---10ASP--X

1

Membrane



PTFE


2

Pore size



0.1 / 0.22 / 0.45 μm


3

Length



10” / 20” / 30” / 40”


4

Connector/End Cover

A/AA/B/BB/C/CC/D/E/EE/F



Spear+222

Spear+222adapter with encapsulated reinforcing stainless steel ring

Flat+222

Flat+222adapter with encapsulated reinforcing stainless steel ring

Spear+226

Spear+226adapter with encapsulated reinforcing stainless steel ring

Flat+Flat

Flat+226

Flat+226adapter with encapsulated reinforcing stainless steel ring

Flat+215

Spear+3 Flange Bayonet adapter


5

Gasket Material

S, E, F, FF



S: Silicon rubber

E: EPDM rubber

F: Fluorine rubber

FF: Encapsulated fluoroelastomer


6

Application



Pharmaceutical grade for bio-pharmaceutical&food and beverage industry


7

Special Specification Remarks



Standard Specification Default


Material of Filter Cartridge components:

Filter membrane: PTFE

Support/Drainage: PFA/ECTFE

Core/Cover/End cover/End caps: PFA

Sealed leads/Fins: 222, 226PFA

O-rings: Encapsulated fluoroelastomer, Perfluorinated flat gasket

Characteristics and Features:

  • Excellent high-temp resistance and extensive chemical compatibility.

  • Perfluoropolymer structure is suitable for filtration of various polar strong acids and bases.

  • Double membrane structure, absolute bacterial retention rate.

  • The samples of filter cartridges successfully passed the bacterial retention testing required by regulations, LRV>7. Integrity can be maintained after repeated high-pressure disinfection.

  • All the compositions meet the requirements of the biological testing characteristics of USP Class 6 plastic products at 121°C and the food contact materials listed in the relevant regulations of Chapter 21 of the Federal Regulations of the United States (CFR).

  • It is manufactured under ISO 9001 and ISO 14001 systems and Class 100 clean environment.

  • Production and usage are traceable.


Typical Application:

  • Ozone resistant filtration of bottled drinking water

  • Filtration of high temperature and highly corrosive chemicals in semiconductor manufacturing process

  • Filtration of various acids, alkalis, organic solvents and other chemicals

  • Filtration of etching, cleaning, photoresist, developer and other strong oxidizing liquid

Adapter Style:

PES membrane pleated filter cartridge Adapter Style
