Factory price 1x2,2x2 Polarization Maintaining Filter Coupler Wavelength 1310/1480/1550/1940/2000nm
Product Overview
The Polarization Maintaining Coupler is a micro optic filter type
device that provides optical signal splitting while preserving
polarization with high ER. The Polarization Maintaining Coupler is
available in a wide range of coupling ratio's from 1% to 50%, and
is also available in 1x2 and 2x2 types.
Product packaging
| finish product | inner box | box |
Application&Features
Applications | Features |
| Parameters | Unit | Values | ||||
| Type | / | 1x2 or 2x2 | ||||
| Center Wavelength | nm | 1310 | 1480 | 1550 | 1940 | 2000 |
| Operating Wavelength Range | nm | ±40 | ±40 | ±40 | ±40 | ±40 |
| Tap Coupling Ratio | % | 1±0.5%, 5±1.0%, 10±2.0%, and 50% | ||||
| Insertion Loss | dB | IL related to Coupling Ratio | ||||
| Excess Loss | dB | 1x2:≤0.7 ; 2x2:≤1.0 | 1x2:≤1.2 ; 2x2:≤1.5 | |||
| Uniformity(Only for 50/50) | dB | 1x2:≤0.4 ; 2x2:≤0.6 | 1x2:≤0.6 ; 2x2:≤0.8 | |||
| Extinction Ratio | dB | 1x2:≥20 ; 2x2:≥18 | 1x2:≥18 ; 2x2:≥17 | |||
| Return Loss | dB | ≥50 | ||||
| Max Power Handling (CW) | W | 0.5, 1, 2 or 5 | ||||
| Tensile Load | N | ≤5 | ||||
| Operating Temperature | ℃ | -5~+75 | ||||
| Storage Temperature | ℃ | -40~+85 | ||||
Note:1. Customization is available. The connector default slow axis
alignment key
Above specifications are for device without connector, If with
connector, IL will be 0.3dB higher, return loss with be reduce 5dB
and Extinction Ratio will reduce 2dB.
2.For >10W high power applications, we will use heat sink
package
3.If there is pulse application, please be sure to inform us of
pulse energy and peak power.

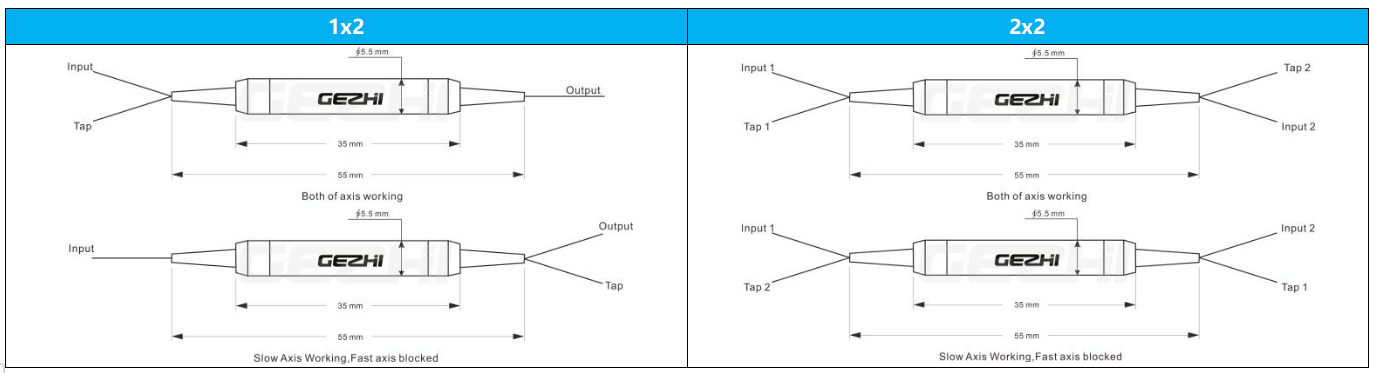

Dimensions
Ordering Information
PMFC-XXXX-XX-XX-X-XX-XX-XX-XX-XX-XX
| ①Wavelength: | 1310=1310nm; 1480=1480nm; 1550=1550nm; 1940=1940nm; 2000=2000nm; S=Specify |
| ②Configuration Type: | 12=1x2, 22=2x2 |
| ③Coupling Ratio: | 50=50/50; 40=40/60; 30=30/70; 20=:20/80; 10=10/90; 01=1/99; S=Specify |
| ④Working Axis: | B=Both axis workiing, F=Slow Axis Working,Fast axis blocked |
| ⑤Fiber Type: | PM1300; PM1550; PM1950; S=Specify |
| ⑥Power Handling: | 0L=0.5W; 01=1W; 02=2W |
| ⑦Package Dimensions: | S1=5.5x35mm; S=Specify |
| ⑧Pigtail Type: | 00=bare fiber; 09=900um loose tube |
| ⑨Fiber Length: | 08=0.8m; 10=1m; S=Specify |
| ⑩Connector Type: | FA=FC/APC; FP=FC/UPC; SA=SC/APC; SP=SC/UPC; S=Specify |
|
