| Categories | Fin Tube |
|---|---|
| Brand Name: | Yuhong Group |
| Place of Origin: | China |
| Fin Height: | Customized |
| Fin Pitch: | Customized |
| Application: | Heat Exchangers, Condensers, Evaporators, Boilers |
| Connection Type: | Welded, Threaded, Flanged |
| Material: | Aluminum, Copper, Carbon Steel, Stainless Steel, Alloy Steel |
| Tube Diameter: | Customized |
| Tube Length: | Customized |
| Tube Wall Thickness: | Customized |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

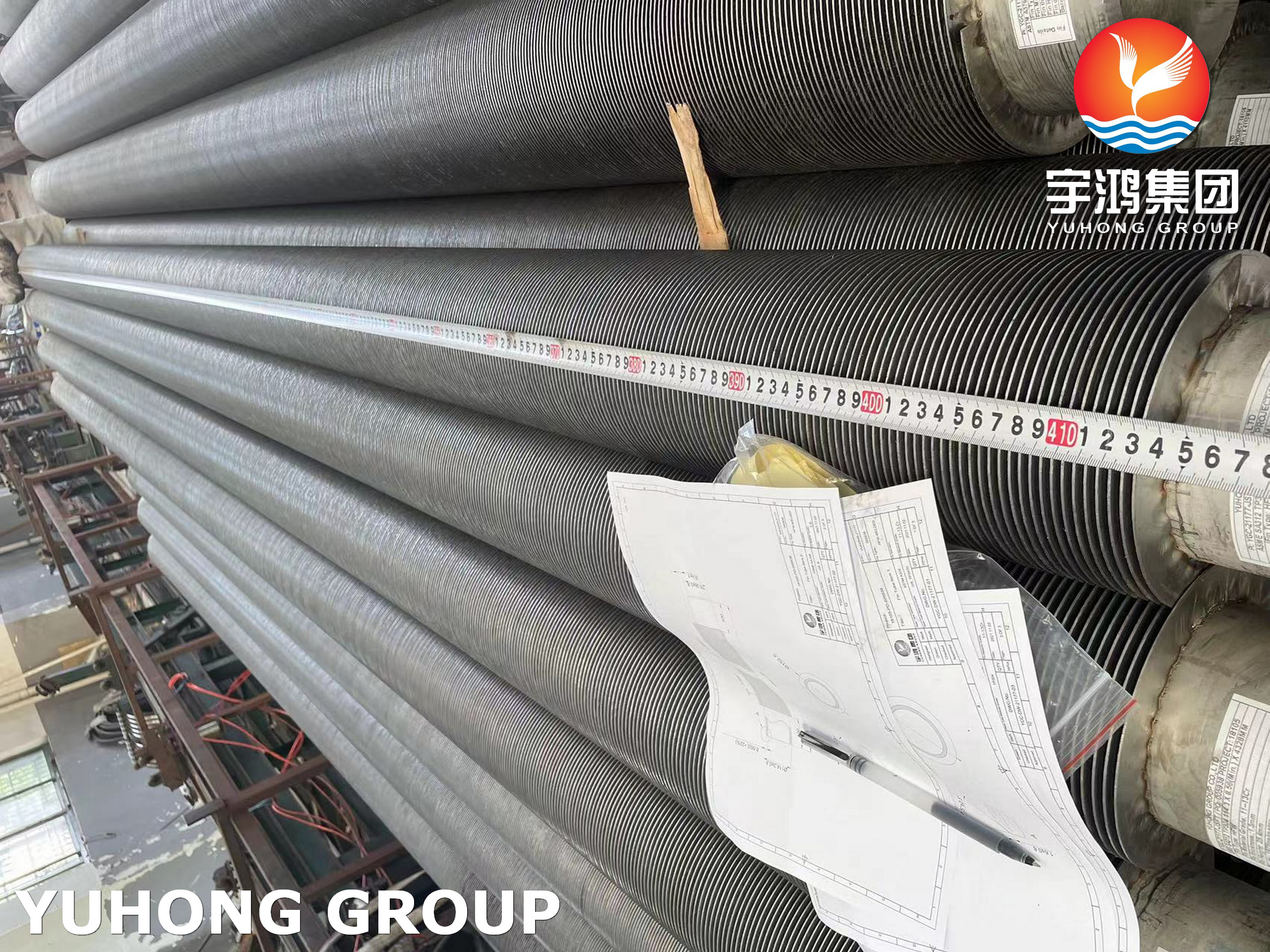

Stainless Steel Seamless Pipe ASTM A312 TP304L with 11Cr , 13Cr Solid Fin Tube.
HFW Solid Finned Tubes short for High Frequency Welded Helical Spiral Solid Finned Tube
Helical Finned Tubes provide the designer with high thermal
efficiency and compact design solutions for a whole range of heat
exchangers where clean flue gases are used. Helical finned Tubes
are manufactured in both Solid and Serrated type.
HFW Solid Finned Tube
This welded steel finned tube configuration can be used for any practically heat exchanger application, and is particularly suited to high temperature and high pressure applications. The important features of this configuration are efficient, effective bond of fin to tube under all conditions of temperature and pressure, and ability to withstand high fin-side temperatures.
| Fin Tube | |||||||||
| Base Tube Part | Fin Part | ||||||||
| Specification | Material Grade | Major Sizes | Material Grade | Fin Type | Fin Hight | Fin Thickness | Fin Qty | Fin Dia. | Bare Length |
| ASTM A213 ; ASME SA213; ASTM A249; ASME SA249; ASTM A269; ASME SA269; ASTM A312; ASME SA312; ASTM A376; ASME SA376; ASTM A789; ASME SA789; ASTM A790; ASME SA790 | TP304, TP304L, TP304H, TP310S, TP310H, TP316L, TP317L, TP321, TP321H, TP347, TP347H , S31803, S32205, S32750, S32760 | Tube Size: 15.875 X 1.65; 15.875 X 2.11; 15.875 X 2.77; 19.05 X 1.65; 19.05 X 2.11; 19.05 X 2.77; 25.4 X 2.11; 25.4 X 2.77; 25.4 X 3.05; 25.4 X 3.4; 31.75 X 2.11; 31.75 X 2.77; 31.75 X 3.05; 31.75 X 3.4; 38.1 X 2.11; 38.1 X 2.77; 38.1 X 3.05; 38.1 X 3.4; 44.45 X 2.11; 44.45 X 2.77; 44.45 X 3.05; 44.45 X 3.4; 44.45 X 3.81; 44.45 X 4.57; 50.8 X 2.11; 50.8 X 2.77; 50.8 X 3.05; 50.8 X 3.4; 50.8 X 3.81; 50.8 X 4.57; 57.15 X 2.11; 57.15 X 2.77; 57.15 X 3.05; 57.15 X 3.4; 57.15 X 3.81; 57.15 X 4.57; 63.5 X 2.11; 63.5 X 2.77; 63.5 X 3.05; 63.5 X 3.4; 63.5 X 3.81; 63.5 X 4.57; Pipe Size: 2 1/2" SCH40 (73.03 X 5.16); 2 1/2" SCH80 (73.03 X 7.01); 3" SCH40 (88.9 X 5.49); 3" SCH40 (88.9 X 7.62); 3 1/2" SCH40 (101.6 X 5.74); 3 1/2" SCH80 (101.6 X 8.18); 4" SCH40 (114.3 X 6.02); 4" SCH80 (114.3 X 8.56); 5" SCH40 (141.3 X 6.55); 5" SCH80 (141.3 X 9.27); 6" SCH40 (168.3 X 7.11); 6" SCH80 (168.3 X 10.97); 8" SCH40 (219.1 X 8.18); 8" SCH80 (219.1 X 12.7); Length Max.: 25M/PC; other sizes depend on customer requst | Stainless Steel: SS304, SS304L, SS316L, SS317L, SS347, SS310; SS409 (1CR12), SS410(1Cr13); Carbon Steel(CS) , Alloy Steel: ASTM A387 Gr.A, Gr.B, Gr.C; Aluminum ASTM A209 / ASME SA209 AL1060, Gr.6061; ASME SA210/ ASTM A210 AL1060 , AL1100, Gr.6061, Gr.6063, ASTM A221/ ASME SA221 AL 1060 , Gr.6061, Gr.6063 Alloy Steel: P11, P22, P5, P9 | Solid Fin : High Frequency Weldding(HFW), Serrated Fin Tube, Studded Tube /Pin Tube, Square Fin Tube, H Type Fin tube, HH type Fin tube; Embedded : G Type Fin Tube; Wound: L, LL, KL ; Extruded; Thread Fin tube ; Low Fin tube; Corrguated Fin Tube; Bamboo Tube; U bend Fin tube | 1.6mm ~60mm | 0.2mm~3.0mm | Depend on client request | 12.7mm~25.4mm | 40mm~client request |
| EN10216-5; EN10217-7; DIN 17456; DIN17457; DIN17458 | 1.4301,1.4305, 1.4306, 1.4307, 1.4571,1.4401, 1.4404, 1.4541, 1.4948, 1.4550, 1.4912, 1.4845, 1.4462, 1.4539, 1.4438, 1.4501 | ||||||||
| ASTM A335; ASME SA335; ASTM A213; ASME SA213 | T1, T11, T12, T22, T23, T5, T9, T91, T92, P1, P11, P12, P22, P23, P5, P9, P91, P92 | ||||||||
| ASTM A53; ASTM A106, ASME SA106 | GR.A, GR.B, GR.C | ||||||||
| ASTM A178; ASME SA178; ASTM A179, ASME SA179; ASTM A192; ASME SA192; ASTM A209; ASME SA209; ASTM A210; ASME SA210; ASTM A 214; ASME SA214; ASTM A333; ASME SA333 | Gr.A, Gr.B, Gr.C, A179, A192, T1a, T1b Gr.A1, Gr.1, Gr.3, Gr.6 | ||||||||
| ASTM B161; ASME SB161; ASTM B163; ASME SB163; ASTM B164; ASME SB164; ASTM B165; ASME SB165; ASTM B167; ASME SB167; ASTM B407; ASME SB407; ASTM B444; ASME SB444; ASTM B622; ASME SB622; ASTM B388; ASME SB388 | Grade:Hestalloy:C-276, C-4, C-22, C-2000, X, B-2, B-3, G-30, G-35. Monel:400,401, 404, R-405, K500. Inconel:600, 601, 617, 625, 690, 718, 740, X-750. Incoloy:800, 800H, 800HT, 825, 840. Pure Nickel:Ni-200, Ni-201, Ni-270. NS Alloy:Ns 1101, NS1102, NS1103,NS3105. Titanium : Gr.2 , Gr.5, Gr.7, Gr.9 ; | ||||||||
