| Categories | Wellhead Assembly |
|---|---|
| Model Number: | 1 13/16"～7 1/16" |
| Certification: | API 6A |
| Place of Origin: | China |
| MOQ: | 1 piece |
| Price: | USD150-800/piece |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pieces per month |
| Delivery Time: | 15-30 work days |
| Packaging Details: | Export Wooden Case |
| Product Name: | API 6A Mud Gate Valve 2" Fig 1502 15000 Psi Forged Steel Gate Valve |
| Keywords: | Mud Valve |
| Size: | 1 13/16"～7 1/16" |
| Working Pressure: | 2000psi ~ 15000psi |
| Working Temperature: | -46℃—121℃ |
| Material Grade: | AA、BB、CC、DD、EE、FF、HH |
| Specification Grade: | PSL 1- PSL4 |
| Connection: | Butt welding, flange, union |
| Company Info. |
| Dongying Oilman Machinery Equipment Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

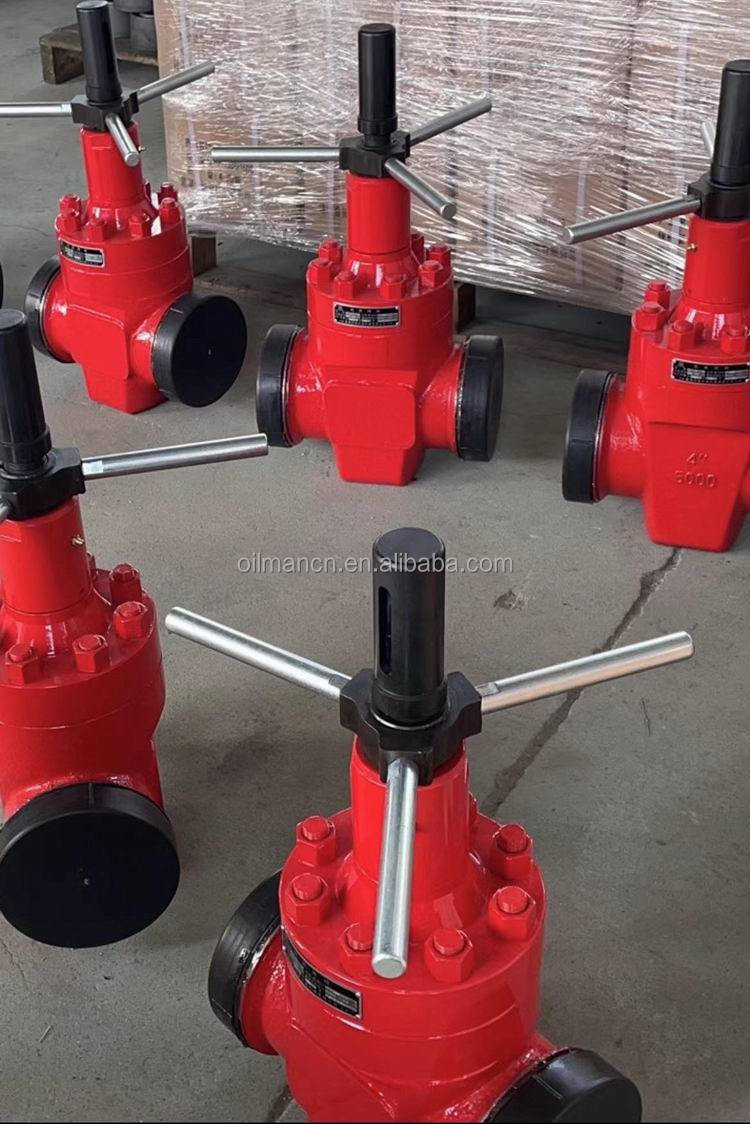

API 6A Mud Gate Valve 2" Fig 1502 15000 Psi Forged Steel Gate Valve
The union ends mud gate valve is mainly used for drilling mud circulating system in oil field. It is used to control the flowing and stopping of mud and is joined by trapezoid thread connection, can be installed quickly and conveniently. The equipment has strong rigidity which is safe and reliable, The union ends mud gate valve seat and gate are sealed by means of parallel-type Metal to Metal Sealing, its sealing effect is good, and it is convenient for opening, Two ends of the valve and pipes are connected by spherical movement. The movable connection of the rubber seal ring like "O" is not of high requirement about straightness of the two ends of pipes, its seal performance is very good after installed.
Main Types:
Z23X-35-100 Mud Gate Valve, Z23Y-35-100 Mud Gate Valve, Z23X-35-75
Mud Gate Valve, Z23Y-35-75 Mud Gate Valve, Z23X-35-50 Mud Gate
Valve, Z23Y-35-50 Mud Gate Valve, Z23Y-70-100 Mud Gate Valve, Z23Y-70-75 Mud Gate Valve, Z23Y-70-50
Mud Gate Valve
SPECIFICATION
| 1 | Manufactured and Tested in Accordance with API Spec 6A |
| 2 | Forged Steel Body and Bonnet |
| 3 | API 6A PSL 1, 2 and 3 available |
| 4 | Valve seat and gate are sealed by Metal to Metal Sealing |
| 5 | Low Operating Torque |
| 6 | Quick Release Hand Wheel |
| 7 | Factory Pressure Tested in Accordance with API.6A |
| 8 | Can be supplied with Flanged End Connections, Hammer Union Ends, Threaded Connections or Butt Weld Ends |
| 9 | Material Classes DD, EE, FF, to NACE MR-01-75 |
| 10 | Available with Pressure Ratings 3000psi, 5000psi and 10000psi in 2", 3", 4", 5" Valve Sizes |
| Model | Z23X-35-DN50 | Z23X-35-DN65 | Z23X-35-DN80 | Z23X-35-DN100 |
| Work pressure | 5000psi | 5000psi | 5000psi | 5000psi |
| Diameter | 2” (20) | 2 1 /2” (65) | 3” (80) | 4” (100) |
| Working medium | mud | mud | mud | mud |
| Connection Type | Union | Union | Union | Union |
| Connector connection size | Trl120*6 | Trl130*6 | Trl150*6 | Trl180*8 |
| Structure length (L) | 205 | 235 | 270 | 330 |
