High Precision Carbon Square Pipe Making Machine 100m/Min Custom

Categories Steel Tube Making Machine
Brand Name: hebeitengtian
Model Number: HG50
Certification: CE
Place of Origin: Shijaizhuang
MOQ: 1
Payment Terms: L/C, T/T
Supply Ability: 1
Delivery Time: 1month
Packaging Details: container
Product Name: High Precision Carbon Steel 100m/min Custom Steel Tube Making Machine
Materials: Carbon Steel
Specification: Custom
Product Speed: Max 100m / Min
Cut off error: ± =0.5mm
Floor Area: 60m × 12m
Power: 200KW
Shape: Round Square
Price: $100000 to $1 million
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Precision Carbon Square Pipe Making Machine 100m/Min Custom

High Precision Carbon Steel Pipe Machine 100m/min Custom Steel Tube Making Machine


  • Product process
    1uncoiler
    2pinch and leveling machine
    3straightening
    4shear welder
    5horizontal accumulator
    67 sets roller forming stand
    7

    cold saw

    8Roller conveyer round pipe
    9

    auto stacking machine

    10

    Electric control cabinet

  • Product overview

High Precision Carbon Steel Pipe Machine 100m/min Custom Steel Tube Making Machine unit design reasonable, the touch screen man-machine interface, PLC digital program control, code length, high degree automation, process flow, product quality good, stable mechanical properties, high yield, save work time and work cost, the overall linkage scale with high precision.

  • Uncoiler

It is main include frame, electric motor, brake unit, circling direction transfer power axle of the reduce velocity, press & carry roll, pressure air system of guide roll, inspected velocity unit; it can supply the strip steel to accumulator and the mean times it will transfer the carry velocity information to electric control system, when we demand stop carry the material to this unit, it will stop roll to the electric motor and press& carry material roll by the break, and also could adjust the velocity to carry electric motor and the unit carry material velocity.


  • The Basic Parameters

Raw Material Conditions

Hot rolled or cold rolled steel strip

single cone uncoilerHydraulic pressure increases and single cone

Thickness of strip

0.6-2.5 mm

Strip Width

50 - 130mm

Max Coil Weight

3000Kg

working speed

100m / min

Main motor

410kw


P.S.

we can design the High Precision Carbon Steel Pipe Machine 100m/min Custom Steel Tube Making Machine accoeding to the customer detail require.


It is our honor to answer all your questions, welcome to consult

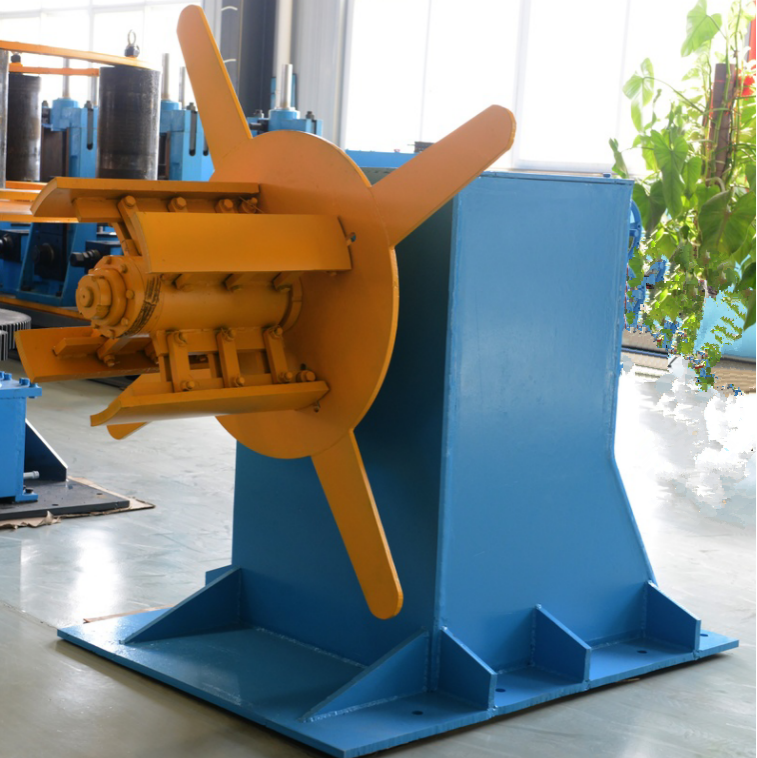

single cone uncoiler

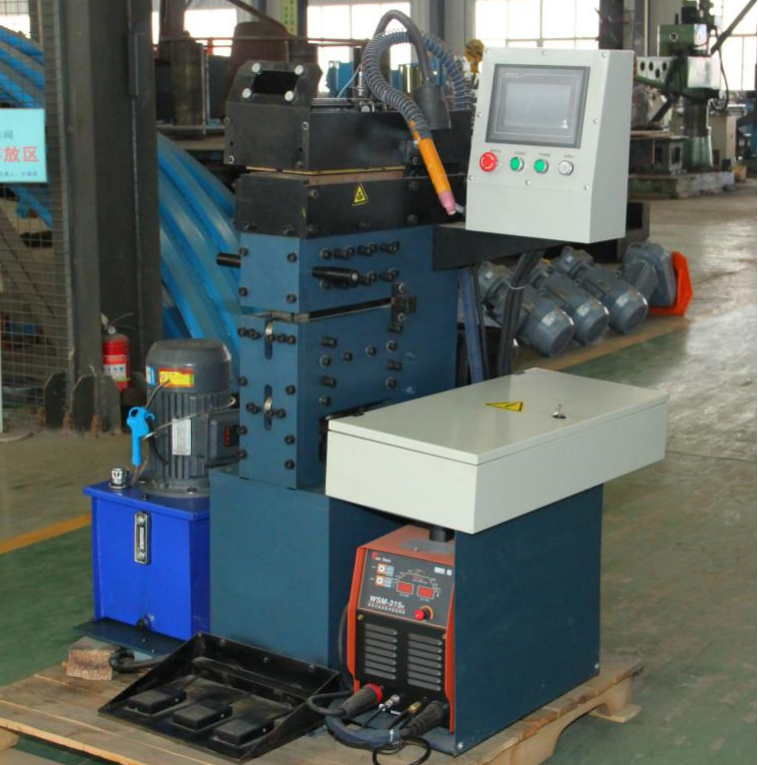

Shear and welder

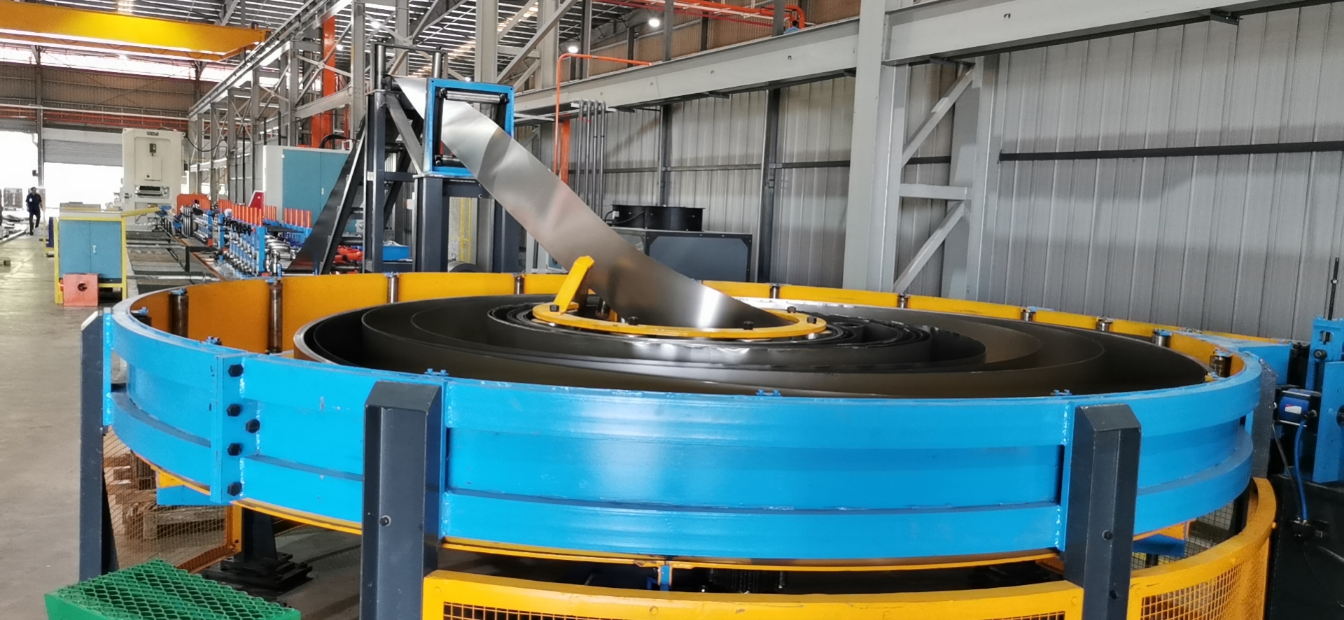

horizontal spiral accumulator
