| Categories | Stainless Steel Welded Pipe |
|---|---|
| Brand Name: | YUHONG GROUP |
| Model Number: | TP317L |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Place of Origin: | CHINA |
| MOQ: | 1PC |
| Price: | Negotiation |
| Payment Terms: | L/C at sight , T/T |
| Supply Ability: | 10000 Ton/month |
| Delivery Time: | Depends on quantity |
| Packaging Details: | Bundle /Ply-wooden Case |
| Material Grade: | TP304 |
| Standard: | ASTM A312 |
| Size: | 1/8″ – 30″ |
| W.T.: | Sch 5s, Sch 10s, Sch 40s, Sch 80s |
| Length: | Single Random, Double Random & Required Length |
| NDT: | ET HT UT PT |
| Packing: | Ply-wooden Case /Iron Case/ Bundle |
| Appllication: | petroleum refineries/natural-gas processing/space heating |
| Company Info. |
| Yuhong Group Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

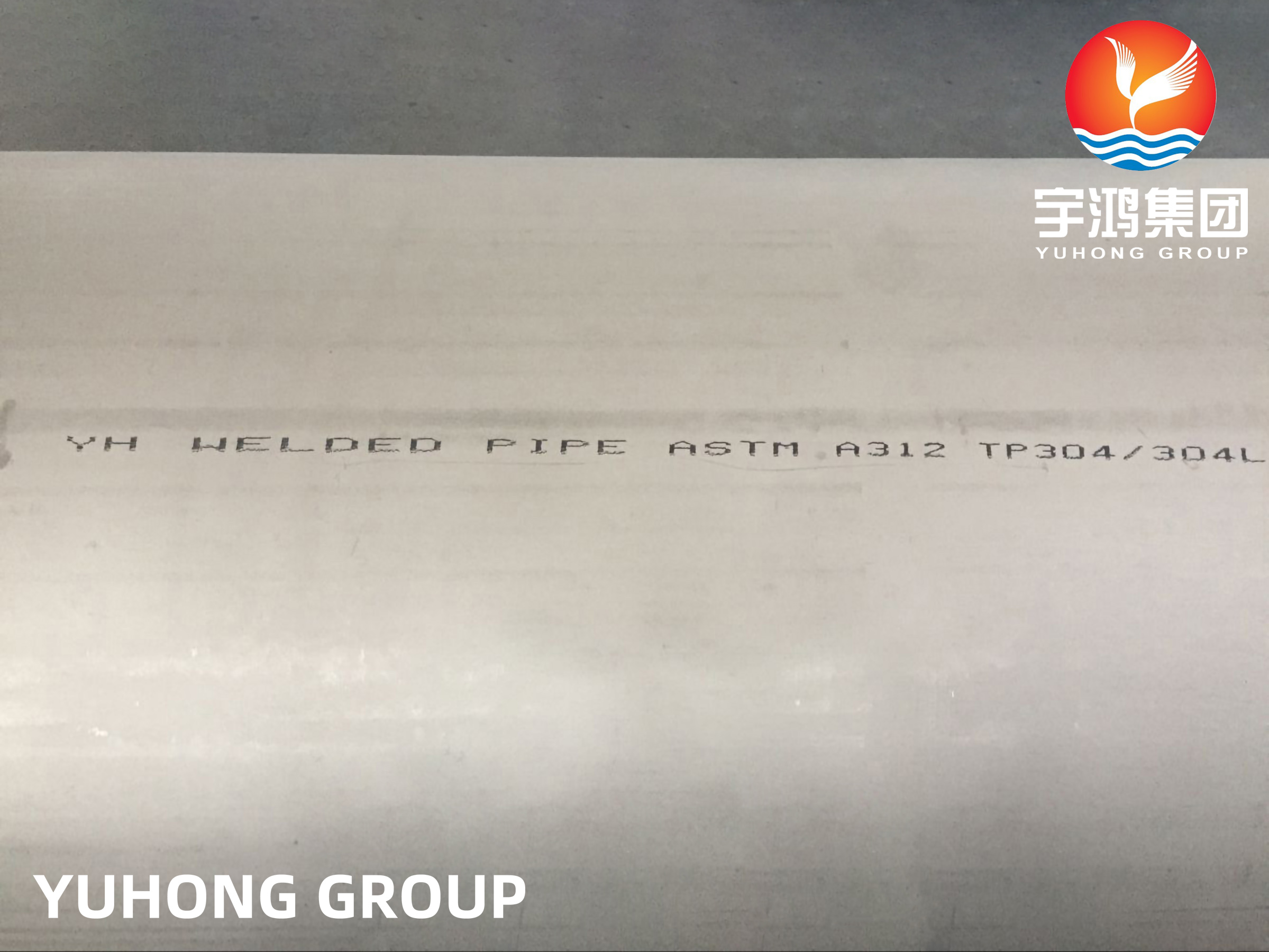

ASTM A312 TP304 Welded Pipes Boilers automobiles ships construction Heat Exchanger
What is ASTM A312 TP304 Welded Pipe?
ASTM A312 TP 304 stainless steel is the most commonly used 300 series stainless steel grade, which combines sufficient chromium and nickel content for excellent performance. ASTM A312 TP 304 has good corrosion resistance, good formability and good weldability for a variety of applications.
Chemical Composition of ASTM A312 TP304 Welded Pipe
| Grade | C | Mn | P | S | Si | Ni | Cr | Fe |
|---|---|---|---|---|---|---|---|---|
| TP304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.0 | 8-11 | 18-20 | Bal. |
| Tensile Strength(Mpa) Max | Yield Point(Mpa) Max | Elongation(%) | Hardness (HRB) Max | |
|---|---|---|---|---|
| TP304 | 515 | 205 | 35 | 92 |
TP304 stainless steel EN equivalent is 1.4301.
Heat Treatment
All seamless steel tubes should be heat treated at the specified temperature. After cold working, residual stresses and potential impurities may occur, and the heat treatment will rebuild the alloy structure and then obtain the original properties. the minimum annealing temperature for TP304 stainless steel should be 1040 degrees C.
ASTM A312 TP304 Welded Pipe APPLICATION
Boilers
automobiles
ships
construction
Heat Exchanger
|
