| Categories | Monel Alloy |
|---|---|
| Brand Name: | KAIXIN |
| Model Number: | KX-Alloy MO400 |
| Certification: | ISO9001:2015 |
| Place of Origin: | China |
| MOQ: | 200KG |
| Price: | To negotiate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50~80 TONS per MONTH |
| Delivery Time: | 45~60days |
| Packaging Details: | Wooden Box, size as per guests' request |
| Shape: | Wire,Strip,Rod,Tube,Plate |
| Alloy Type: | Corrosion Resistant Alloy |
| Raw Materials: | Ni: ≥63%; Cu:28.0-34.0% |
| Executive Standard: | ASTM B164，ASTM B165，ASTM B127，ASTM B564 |
| Delivery status: | Sosoloid |
| Application: | Marine and Chemical Industry |
| Features: | Corrosion resistance, high strength and non-magnetic |
| Size: | Negotiable |
| Company Info. |
| Danyang Kaixin Alloy Material Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
KX NO4400 Sheet Welding Wire Strip Round Bar Light Rod Process Performance On Monel Alloy
Product Description and Application
NO4400 is also known as UNS N04400,NCu30, W.N,2.4360, Alloy400, NW4400, NCU30-LC
NO4400 alloy has excellent corrosion resistance to fluorine gas, hydrochloric acid, hydrofluoric acid and their compounds. At the same time, it is more resistant to corrosion in the sea than copper-based alloys. Monel400 is resistant to corrosion in hydrochloric acid with a concentration of less than 85%. Monel400 is one of the main raw materials in hydrochloric acid. Monel400 alloy is not only corrosion-resistant, but also less porous corrosion, intergranular corrosion and so on. The corrosion rate is lower than 0.025mm/a. Monel400 in the air continuous operation temperature is generally around 600℃ and the corrosion rate is less than 0.026mm/a. in high temperature vapor.
Ammonia: Because of the high nickel composition of Monel400 alloy, it can withstand the corrosion of aqueous ammonia and ammonolysis standard below 585℃,which can manufacture all kinds of parts with complex shapes and has been widely used in aerospace, nuclear energy, petroleum industry and extrusion mold in the above temperature range.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Alloy | % | Ni | Cu | Fe | C | Mn | Si | S |
| NO4400 | Min | 63 | 28 | - | - | - | - | - |
| Max | - | 34 | 2.5 | 0.3 | 2 | 0.5 | 0.024 |
| Density | 8.83g/cm3 |
| Fusing Temperature | 1300℃~1390℃ |
| Alloy State | Monel 400 |
| Tensile Strength (Rm N/mm2) | 480 |
| Yield Strength RP0.2N/mm2 | 170 |
| Extension A5% | 35 |
Professional Customization

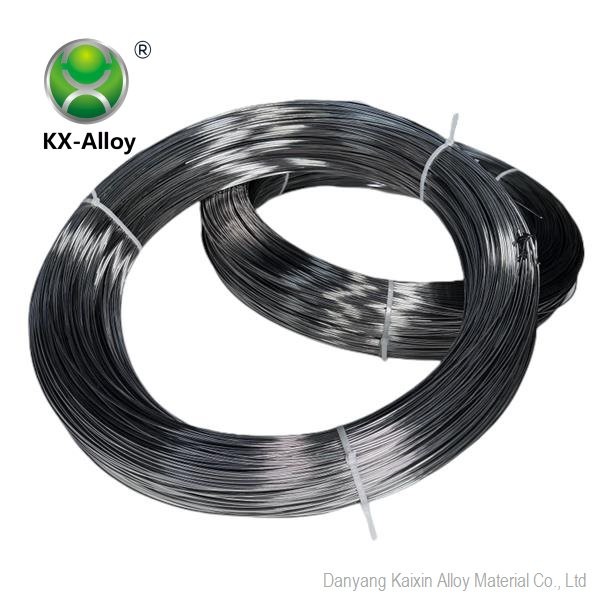

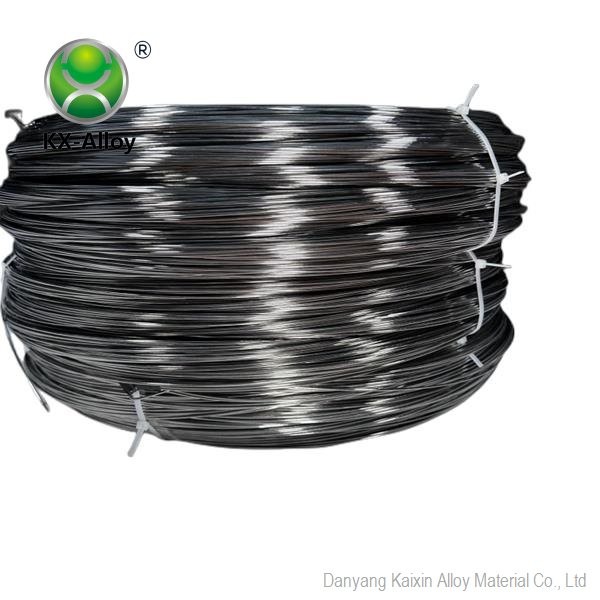

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

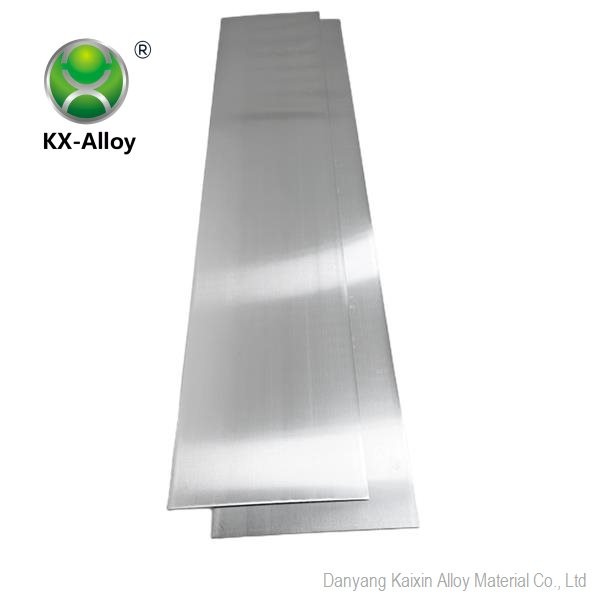

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |

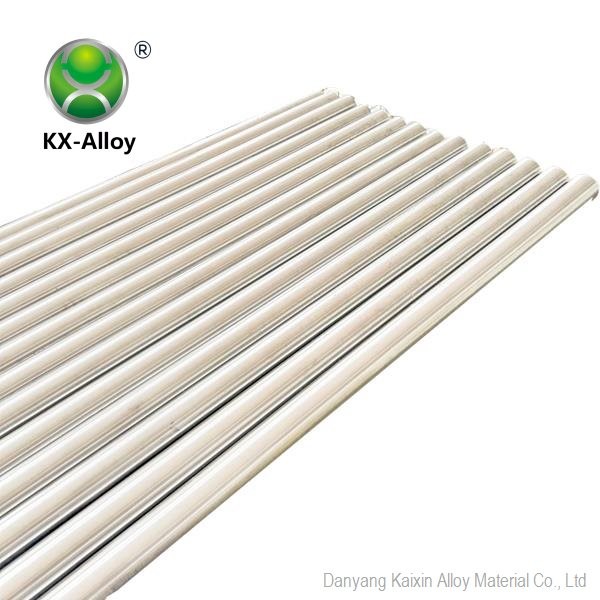

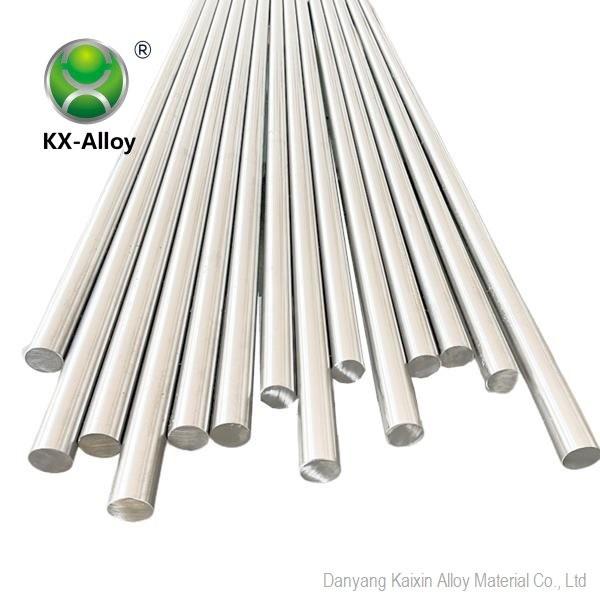

| Smooth Forged Rod on a Lathe | ¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |

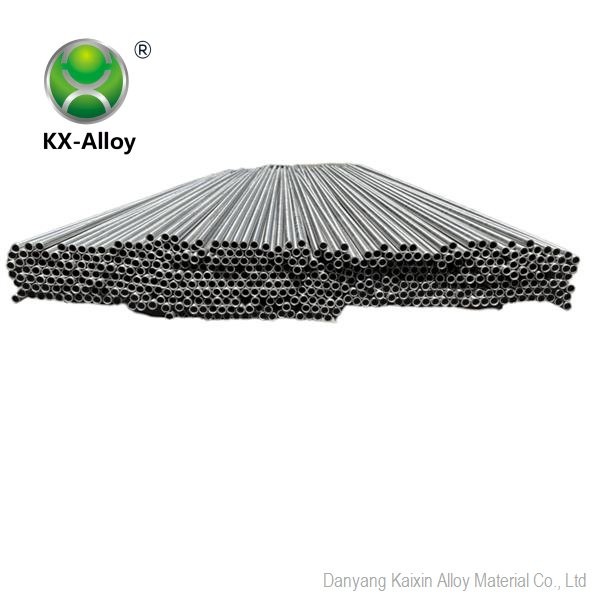

| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
|
