| Categories | Wheel Scissor Lift |
|---|---|
| Brand Name: | Beijun |
| Model Number: | BJ90A |
| Certification: | CE,ISO,TUV |
| Place of Origin: | China |
| MOQ: | 1 |
| Supply Ability: | 100 Set/Sets per Month |
| Delivery Time: | 14-30 days |
| Packaging Details: | Customized packaging |
| Product configuration description: | 287 KWh single motor |
| Transmission model: | TS-0725 |
| Front axle rated load (Kg): | 20000*1 |
| Rated load of rear axle (Kg): | 35000*2 |
| Tire specifications: | Radial tire 14.00R25 |
| Body size (mm): | 5800*3200*1800 |
| Total mass (kg): | 90000 |
| Curb weight (kg): | 35000 |

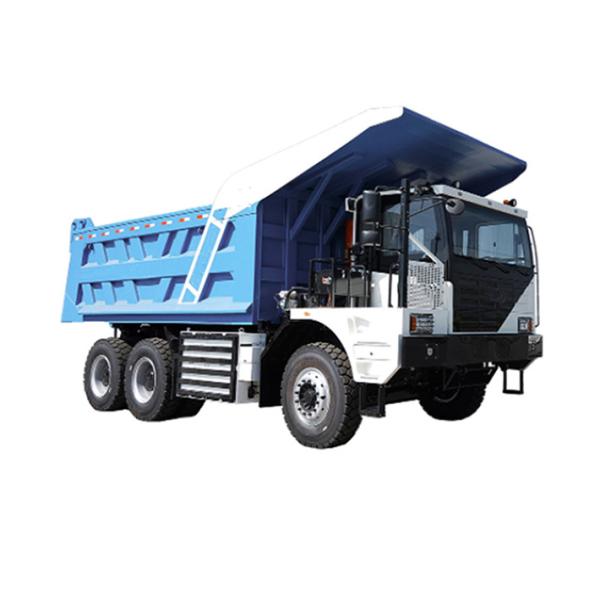

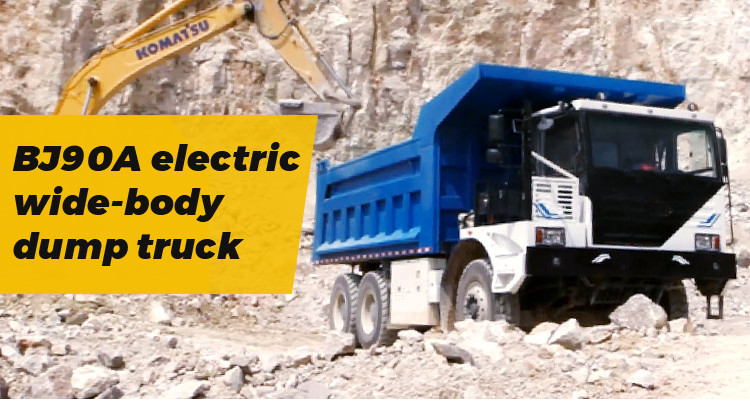

Hot Sale Lifting Electric Mining EV Dump Truck for Mining Environmental protection, safety
Product Features:
The Beijun electric mining truck stands out as a highly appealing option for companies operating in industrial settings, thanks to its unique features and capabilities. With its zero-emission operation, the truck can help companies reduce their carbon footprint, a critical concern in today's sustainability-focused landscape. Moreover, the truck's impressive safety features, energy recovery system, and dynamic performance make it ideal for navigating challenging terrains and environments, which are common in the industries it serves.
One of the most significant advantages of the Beijun electric mining truck is its low operating and maintenance costs, which can help companies save money over time. With fewer moving parts than traditional diesel-powered trucks, the Beijun truck requires less maintenance and can reduce downtime, ensuring that operations run smoothly and efficiently.
As the industrial sector increasingly prioritizes sustainable practices, the Beijun electric mining truck's combination of environmental friendliness, safety, and efficiency makes it an excellent choice for companies looking to enhance their material transportation operations. It will be fascinating to see how electric vehicles like the Beijun truck continue to advance and gain adoption in various industries as companies focus more on sustainability and reducing their carbon footprint.
| Specification of Beijun Electric Mining Truck | ||
| Product configuration description | 287 KWh single motor | 350 KWh double motor |
| Product number | BJ90A | BJ90B |
| Best working Application | Heavy downhill | Heavy downhill |
| Dynamic parameters | ||
| Power system model | single motor | Dual motor |
| Rated power and speed kW/rpm | 360/1492 (peak) 250/1492 (rated) | 2 x 300/4670 (peak) 2×225/4670 (rated) |
| Maximum torque and speed Nm/rpm | 2800/1492 (peak) 1600/1492 (rated) | 2 x 700/4670 (peak) 2×460/4670 (rated) |
| Battery capacity kwh/displacement L | 287 | 350 |
| Gearbox | ||
| Transmission model | TS-0725 | 7D20K |
| Drive axle | ||
| Front axle rated load (Kg) | 20000*1 | 20000*1 |
| Rated load of rear axle (Kg) | 35000*2 | 35000*2 |
| Tire specifications | Radial tire 14.00R25 | Radial tire 14.00R25 |
| Cargo box parameters | ||
| Body size (mm) | 5800*3200*1800 | 5900*3200*1800 |
| Standard bucket capacity flat pack/stack (m³) | 30/36 | 30/36 |
| Weight parameter | ||
| Total mass (kg) | 90000 | 90000 |
| Curb weight (kg) | 35000 | 36000 |
| Loading mass (kg) | 55000 | 54000 |
| Bridge load front/middle/rear (t) | 20/35/35 | 20/35/35 |
| Operational performance | ||
| Maximum speed km/h | ≤40 | ≤45 |
| Maximum grade% | ≥30 | ≥35 |
| Turning radius (front) mm | ≤11000 | ≤11000 |
|
