25T 336hp 371hp HOWO Dump Truck 6 X 4 10 Wheel Red Color Steering ZF8118

Categories Heavy Duty Dump Truck
Brand Name: CIVL
Model Number: CIVL
Certification: ISO,CCC
Place of Origin: China
MOQ: 1
Payment Terms: L/C, T/T,
Supply Ability: 2000 Unit/Units per Year
Delivery Time: Within 35 days
Packaging Details: In nude
Transmission: HW13710/HW19710
Brand: HOWO
Wheel Tyre: 12.00R20 raidial tyre
Steering: ZF8118
Engine: WD615.69
Power: 336HP
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

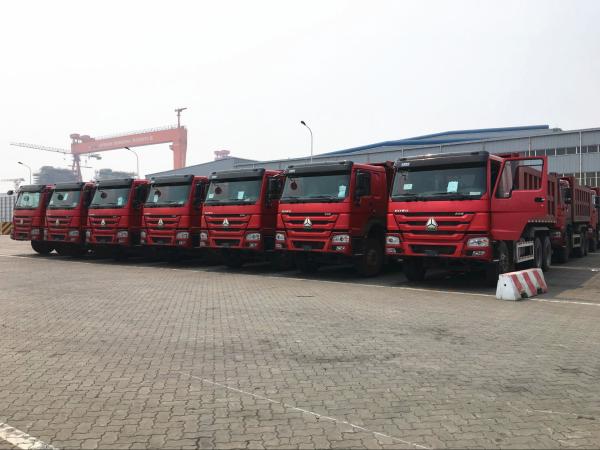

25T 336hp 371hp HOWO Dump Truck 6 X 4 10 Wheel Red Color Steering ZF8118

SINOTRUK 25T 6 x 4 HOWO Dump Truck Heavy Truck With 10 wheel,Red Color

Dump truck is unloading the goods themselves by hydraulic or mechanical lifting of the vehicle.Also known as skip.By car chassis, hydraulic lifting mechanism, boxcar and draw force device and other parts.
Dump truck carriage points to the tilting and two lateral tilting, by manipulating system control the movement of the piston rod, backward tilting is relatively common, push the piston rod to make car tilting, a two-way tilting.


Dump truck engine, chassis and the structure of the bridge and generally the same truck.
Distributing valve, the oil in the high pressure oil pipe into the lifting hydraulic cylinder, car front bridge safety protection plate.


SINOTRUK HOWO 6x4 DUMP TRUCK MAIN SPECIFICATIONS
ChassisModelZZ3257N3247AZZ3257N3447AZZ3257N3647AZZ3257N3847A
CabModelHW76 NEW face , Left Hand Drive, RHD is optional
Detailed InformationHw76 cabin, single sleeper, all-steel forward control, 70° hydraulically tillable to the front, 2-arm windshield wiper system with three speeds,laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, exterior sun visor, adjustable roof flap, stereo ratio/cassette recorder, safety belts, adjustable steering wheel, air horn, airconditioner, with 4-point support fully floating suspension and shock absorbers.
EngineModelWD615.62WD615.87WD615.69WD615.47
Power266 hp290 hp336 hp371 hp
KW/rpm196/2200213/2200247/2200273/2200
Displacement9.726 L
TransmissionHW13710/HW19710 ( 10 forward , 2 reverse , with direct connect PTO )
Front AxleHR9 (Drum Braking) Max.loading:9000 kg
Rear AxleHC16 (Drum Braking) Max.loading:16000 * 2 kg Ratio : 4.8/5.73
SteeringZF8118,hydraulic steering with power assistance
Braking SystemService brake: dual circuit compressed air brake
Parking brake:spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Electrical SystemOperating voltage:24 V, negative grounded
Starter:24 V,5.4Kw
Alternator:3-phtase,28 V,758 W
Batteries:2×12 V,135Ah
Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light
Wheel TyreTyres: 12.00R20 raidial tyreOption: 315/80R22.5,295/80R22.5,12.00-20
Body Dimension(mm)4800x2300x12005200x2300x14005600x2300x14005800x2300x1400
Body Shaperectangle shape/ U shape / volve shape / mining body
Hydraulic Cylinderventral tipping / front tipping
Thickness of BodyFloor 8 / 10 mmSide 8 / 6 / 4 mm
