| Categories | Compact Wheel Loader |
|---|---|
| Brand Name: | CIVL |
| Model Number: | CIVL |
| Certification: | CE/ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 set per month |
| Delivery Time: | Within 35 days |
| Packaging Details: | In nude |
| Type: | Backhoe Loader |
| Moving Type: | Wheel Loader |
| Dimension(Long * Breadth * High): | 6075*2350*3520mm |
| Condition: | New |

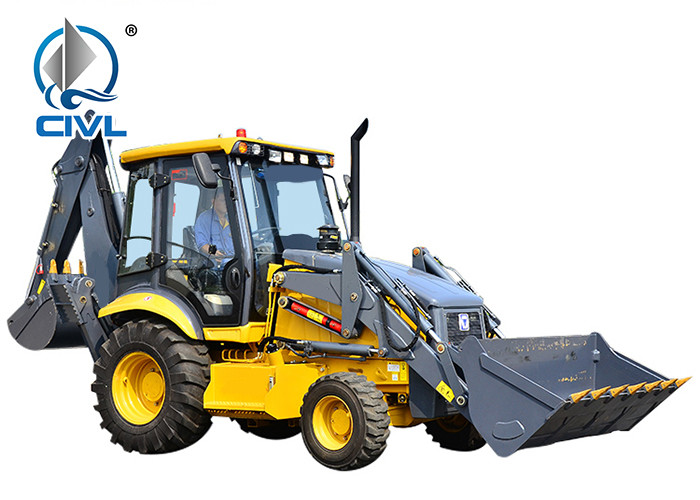

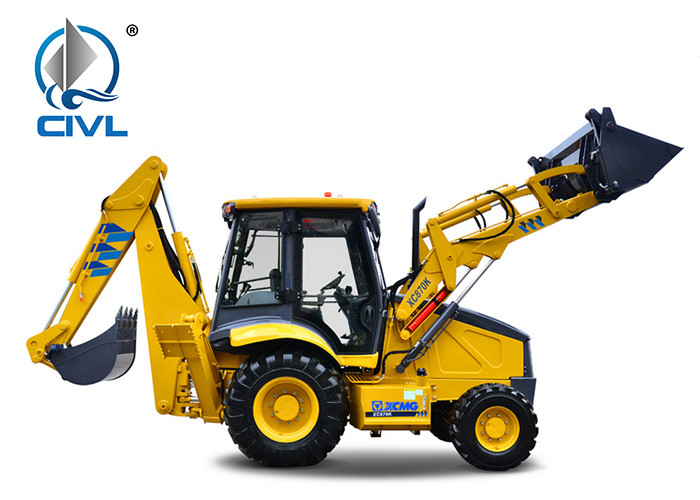

XCMG XC870HK Backhoe Loader:
The XCMG’s new generation K series backhoe loader features high flexibility, efficiency, reliability, and durability. The all-new visual identity appearance, panoramic cab, and optimized ergonomic design are applied to realize high fashion, beauty, and operation comfort. The multiple environmental adaptability technologies for high temperature, low temperature, highland, and heavy dust are available. The tool-less large-angle forward-tiltable hood realizes the one-stop maintenances and repairs. The diversified attachments, including four-in-one bucket, clamp, sweeper, breaking hammer, twist drill, and vibrating tamper, can be installed to realize multi-functionality.
| Description | Unit | Parameter value | |
| Chassis type | integrated | ||
| Drive style | 4 drive/2 drive | ||
| Digging working device | side | ||
| Outline dimensions(L×W×H) | mm | 6075×2350×3520 | |
| Total weight | kg | 8200 | |
| Max. travel speed | km/h | ≥40 | |
| Wheelbase | mm | 2180 | |
| Engine | Power | kW | 82(Cummins) 74(Cummins) 74.9(Deutz dalian) 70(weichai ) |
| Supplier | tier 3 tier 2 tier 3 tier 2 | ||
| Loading device | Bucket capacity | m³ | 1 |
| Rated load | kg | 2500 | |
| Max. breakout | kN | 66 | |
| Max. discharge height | mm | 2770 | |
| Max. discharge distance | mm | 755 | |
| System pressure | Mpa | 24 | |
| Digging device | Bucket capacity | m³ | 0.25 |
| Max. digging radius | mm | 5420 | |
| Max. digging depth | mm | 4320 | |
| Max. digging force | kN | 63 | |
| System pressure | Mpa | 24 | |
