Brand Name: | HuanYu Dream |
Model Number: | HY-1917RGBCW-3060-25-01-D5 |
Certification: | RoHS |
Place of Origin: | China |
MOQ: | Negotiable |
Price: | Negotiable |
Payment Terms: | T/T, Paypal,Ali Pay |
Supply Ability: | 500K/Month |
Delivery Time: | 7-9 Work Days |
Packaging Details: | 25pcs/Tray |
Type: | 1919 RGBCW LED COB Chip |
Size: | 19*19mm |
Color Temperature: | RGB+2700/6500K |
Voltage: | 20-24V |
Current: | RGB:150mA/ W:300mA |
Led light source: | COB |
Power: | 25W |
Company Info. |
Shenzhen Huanyu Dream Technology Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

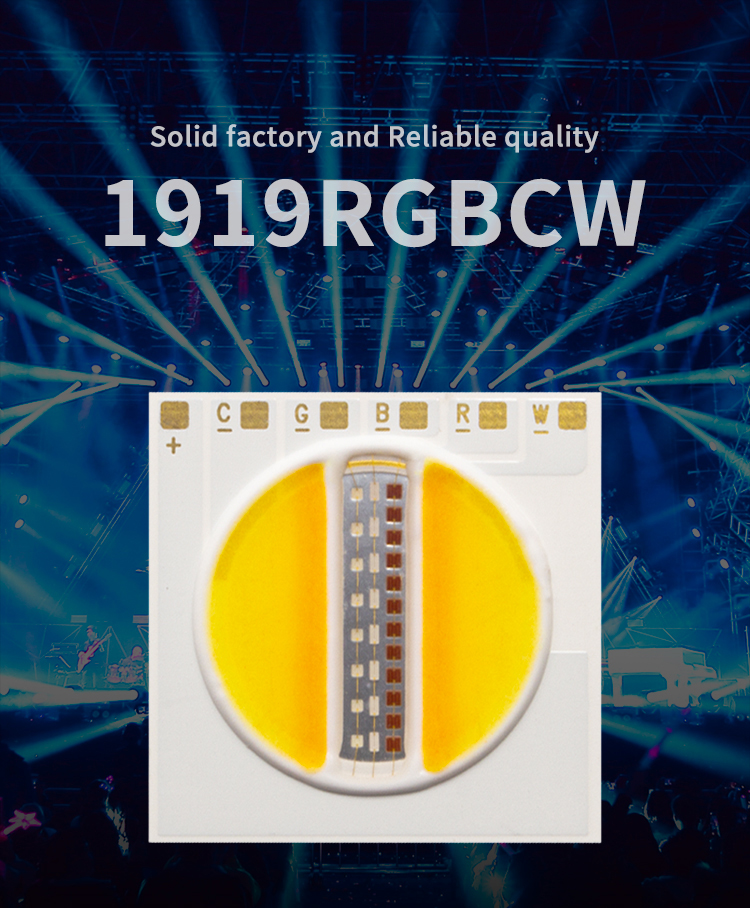

1919 Cob Rgbcw Cob Led Chip 5 In 1 Cob High Power Cob 25W 20-24V
1919 rgbcw cob led chip 5 in 1 cob high power cob Features
This RGBCW COB led strip has both RGB color and tunable CCT white light color with the LED color temperature range from 2800K soft white to 6500K daylight (also called pure white). Multi colors in one.

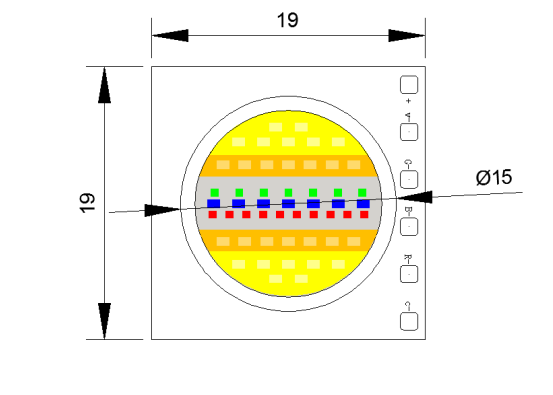

Package Dimension

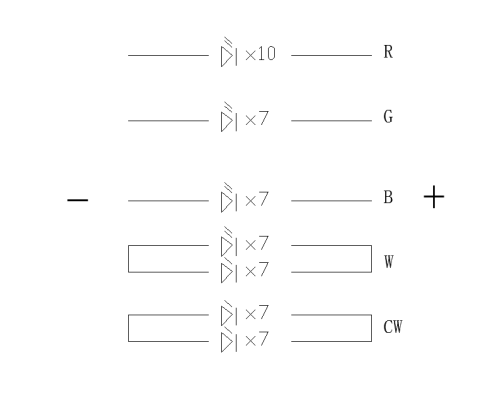

Green 7S1P |
Red 10S1P |
Blue7S1P |
WW 7S2P |
CW 7S2P |
Electrical - Optical Characteristics at Ta=25℃
Type | Symbol | Test condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
WaveLength(B) | λd | IF=150mA | 460 | -- | 465 | nm |
WaveLength(R) | λd | IF=150mA | 620 | -- | 630 | nm |
WaveLength(G) | λd | IF=150mA | 520 | -- | 530 | nm |
Correlated Colour Temperature cw | CCT | IF=300mA | 6000 | 6500 | k | |
Correlated Colour Temperature w | CCT | IF=300mA | 2900 | 3100 | k | |
Luminous Flux(B) | φv | IF=150mA | 50 | 70 | LM | |
Luminous Flux(R) | φv | IF=150mA | 180 | 220 | LM | |
Luminous Flux(G) | φv | IF=150mA | 220 | 260 | LM | |
Luminous Flux(W) | φv | IF=300mA | 700 | 900 | LM | |
Luminous Flux(CW) | φv | IF=300mA | 800 | 1000 | LM | |
Forward Voltage(B) | VF | IF=150mA | 20 | 24 | V | |
Forward Voltage(R) | VF | IF=150mA | 20 | 24 | V | |
Forward Voltage(G) | VF | IF=150mA | 20 | 24 | V | |
Forward Voltage(W) | VF | IF=300mA | 20 | 24 | V | |
Forward Voltage(CW) | VF | IF=300mA | 20 | 24 | V | |
Power(B) | PD | IF=150mA | 3 | 4 | W | |
Power(R) | PD | IF=150mA | 3 | 4 | W | |
Power(G) | PD | IF=150mA | 3 | 4 | W | |
Power(W) | PD | IF=300mA | 6 | 7 | W | |
Power(W) | PD | IF=300mA | 6 | 7 | W | |
Thermal resistance | Rth(j-s) | IF=150mA | -- | -- | 1 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
Parameter | Symbol | Rating | Units |
Junction temperature | Tj | 115 | ℃ |
Solder temperature | Ts | 350 | ℃ |
Operating Temperature | Topr | -40 ~ + 85 | ℃ |
Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
Application
Production Process
Advantages
![]() |
