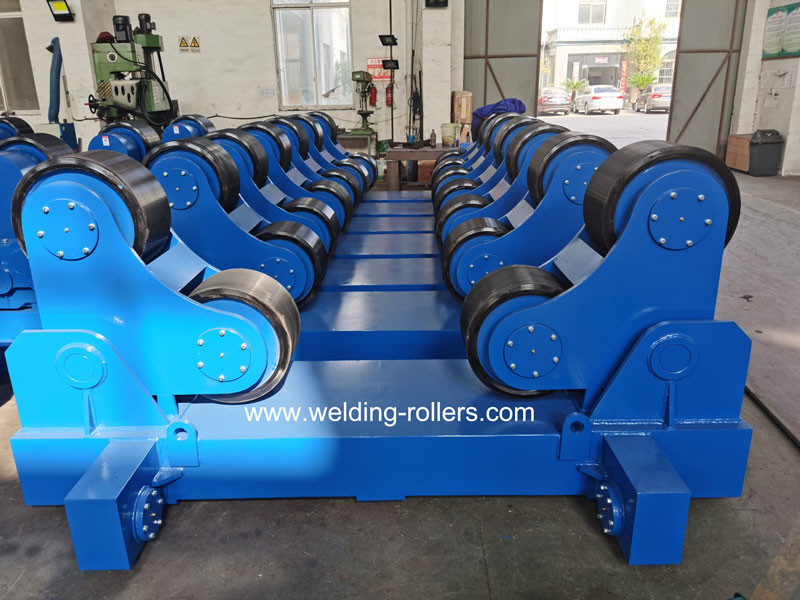

100 Ton Pipe Welding Rotator Self Aligning With Pu Wheel

pipe welding rotator,pipe rotator for welding

Product Description:

1.The vessel diameter range lies within 1000-5500 mm .

2.One set powered / One set idler / Electric control system.

3.Customers can customize 100 ton self - aligning welding rotators to their specifications.

4.100 ton Self - aligning welding rotator can controlled by handbox and foot pedal.

5.Rubber wheel or steel wheel following your repuire

6.Self - aligning welding rotator is easy to operate.

Features:

1. Support the tank for turning to make the seam welding conveniently.

2. We also have the movable model for several single pipe butt welding.

3. Fit up welding rollers or lift rollers are all available.

4. Working with automatic seam welding manipulator is more convenient.

Technical Parameters:

Model	HGZ-100
Turning Capacity	100 ton maximum
Drive Load Capacity	50 ton maximum
Idler Load Capacity	50 ton maximum
Adjust Way	Self aliging roller
Motor Power	2*3 KW
Vessel Diameter	1000~5500 mm
Rotation Speed	100-1000mm/min
Speed control	Variable frequency driver
Roller wheels	PU
Roller size	Ø500*280mm
Voltage	380v±10% 50Hz 3Phase
Control system	Foot pedal 8m cable
Color	Customized
Warranty	One Year

Applications:

1. Pressure vessel;

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job

Support and Services:

1. We offer a one-year warranty on your Pipe Welding Rotator.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

Packing and Shipping:

1. The Pipe Welding Rotator will be securely packaged and shipped in a wooden crate.

2. Once it is shipped, it will be tracked with a tracking code to ensure that it is delivered safely and on time.

4. Seaway is the most common transportation way for oversea trading.

5. Depends on your location, combined transport by rail and sea is also an option.

6. Certainly railway transportation is also acceptable if it is the most suitable approach.

FAQ:

Q1: What is your product name?
A1: Our product name is Weldsuccess Pipe Welding Roller.
Q2: Where is it made?
A2: It is made in China.
Q3: What certifications does it have?
A3: Our product has ISO/CE/CO certification.
Q4: What is the order quantity?
A4: The minimum order quantity is 1 set.
Q5: What is the price and payment terms?
A5: The price is negotiable and the payment terms are L/C, D/P, T/T. The packing is wooden case and the delivery time is 15 days. We can supply 5 sets per month.
