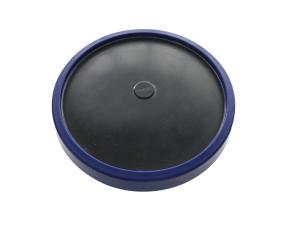

Fine Bubble Disc Diffuser With EPDM Membrane Cone Diffuser—DUDS 12
DESCRIPTION
The disc diffuser is a crucial component in the aeration process of wastewater treatment plants. It facilitates the transfer of oxygen from the air to the water, promoting the growth of beneficial microorganisms that break down organic matter. The Dubhe DUDS-12 excels in this role, providing efficient oxygen transfer while maintaining a high level of durability.
One of the key features of the DUDS-12 disc diffuser is its construction. It is made from high-quality materials that are resistant to corrosion, chemicals, and harsh
environmental conditions. This ensures that the diffuser can withstand the challenging operating conditions typically found in wastewater treatment plants.
The design of the DUDS-12 incorporates advanced engineering principles to optimize oxygen transfer efficiency. The disc shape allows for a large surface area, maximizing the contact between air and water. This results in enhanced oxygen transfer rates and improved treatment performance.
FEATURESHigh aeration effectiveness
The aeration process involves bringing together water and oxygen
for oxidation and dissolution of metals and dissolution of gases. With our fine
bubble disc diffuser and fine bubble tube diffuser, it makes the
process more effective.
High oxygen transfer efficiency (OTE)
Fine bubble diffusers generally work to treat water waste through OTE. However, with our products, it helps for a more enhanced process considering its specifications.
Energy efficient
Fine bubble diffusers have long been introduced opposite the coarse
diffusers. One of the features of our product is its energy-saving
mechanism.
That is, it needs lesser energy for it to work. In effect, you will
benefit from energy conservation.
System versatility
We have fine bubble diffusers that suit different water waste management systems. These diffusers are manufactured to ensure that they can adapt to different kinds of systems and basins that it yet to be made or are already existing.
Material efficiency
Our diffusers are made from various materials from ethylene
propylene diene monomer rubber (EPDM rubber), which is conventional
material. We also have FEPDM which has high chemical resistance.
Some are also of polytetrafluoroethylene or (PTFE) to reduce
fouling.
MATERIAL
EPDM Membrane
Manufactured by a standard cure, low plasticizer content, and 1mm or 2mm perforations. DUBHE mold EPDM with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high-quality product.
Diffuser Bases
The Diffuser Basesis molded with virgin polypropylene for extended performance, and is highly efficient with airflow performance of 1.5-2.5SCFM.

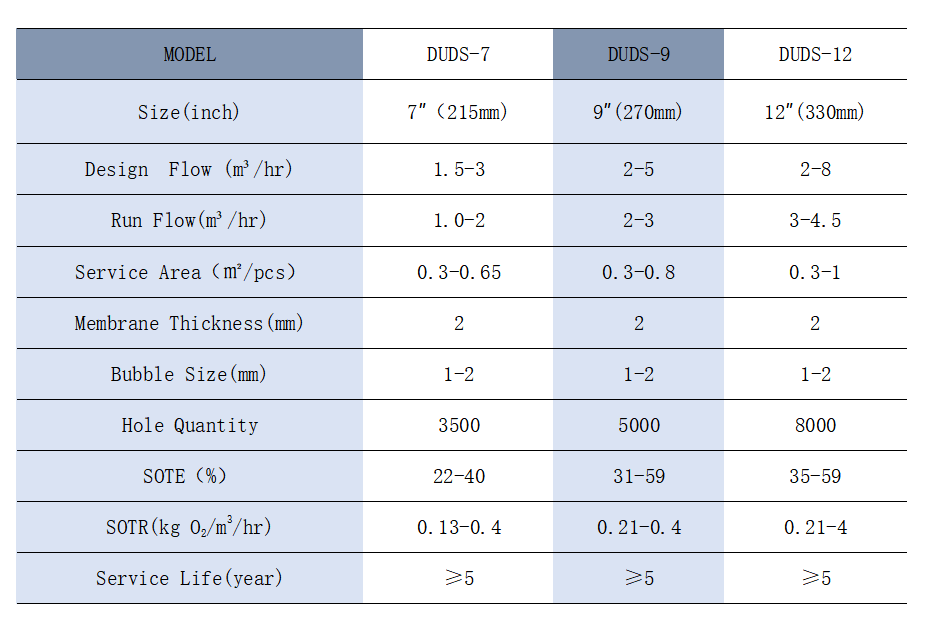

SPECIFICATION

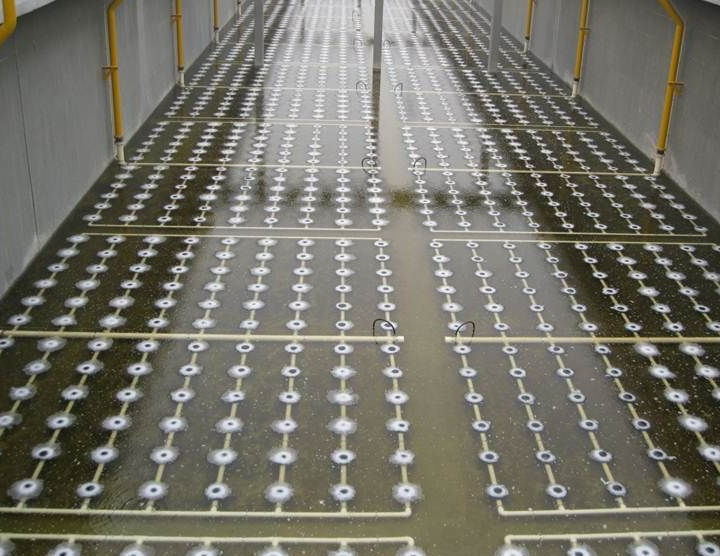

APPLICATION
