| Categories | GPON ONT |
|---|---|
| Brand Name: | V-SOL |
| Model Number: | V2804RGWT |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Payment Terms: | Negotiable |
| Supply Ability: | 1000 pcs/day |
| Delivery Time: | 3-5 days |
| Packaging Details: | Carton |
| Product type: | 1GE+3FE+WiFi+CATV ONU |
| PON Interface: | EPON PX20+ and GPON Class B+ |
| LAN Ports: | 4 auto adaptive Ethernet interfaces |
| CATV: | RF, optical power : +2~-18dBm |
| 2.4G WiFi: | Operating frequency: 2.400-2.4835GHz |
| Net weight: | 0.29kg |
GPON ONT 1GE+3FE+WiFi+CATV ONU Home Gateway Stable Chipset Realtek HGU
Product Description
V2804RGWT is based on mature and stable, cost-effective GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of IEEE802.3ah and ITU-TG.984.x , China Telecom EPON/GPON equipment technical requirements and other specifications.
V2804RGWT G/EPON 1GE+3FE+WiFi+CATV ONU meets telecom operators FTTO (office), FTTD (Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements to design an EPON/GPON Gigabit Ethernet products.

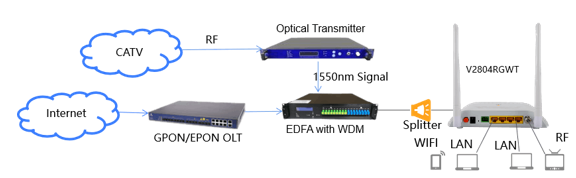

Application
Specifications

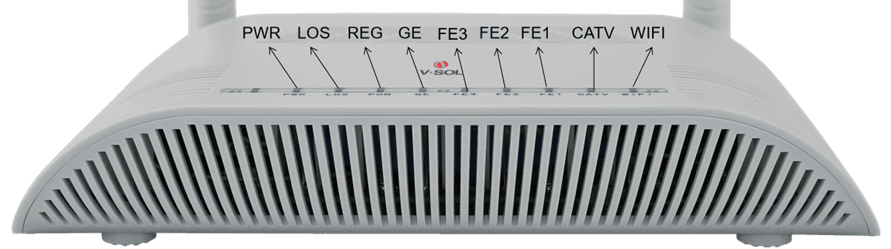

| LED | Mark | Status | Description |
| Power | PWR | On | Device is powered up. |
| Off | Device is powered down. | ||
| Optical Signal Loss | LOS | Blink | Device does not receive optical signals. |
| Off | Device has received optical signal. | ||
| Registration | REG | On | Device is registered to the PON system. |
| Off | Device is not registered to the PON system. | ||
| Blink | Device is registering. | ||
| Interface | FE1~FE3, GE | On | Port is connected properly. |
| Off | Port connection exception or not connected. | ||
| Blink | Port is sending or/and receiving data. | ||
| Wireless | WiFi | On | WiFi turned on. |
| Off | Device is power off or WiFi turned off. | ||
| Blink | WiFi data transmission. | ||
| WAN | WAN | On | WAN is up |
| Off | WAN is down | ||
| WPS | WPS | On | WPS client is connected. ( LED turn off after 5 minutes of successful connection) |
| Off | Does not use WPS or WPS client is connected. ( LED turn off after 5 minutes of successful connection) | ||
| Blink | WPS client is connecting. | ||
| CATV | CATV | On | 1550nm wavelength power of input is in normal range. |
| Off | 1550nm wavelength power of input is too low or no input. | ||
| Blink | 1550nm wavelength power of input is too high. |
Features
| Item | Function |
| PON mode | Dual Mode , Can access EPON/GPON mainstream OLTs |
| Software mode | Bridging and Routing Mode. |
| Layer2 | 802.1D&802.1ad bridge,802.1p Cos,802.1Q VLAN. |
| Layer3 | IPv4/IPv6 , DHCP Client/Server , PPPoE ,NAT , DMZ ,DDNS. |
| Multicast | IGMPv1/v2/v3 , IGMP snooping. |
| Security | Flow & Storm control, Loop Detection. |
| CATV | Support CATV management. |
| WiFi | IEEE802.11b/g/n (TX power:17dBm/16dBm/15dBm),Up to 300Mbps Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES). |
| Firewall | Filtering Based on ACL/MAC/URL. |
| O&M | WEB/TELNET/OAM/OMCI, Support private OAM/OMCI protocol and Unified network management of VSOL OLT. |
|
