| Categories | Water Bottle Blowing Machine |
|---|---|
| Brand Name: | Eceng |
| Model Number: | Q5L-2 |
| Certification: | CE&ISO |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1set |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 Set/Sets per Month |
| Delivery Time: | 30days |
| Packaging Details: | Wooden package |
| bottle making machine: | Water Bottle Blowing Machine |
| Hollow part volume: | 5L |
| Power (kW): | 48 |
| Weight (KG): | 3000 KG |
| Automation: | Automatic |
| Warranty: | 1 Year |
| Cavity: | 2 |
| Output: | 1500BPH |

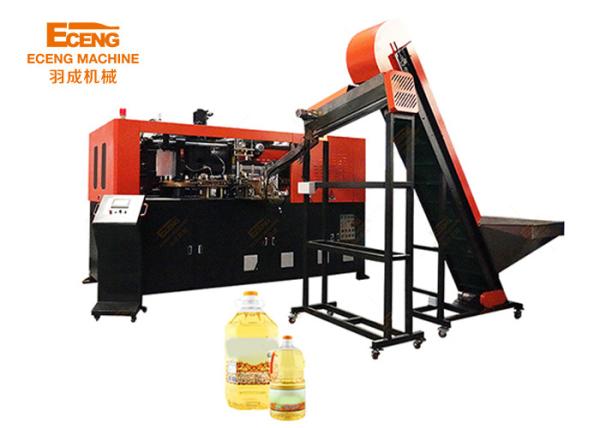

1500BPH 2cavity Automatic PET Blowing Bottle Machine for 3L and 5L Bottles
technical parametre-- 5L pet bottle machine
| Item | Q5L-2 | |
| Bottle type specification | Cavity | 2 |
| Theory output | 1500 | |
| Max.volume | 5L | |
| Bottle mouth maximum overall DIdiameter | 150mm | |
| Bottle biggest diameter | 180mm | |
| Bottle maximum height | 360mm | |
| Power specifications | Light tube quantity | 40pcs |
| Light tube power | 2.5KW | |
| Maximum heating power | 48KW | |
| All electric machine installation | 51KW | |
| Actual consumption | 35.7KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 1600Ltr/min | |
| Forzen water specification | Work pressure | 25-35 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 6000kcal/hr | |
| Forzen water flow | 50L/min | |
| Machine specification | Size of the machine | 4.12x1.8x2.25 |
| Weight of the machine | 3ton | |
1. High production capacity: Q5L2 1500BPH 2cavity automatic pet blowing bottle machine boasts
a production capacity of 1500 bottles per hour, making it ideal for
small to medium-sized enterprises looking to ramp up their
production output.
2. Efficient operation: This automatic pet blowing bottle machine is designed to operate
with a minimal amount of human intervention, helping businesses cut
down on labor costs while increasing efficiency.
3. Versatile bottle sizes: With the ability to produce both 3L and 5L bottles, the Q5L2
automatic pet blowing bottle machine is perfect for businesses that
need to produce a variety of bottle sizes to meet their customers'
demands.
4. Consistent quality: The machine uses advanced technology to produce high-quality
bottles that meet strict industry standards, ensuring that your
customers receive a product that meets or exceeds their
expectations every time.
5. Easy to use: The Q5L2 automatic pet blowing bottle machine is designed to be
user-friendly and easy to operate, with controls that are intuitive
and simple to use. This makes it an ideal choice for businesses
that are looking for a machine that is easy to learn and operate.

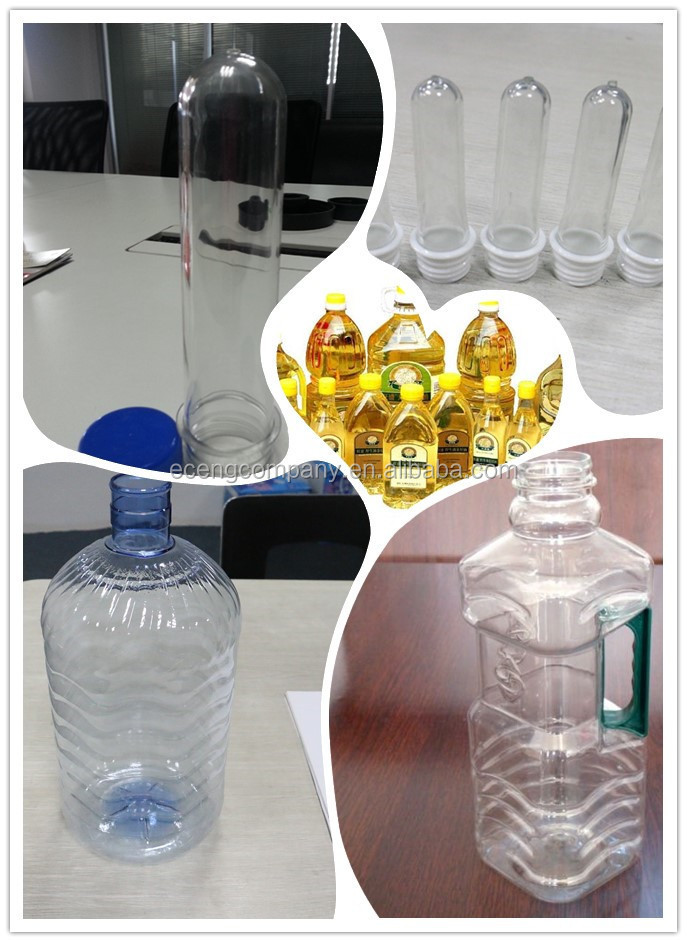

photo show-- 5L pet bottla machine
