CE12VDC Baocheng Compact Relay With Impressive Switching Capabilities

Categories BaoCheng Relay
Brand Name: NBC
Model Number: CE-12VDC-A25-P
Certification: CQC
Place of Origin: China
MOQ: 100pcs
Price: negotiable
Payment Terms: T/T
Supply Ability: 500k per month
Delivery Time: 5-8days
Packaging Details: standard or customization
Keywords: BaoCheng Relay
Contact form: 1A
Contact Material: AgSnO2
Contact load: 1A25A/250VAC,277VAC;1.5HP 250VAC; TV-10
Maximum switching current: 25A
Maximum switching power: 6250VA
Mechanical durability: 1*107OPS
Electrical durability: 1*105OPS
Insulation resistance: 1000MΩ
Dielectric withstand voltage: 4500VAC
Action Time (Max.): 20ms
Release Time (Max.): 10ms
Ambient temperature: -40℃ ~ 85℃
Exit end method: THT & QT
Rated voltage: (5-48)VDC
Rated coil power: 0.9W
UL insulation class: Class F insulation class
External dimensions:: 30.5 x 16 x 23.5mm & 30.5 x 16 x 26.5mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

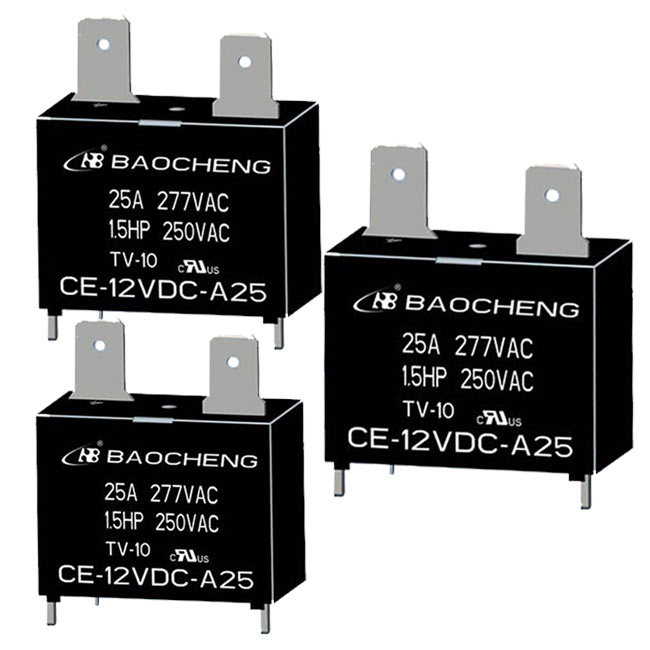

CE12VDC Baocheng Compact Relay With Impressive Switching Capabilities

CE12VDC Baocheng Compact Relay With Impressive Switching Capabilities


CE12VDC Baocheng Relay Compact Design With Impressive Switching Capabilities


BaoCheng Relay Description:

The CE-12VDC-A25-P Relay is a symbol of excellent design and quality. Its external dimensions of 30.5 X 16 X 23.5mm & 30.5 X 16 X 26.5mm ensure a compact design that can easily fit into various systems, while its THT & QT exit end methods offer compatibility with different requirements. These features, coupled with its powerful capabilities and efficient operation, make the CE-12VDC-A25-P Relay a versatile and convenient choice for any system.


BaoCheng Relay Parmeter:

Keywords:

BaoCheng Relay

Contact Form:

1A

Contact Material:

AgSnO2

Contact Load:

1A25A/250VAC,277VAC;1.5HP 250VAC; TV-10

Maximum Switching Current:

25A

Maximum Switching Power:

6250VA

Mechanical Durability:

1*107OPS

Electrical Durability:

1*105OPS

Insulation Resistance:

1000MΩ

Dielectric Withstand Voltage:

4500VAC

Action Time (Max.):

20ms

Release Time (Max.):

10ms

Ambient Temperature:

-40℃ ~ 85℃

Exit End Method:

THT & QT

Rated Voltage:

(5-48)VDC

Rated Coil Power:

0.9W

UL Insulation Class:

Class F Insulation Class

External Dimensions:

30.5 X 16 X 23.5mm & 30.5 X 16 X 26.5mm


BaoCheng Relay Applications:

Power relays serve as critical components in a broad range of applications, extending from household appliances to automation systems, electronic equipment, standalone instruments, communication devices, remote control systems, and environmental protection products. They play a key role in managing and regulating the power supply, ensuring that the diverse devices function optimally and safely.
