Categories | Chair Testing Machine |
---|---|
Brand Name: | Gaoxin |
Model Number: | GX-2332 |
Certification: | ISO 2008 |
Place of Origin: | China |
MOQ: | 1set |
Price: | negotiation |
Payment Terms: | FOB Shenzhen, L/C, T/T, Western Union |
Supply Ability: | 50 sets per month |
Delivery Time: | 15 working days |
Packaging Details: | Non-fumigation wooden box |
material: | 304# stainless steel |
color: | silver |
type: | horizontal type |
structure: | single column |
fixture: | Pneumatic Structure |
usage: | Test anti-compression of pedestal |
applicable object: | small electronics |
falling method: | multi angle (edge, corner, surface) |

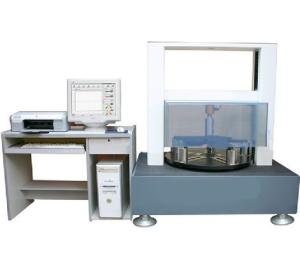

Pedestal Compression Resistance Tester In Office Chair Testing Machine
Quick Details
Alternative name | Office chair durability tester |
Function | Test durability of office chair |
Type | Micro computer controller |
Weight | 150kg |
Volume | 1350×1200×2130 mm(W×D×H) |
Corresponding test standard | CNS 8158 QB/T 2155-2004 |
Product Summary
Through pressing specific vertical load to office chair, the tester is specialized in test compression resistance of five-spider pedestal of office chair.
Technical Parameter:
Model | GX-2330 |
Capacity | 2000kg-50000kg |
Accuracy of load | ±0.25% |
Unit switch | Kgf, N, lb |
Drive mode | Servo motor synchronous drive |
Max. stroke | 800mm |
Valid width | 700mm |
Displacement resolution | 0.0005 |
Displayer | Computer |
Power | AC-220V 50HZ 15A |
General information
Place of Origin | China |
Brand Name | Gaoxin |
Model Number | GX-2332 |
Transaction terms
Minimum Order Quantity | 1set |
Price | negotiation |
Packaging Details | Non-fumigation wooden box |
Delivery Time | 15 working days |
Payment Terms | FOB Shenzhen |
Supply Ability | 50 sets per month |
![]() |
