| Brand Name: | Sreada |
| Model Number: | SRD.ZXG.1B.306.HLN |
| Place of Origin: | China |
| MOQ: | 50 Sets |
| Price: | $3.00 - $30.00/Sets |
| Supply Ability: | 5000 Set/Sets per Week |
| Packaging Details: | Neutral or customized packing accepted |
| Pins: | 6p |
| Housing Material: | Brass(chrome plated)shell |
| Specifications: | Low Voltage |
| Contact Type: | Solder |
| Durability(Shel): | 5000 mating cycles |
| Temperature: | -45℃~+125℃ |
| Humidity(max): | ≤95%[at 60℃/140F] |
| IP Rating: | 50 |
| Company Info. |
| Shenzhen Sreada Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
PCB Board 6 Pin Circular Push Pull Connectors Elbow 90° Socket With Two Nuts For Printed Circuit
Main features Of PCB Board 6 Pin Elbow 90° Socket:

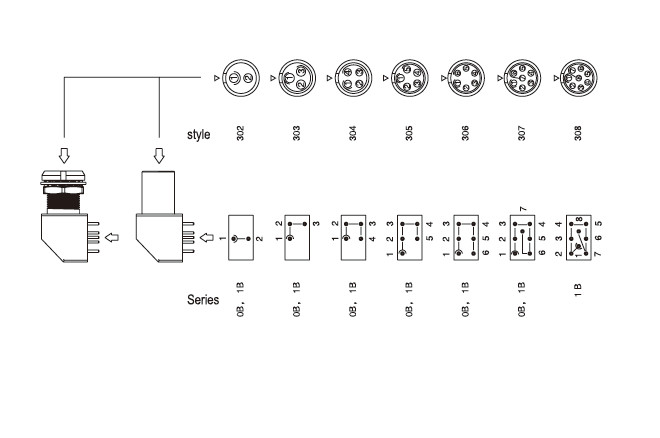

1. Multicore types with 2 to 32 pins
2. Solder or print contacts(straight or elbow)
3. Keying system for connector alignment
4. 360-degree screening for full EMC protection
5. High-density installation for space-saving
Specifications of PCB Board 6 Pin Elbow 90° Socket:
| Insert | 6 low voltage |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -45 deg C |
| Temp (max) | +125 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | 50 |
| Shielding (min) | 75 dB (10 MHz) |
| P op (max) | 60 bar (870 psi) |
Applications of PCB Board 6 Pin Elbow 90° Socket:
ZXG.1B.306 socket is a elbow ( 90°) socket for printed circuit with two nuts. You can pick the right size you want according to your panel cut-outs and other parameters. ZXG.1B.306 socket widely used in many area like medical, test&measurement, sensors, data acquisition, TV and motion picture, HD and SD cameras, remote camera control and so on.
