round stainless steel multi cartridge filter housing suppliers 200 GPM in ro plant Sanitary

Categories Cartridge Filter Housing
Brand Name: Yuwei
Model Number: YWLX
Certification: CE,ISO
Place of Origin: China
MOQ: 1
Price: USD+500-10000+set
Payment Terms: Western Union, T/T, D/P, D/A, MoneyGram, L/C
Supply Ability: 500+set+per month
Delivery Time: 5-8 days
Packaging Details: wooden case or neaked by container
Product namee: Cartridge Filter
Material: SS304
Capacity: 200 GPM
Cartridge Size: 10"
Inlet/Outlet Dia: DN50
Height: 650mm
Housing Diameter: 160mm
O-rings: silicone
Usage: juice
Warranty: 1 year
Filter housing cartridge: PP/SS304/SS316L
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

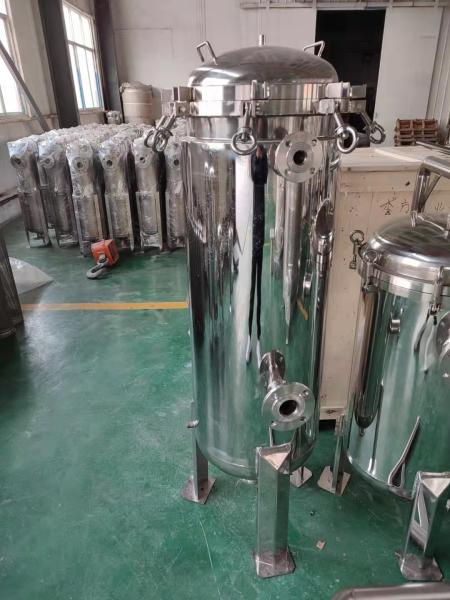

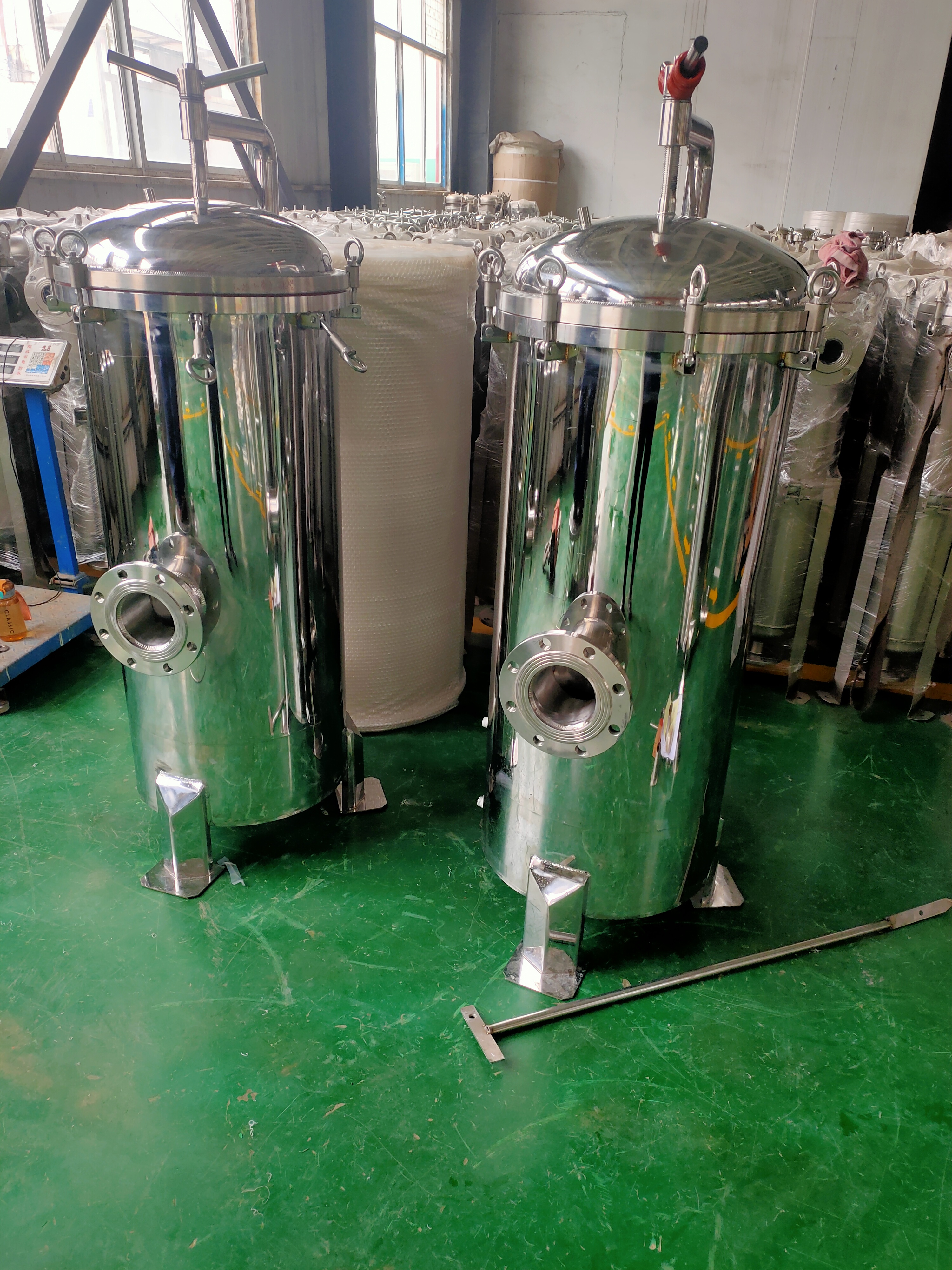

round stainless steel multi cartridge filter housing suppliers 200 GPM in ro plant Sanitary

Customize Sanitary Stainless Steel Multi Cartridge Filter


Technical parameters:
1. Design pressure: More than 0.6Mpa
2. Work pressure: 0.1-0.4MPa
3. Design temperature: Normal temperature
4. Sealing material: Butyl rubber, silicone, fluorine rubber standard, standard configuration is silica gel seal
5. Interface form: Threaded, bar clasp, GB standard flange
6. Applicable filter: Flat crush type PP great filter / 222 socket filter
7. Surface treatment: Mirror polishing, electrolytic polishing, sandblast external surface
8. Filtration precision: 1um - 100um
9. Material: SUS304, SUS316, SUS316L


Specification


Theoretical flowFilter CartridgeInlet/OutletConnrctionTypeDimension(mm)
T/HQTYLengthABCDE
0.3-0.5110"DN20Fast Assembly/Flange60040080100220
0.6-120"DN20800650
1-1.530"DN201050900
1-1.5310"DN25650450120200320
1.5-320"DN25900700
3-4.530"DN321150950
1.5-2.5510"DN32650450120220350
3-520"DN32900700
5-730"DN401150950
2-3.5710"DN40950700150250400
4-720"DN501200950
7-1030"DN5014501200
6-8920"DN501000700150300450
8-1230"DN501250950
12-1540"DN5015001200
6-121220"DN50Flange1100800200350500
12-1830"DN6513501050
16-2440"DN6516001300
8-151520"DN501100800200400550
18-2530"DN6513501050
20-3040"DN8016001300
12-212120"DN651150800200450600
21-3130"DN8014001100
27-4240"DN10016501300
