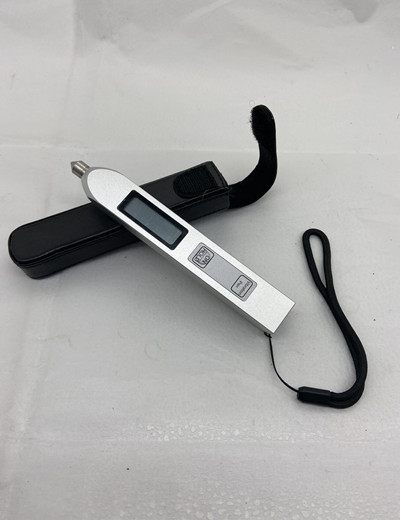

For Fast Failure Detecting Of Motor Pen Type Portable Digital Vibration Meter
Detailed Product Description
Portable Digital Vibration Meter Vibrapen For Fast Failure
Detecting Of Motor
Features:
·Used for fast failure detecting of motor, electric fan, pump, air
compressor, machine tools and so on.
·Compact size, small weight, easy handling
·Prompt testing of vibration on the workshop machines
·For quick checking of unbalance misalignment, bearings and gears
·Guard against mechanical malfunction
·Holding tested value for 40 seconds
·Automatic switch off after 40 seconds
·HG6430 is used for acceleration, velocity and displacement testing
Technical Specifications:
| Model | HG6430 |
| Parameter | Acceleration, Velocity, Displacement |
| Testing range | Acceleration:0.1m/s2-199.9m/s2(peak) Velocity: 0.1mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak) |
| Frequency range | Acceleration: 10Hz ~ 1kHz(LO) 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz |
| Accuracy | ±5% ± 2digits |
| Display | 3 1/2 digits LCD |
| Power supply | two button batteries(LR44 or SR44) |
| Battery capacity | Approx. 5 hours working continuously |
| Operating temperature | 0℃ ~ 40℃ |
| Humidity | <85% |
| Dimension | 150mm×22mm×16mm |
Configuration:
| NO. | Item | Quantity | |
Standard Configuration | 1 | Main uni. | 1 |
| 2 | Screwdriver | 1 | |
| 3 | Batteries SR44LR44 1.5V | 2 | |
| 4 | Box | 1 | |
| 5 | Document | 1(set) |
|
