Name: Metric Unit Version Multi Parameter Vibration Meter Machine Condition Checker
Brand: HUATEC
Price: 1 USD

Home > Counters >

Metric Unit Version Multi Parameter Vibration Meter Machine Condition Checker

Categories	Non Destructive Testing Equipment
Brand Name:	HUATEC
Model Number:	HG-6450-6 pen type
Certification:	ISO，CE，Gost
Place of Origin:	China
MOQ:	1 set
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	100 sets per month
Delivery Time:	3-7 days
Packaging Details:	in High quality carton
Product name:	Vibration meter
Model:	HG-6450-6 pen type
Battery:	1/2 AA, 3.6V, 20-29mA
Dimensions:	1103517 mm

Contact Now

Add to Cart

Company Info.

HUATEC GROUP CORPORATION

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Metric Unit Version Multi Parameter Vibration Meter Machine Condition Checker

Metric Unit Version Multi-Parameter Machine Condition Checker Vibration Meter

1.Features:
•Multi-parameter vibration, bearing parameter (acceleration envelope) & IR temperature measuring
•One button control power, parameter selection, ISO10816 group selection, measurement and holding.
•With remote switch and magnet base to avoid handheld problem to get reliable and consistent data.
•Measuring vibration velocity, displacement & acceleration envelope to check machine/bearing health with yellow/red/green LED indicator
•Build-in ISO10816-2 & -3 groups selectable
•With magnet base and remote switch
•Sensor included, Easy to use.
•Automatic power off. 4 digital LCD display
•Metal case, Robust, Reliable
•Metric(ACC: m/s2, VEL:mm/s, DISP:micron) & English(ACC:g, VEL:inch/s, DISP:Mil) Units selectable

2.Specifications:

•Liner Accuracy at 80Hz: + 5% + 2 digits

•Measurement Range & Frequency Response & Accuracy:

Acceleration Peak (m/s2): 1 to 100, 10~960Hz, ± 10%; 1 to 35, 20~950Hz, ± 5%

Velocity RMS (mm/s): 1 to 70 / 10Hz~1000Hz, ± 10%; 1.0 to 50, 20~1000Hz, ± 5%

Displacement P_P(micron): 1 to 500 / 20Hz~500Hz , ± 10%; 2 to 500, 20~450Hz, ± 5%

Enveloped Acceleration (unit): 1 to 25, 5Hz~2kHz demodulated from 3kHz~10kHz, ± 10%

Temperature(oC ):-33 to 220

•Battery: 1/2 AA, 3.6V, 20-29mA, >100 hours of continuous operation.

•Pickup: Integrated accelerometer with extension stinger and magnet base

•Dimensions: 110x35x17 mm; Weight: 100 g (Including battery)

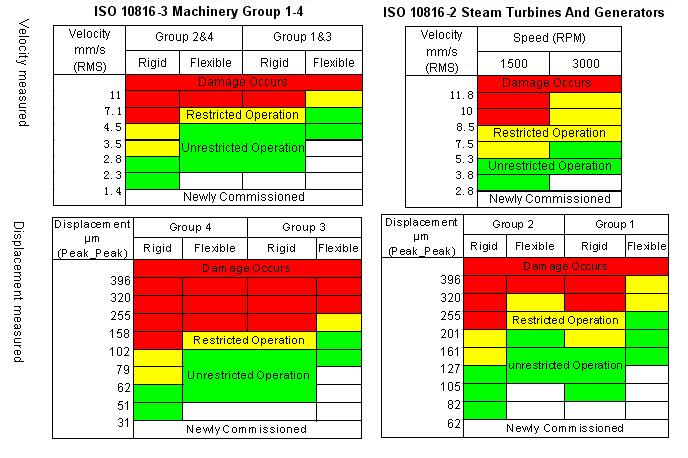

Indicator for machine health according to ISO 10816-2/3:

3.Standard delivery:
HUATEC HG6450-6 1pc
Testing needle 2pcs (1 long 1 short),
Remote switch unit with cable 1pc
Magnetic base 1pc
Manual 1pc
Certificate 1pc
Tools kit 1pc
