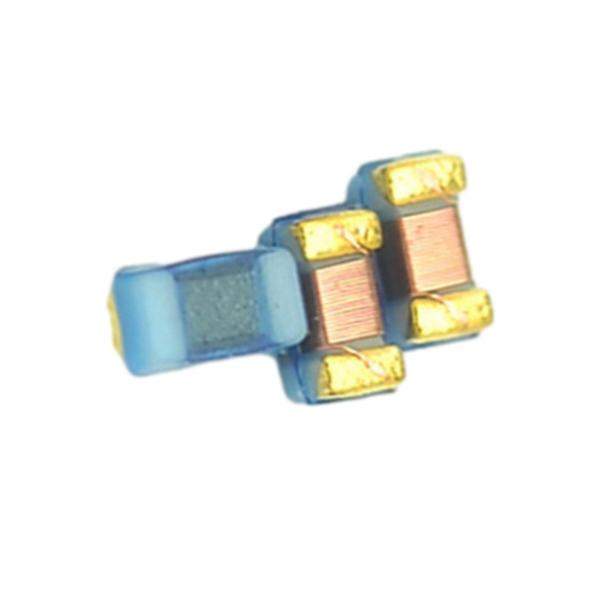

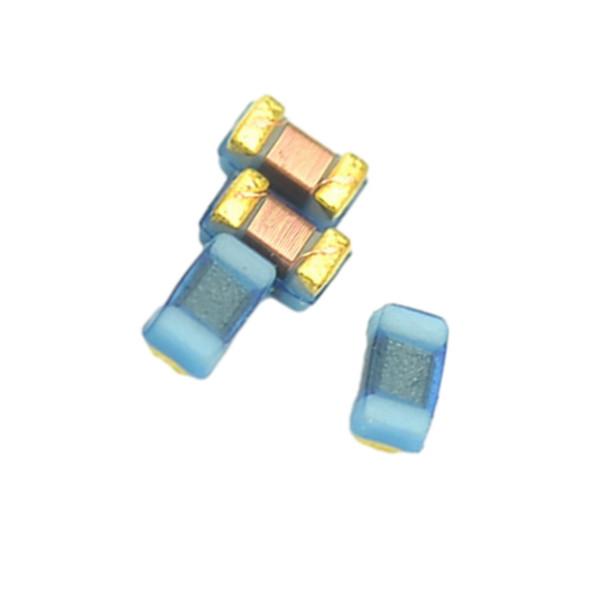

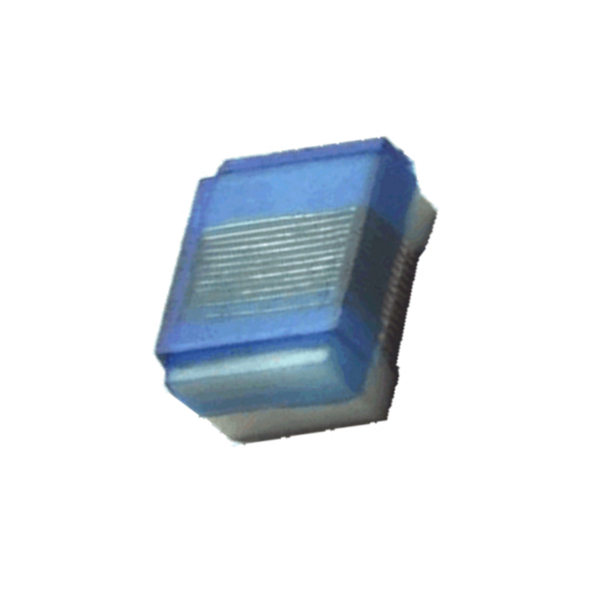

SMD Wire Wound Chip Inductor , Ferrite Chip Inductor For Consumer Products

SMD Chip Wire Wound Power SMD High Frequency Inductor For Consumer Products

Features:

• Small chip suitable for surface mounting；
• High Q value and high self-resonant frequency with ceramic material；
• Tight inductance tolerance and stable inductance； at high frequency；
• Magnetically shielded construction, low DC resistance；
• RoHS Compliant.

Application:

• High frequency circuit in telecommunication and other equipments；
• Mobile phones such as GSM, CDMA, PDC, etc；
• LED Lighting
• Molding Power Inductor Integrated Inductors SMD For Notebooks Desktop Computers Servers

Specification:

Shape and dimension(unit:mm)

Packaging Quantity:

Electrical Characteristics :

• Operating and storage temperature range (individual chip without packing): cking): -25℃ ~ +125℃
• Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.)

Note:

• Maximum allowable DC current is that which causes a 10% inductance reduction from the initial

​ value, or coil temperature to rise by 40°C,whichever is smaller. (Reference ambient temperature 20°C).

• Operating temperature -55℃ ~ +125℃.
• All test data is referenced to 25℃ ambient.

FAQ:

• Can you provide samples?

Yes, we can provide samples for free.

• How long does the sample lead time take?

Sample delivery takes about 7-14 days.

• How long does the sample lead time take?

Sample delivery takes about 7-14 days.
