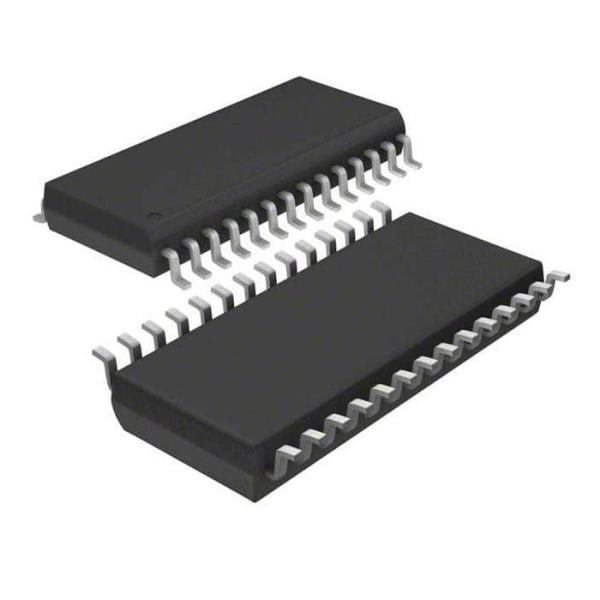

2.7V-5.25V Data Acquisition IC ADS1248IPW 24BIT SIGMA-DELTA 28TSSOP Texas Instruments

2.7V-5.25V Data Acquisition IC ADS1248IPW 24BIT SIGMA-DELTA 28TSSOP Texas Instruments

2.7V-5.25V Data Acquisition IC ADS1248IPW 24BIT SIGMA-DELTA 28TSSOP Texas Instruments
2.7V-5.25V Data Acquisition IC ADS1248IPW 24BIT SIGMA-DELTA 28TSSOP Texas Instruments
Categories Data Acquisition IC
Brand Name: Texas Instruments
Model Number: ADS1248IPW
MOQ: 1
Price: Based on current price
Payment Terms: T/T
Supply Ability: In stock
Delivery Time: 3-5 work days
Packaging Details: anti-static bag & cardboard box
Number of Bits: 24
Sampling Rate (Per Second): 2k
Number of Inputs: 4, 7
Input Type: Differential, Single Ended
Data Interface: SPI
Configuration: MUX-PGA-ADC
Ratio - S/H:ADC: -
Number of A/D Converters: 1
Architecture: Sigma-Delta
Reference Type: External, Internal
Voltage - Supply, Analog: 2.7V ~ 5.25V
Voltage - Supply, Digital: 2.7V ~ 5.25V
Features: PGA, Temperature Sensor
Operating Temperature: -40°C ~ 105°C
Package / Case: 28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package: 28-TSSOP
Mounting Type: Surface Mount
Contact Now
Company Info.
Sanhuang electronics (Hong Kong) Co., Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2.7V-5.25V Data Acquisition IC ADS1248IPW 24BIT SIGMA-DELTA 28TSSOP Texas Instruments

ADS1248IPW IC ADC 24BIT SIGMA-DELTA 28TSSOP Texas Instruments

Product Details


DESCRIPTION

The ADS1225 and ADS1226 are 24-bit delta-sigma analog-to-digital (A/D) converters. They offer excellent performance, ease-of-use, and low power in a small 4mm × 4mm QFN package and are well-suited for demanding high-resolution measurements, especially in portable and other space-saving and power-constrained applications.

FEATURES

• 100SPS Data Rate (High-Speed Mode)
• Single-Cycle Settling
• Easy Conversion Control with START Pin
• Automatic Shutdown
• Low Noise: 4µVRMS Noise (High-Resolution Mode)
• Input Multiplexer with Two Differential Channels (ADS1226)
• Voltage Reference Supports Ratiometric Measurements
• Self-Calibrating
• Simple Read-Only 2-Wire Serial Interface
• Internal High-Impedance Input Buffer
• Internal Temperature Sensor
• Internal Oscillator
• Low-Power: 1mW While Operating, < 1µA During Shutdown
• Analog and Digital Supplies: 2.7V to 5.5V

APPLICATIONS

• Hand-Held Instrumentation
• Portable Medical Equipment
• Industrial Process Control

Specifications

AttributeAttribute Value
ManufacturerTexas Instruments
Product CategoryAnalog to Digital Converters (ADC)
Series-
Input-TypeDifferential Single Ended
Operating-Temperature-40°C ~ 105°C
Mounting-TypeSurface Mount
FeaturesPGA Temperature Sensor
Supplier-Device-Package28-TSSOP
Sampling-Rate-Per-Second2k
Data-InterfaceSPI
Number-of-Bits24 Bits
Voltage-Supply-Analog2．7V ~ 5．25V
Voltage-Supply-Digital2．7V ~ 5．25V
ConfigurationMUX-PGA-ADC
ArchitectureSigma-Delta
Number-of-Inputs4 7
Reference-TypeExternal Internal
Number-of-A-D-Converters1
Package-Case28-TSSOP (0．173" 4．40mm Width)
PackageTube
ManufacturerTexas Instruments
Product-StatusActive
Base-Product-NumberADS1248
Ratio-S-HADC

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#DescriptionManufacturerCompare
ADS1248IPWR
Converters		24-Bit, 2kSPS, 8-Ch Delta-Sigma ADC for Precision Sensor Measurement 28-TSSOP -40 to 125Texas InstrumentsADS1248IPW vs ADS1248IPWR

Descriptions

7-Channel Single ADC Delta-Sigma 2ksps 24-bit Serial 28-Pin TSSOP Tube
Analog to Digital Converters - ADC Low Noise,Prec 24B ADC
