| Categories | Digital Printing Plotter |
|---|---|
| Brand Name: | FEDAR |
| Model Number: | FD65-2 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 Set |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS PER DAY |
| Delivery Time: | 7-10 DAYS |
| Packaging Details: | EXPORT CRATE |
| Head Type: | EPSON I3200-A1 Head |
| Max Printing Width: | 60cm |
| Head Quantity: | 2 heads |
| Usage: | Pyrograph Film Printing |
| Color: | CMYK + W |
| Type: | Fedar Sublimation Printer |
| Rip Software: | Maintop |
| Ink Type: | Pigment ink / Paint ink |
| FD65-2 Digital Printing Plotter With Shake Powder | ||||
| Printhead | EPS I3200-A1 | Nozzle Quantity | 3200 | |
| Printhead Quantity | 2 | Print Width | 600mm | |
| Ink Color | CMYK+W Pigment Ink | Print Height | 2-5mm | |
| Resolution | 360*1200/360*1800/ 720*1200/720*1800(DPI) | Media | Pyrograph Film | |
| Speed *Tested on linear printing without feather function | 2pass | 98㎡/h | Drying Method | Extra Dryer Device |
| 3pass | 64㎡/h | Ink Supply Method | Siphon Positive Pressure Ink Supply | |
| 4pass | 50㎡/h | Head Moisture Method | Auto Head Cleaning and Moisturize | |
| 6pass | 32㎡/h | Ink Cycle | Auto White ink cycle | |
| Ink Type | Pigment Ink | Transmission Interface | Gigabit LAN | |
| Computer System | Win7, Win8, Win10(Professional) | File Forms | TIFF, JPG, EPS, PDF, etc. | |
| Operate Environment | Temp.:15℃-30℃, Humidity: 35℃-65℃ | RIP Software | NeoStanpa,Ergosoft, Onyx,Photoprint,Maintop | |
| Package Size | 1200*960*1000mm | Power Supply | 210-230V, 50/60HZ, 16A Print Power: 1000W Dryer Power: Max.3500W | |
| Computer Configuration | Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G
GPU: ATI Discrete GPU, Memory: 4G, CPU: Inte I5/I7, G-Ethernet | |||

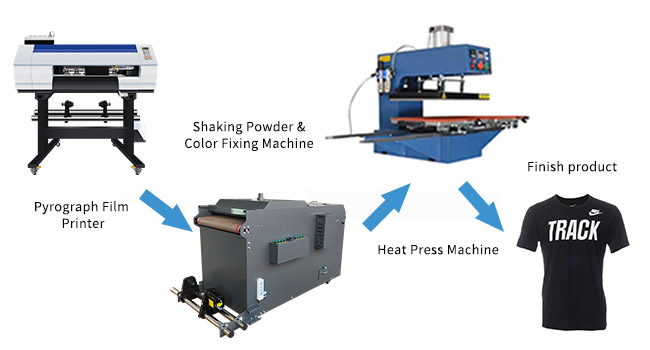

1.Transfer film ink 2.PET Film 3.Powder Shaking
Printing Machine
6.Finished Product 5.Heat Press 4.Printing Pattern
CARRIAGE: ADJUSTABLE CAPPING STATION:
Add Anti-Collision system to protect printhead. Avoid printhead clogging,adjust capping station
up and down.
GUIDE RAIL: LEADSHINE MOTOR:
Import Japan THK guide rail make carriage Leadshine server motor driver,qulaity assurance,
movement lower noise and higher resolution. high resolution and stable.

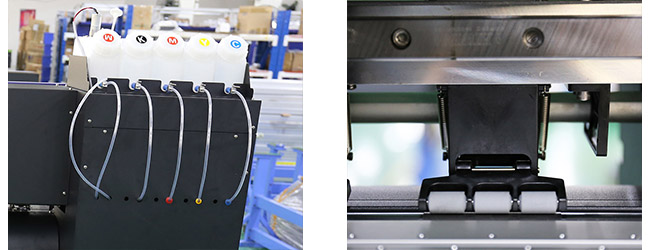

AUTO SUPPLY INK: PINCH ROLLER:
1.5L Big ink tank. Multi-row pinch rollers ensure the accurate movement
of media.
FEATURES
APPLICATION
SHOW EVENTS
Zhengzhou New Century team had won the reputation of TOP 20 exporters in Advertising Equipment
in China and obtained more than 55 patents for the design&3patents for innovation.And have
participated in many exhibitions at home and abroad.Such as the domestic Zhengzhou exhibition,
Shanghai exhibition,Guangzhou exhibition and so on.Participating abroad is Colombia,New Delhi,
Ukraine,Thailand,Italy etc.No matter you are individual or agent, welcome to joins us !
OUR SERVICE
One year warranty,lifetime maintenance beyond the warranty.
Teachnical training and guidance will be provided by ten technicians who can fly to various countries at any time .
More than 2 million yuan were invested on after-sales every year.
Providing remote after-sales service support by online teachnical guidance.
Two more QC is added on export machines to guarantee the quality.Strict controlling on leadtime.
|
