Product Description:
A PU sandwich panel is a particularly desirable material for
industrial and commercial projects. Its poor heat conductivity
allows a building's framework to be made thinner. This lower
thermal conductivity can save money and energy. By keeping a
building cool during the summer and cold during the winter, the PU
sandwich panel can help to reduce energy bills. This material is an
excellent choice for buildings that need to be resistant to rust.
Technical Parameters:
Allowable vertical load and thermal performance of BAODU
polyurethane sandwich wall panel (allowable deflection f≤L/200) | S(mm) | W/m2k | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | 50 | 0.31 | 10.06 | L(m) | 3.52 | 3.04 | 2.69 | 2.42 | 2.11 | 75 | 0.21 | 11.06 | L(m) | 4.71 | 4.09 | 3.64 | 3.29 | 2.89 | 100 | 0.19 | 12.05 | L(m) | 5.76 | 5.02 | 4.47 | 4.05 | 3.56 | 120 | 0.16 | 12.84 | L(m) | 6.53 | 5.68 | 5.07 | 4.60 | 4.04 | 150 | 0.11 | 14.04 | L(m) | 7.56 | 6.58 | 5.87 | 5.32 | 4.68 | Note:0.5mm outer steel sheet and 0.4mm inner steel | Allowable Span and Thermal Conductivity of BAODU Polyurethane Roof
Sandwich Panel(allowable deformation f≤L/240) | S(mm) | W/m2k | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | 30 | 0.32 | 9.32 | L(m) | 2.60 | 2.30 | 2.08 | 1.91 | 1.72 | 50 | 0.31 | 10.15 | L(m) | 3.59 | 3.17 | 2.85 | 2.61 | 2.33 | 75 | 0.21 | 11.18 | L(m) | 4.64 | 4.07 | 3.66 | 3.34 | 2.96 | 100 | 0.19 | 12.22 | L(m) | 5.57 | 4.88 | 4.38 | 3.99 | 3.53 | 120 | 0.16 | 13.05 | L(m) | 6.28 | 5.49 | 4.92 | 4.48 | 3.97 | 150 | 0.11 | 14.3 | L(m) | 7.30 | 6.39 | 5.73 | 5.22 | 4.62 | Note:0.5mm outer steel sheet and 0.4mm inner steel |
|
---|
Applications:
Polyurethane sandwich panels have the advantages of efficient heat
preservation, fire protection, long service life, beautiful
atmosphere, easy installation, etc.
They are widely used in cold storage, fresh-keeping rooms, various
purification rooms, air conditioning rooms, steel structure
workshops, fire protection workshops, warehouses, prefabricated
houses, chicken houses, farm buildings, etc
Support and Services:
Polyurethane Sandwich Panel technical support and services include:
- Installation and maintenance instructions
- Regular technical inspections
- Replacement of any damaged parts
- Troubleshooting any operational problems
- On-site technical support

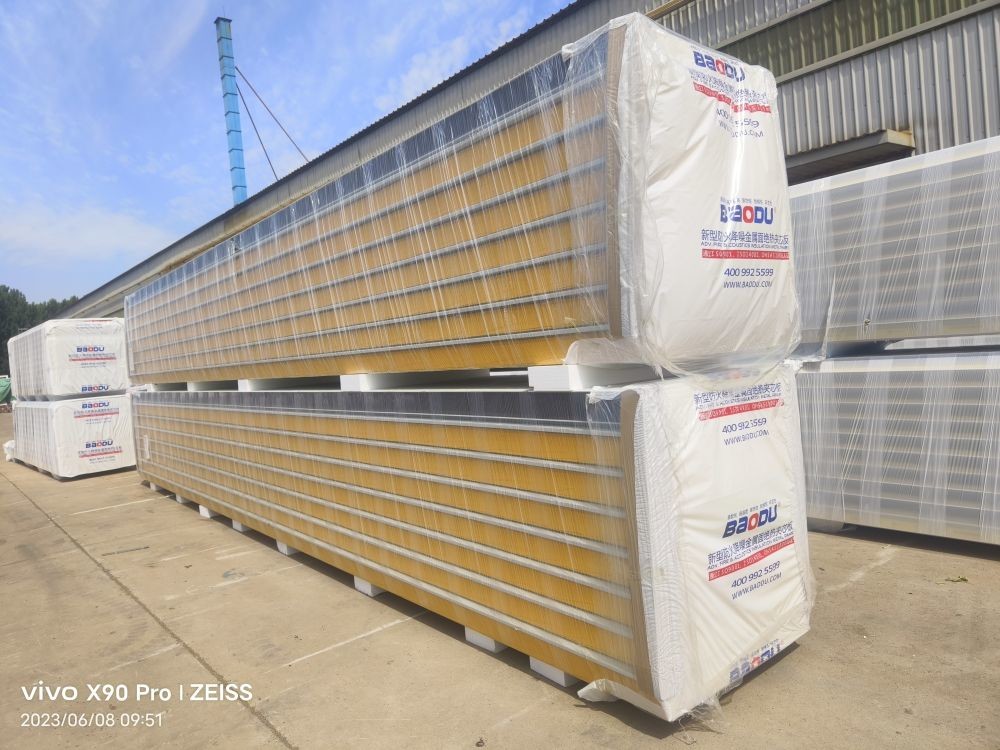

Packing and Shipping:
