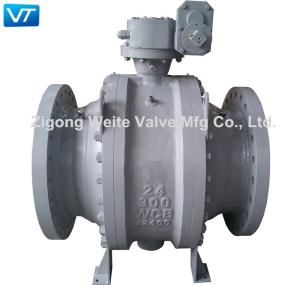

Yellow 24" Class 300 Ball Valve ISO9001 Bare Stem WCC Trunnion Mounted

Categories	Carbon Steel Flanged Ball Valve
Brand Name:	VT
Certification:	API 6D, API 607,TS, ISO 9001,TS
Place of Origin:	Sichuan, China
MOQ:	1 Set
Price:	negotiated
Payment Terms:	L/C, T/T
Supply Ability:	10000 Set Per Year
Packaging Details:	Plywood Case
Name:	Trunnion Mounted Ball Valve
Material:	WCC
Pressure Rating:	Class600
Power:	Bare Stem ISO 5211
Color:	Yellow or Customer's Request
OEM/ODM:	Yes

Contact Now

Add to Cart

Company Info.

ZIGONG WEITE VALVE MFG CO., LTD

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

WCB Carbon Steel Trunnion Mounted Ball Valve Flanged 24'' Class 300

Product Description

The Trunnion Mounted ball valve have two valve seats, which can two direction seal.Therefore there is no restriction

on the installation direction, either side of the valve can be used as the upstream side, it is a two-way valve.

Trunnion Mounted Ball Valve Test Procedure

HYDROSTATIC SEAL TEST API 6D 10.3 and 10.4
Sequence	Area Pressure		Duration(min)		Description
SHELL TEST	A	1.5xPN	6″-10″	5	1. Valve in partial open. 2. Set the pressure to 150% PN. 3. Reduce the pressure to 50% PN. 4. Reset the pressure to 150% PN. 5. Hold the pressure for the duration of testing.
	B	1.5xPN	12″-18″	15
	C	1.5xPN	20″-60″	30
SEAT TEST	A	1.1xPN	5		Seat hydrostatic seal at A end towards body B
	B	Atmospheric
	C	Atmospheric
	A	Atmospheric	5		Seat hydro seal at C end towards body B
	B	Atmospheric
	C	1.1xPN
	A	1.1xPN	5		Seat hydro seal test for both A and C
	B	Atmospheric
	C	1.1xPN
AIR SEAL TEST API 6D 10.4
SEAT TEST	A	Atmospheric	5		Seat air seal test at A end towards body B
	B	Atmospheric
	C	80PSLG(5.5bar)
	A	80PSLG(5.5bar)	5		Seat air seal test at C end towards body B
	B	80PSLG(5.5bar)
	C	Atmospheric

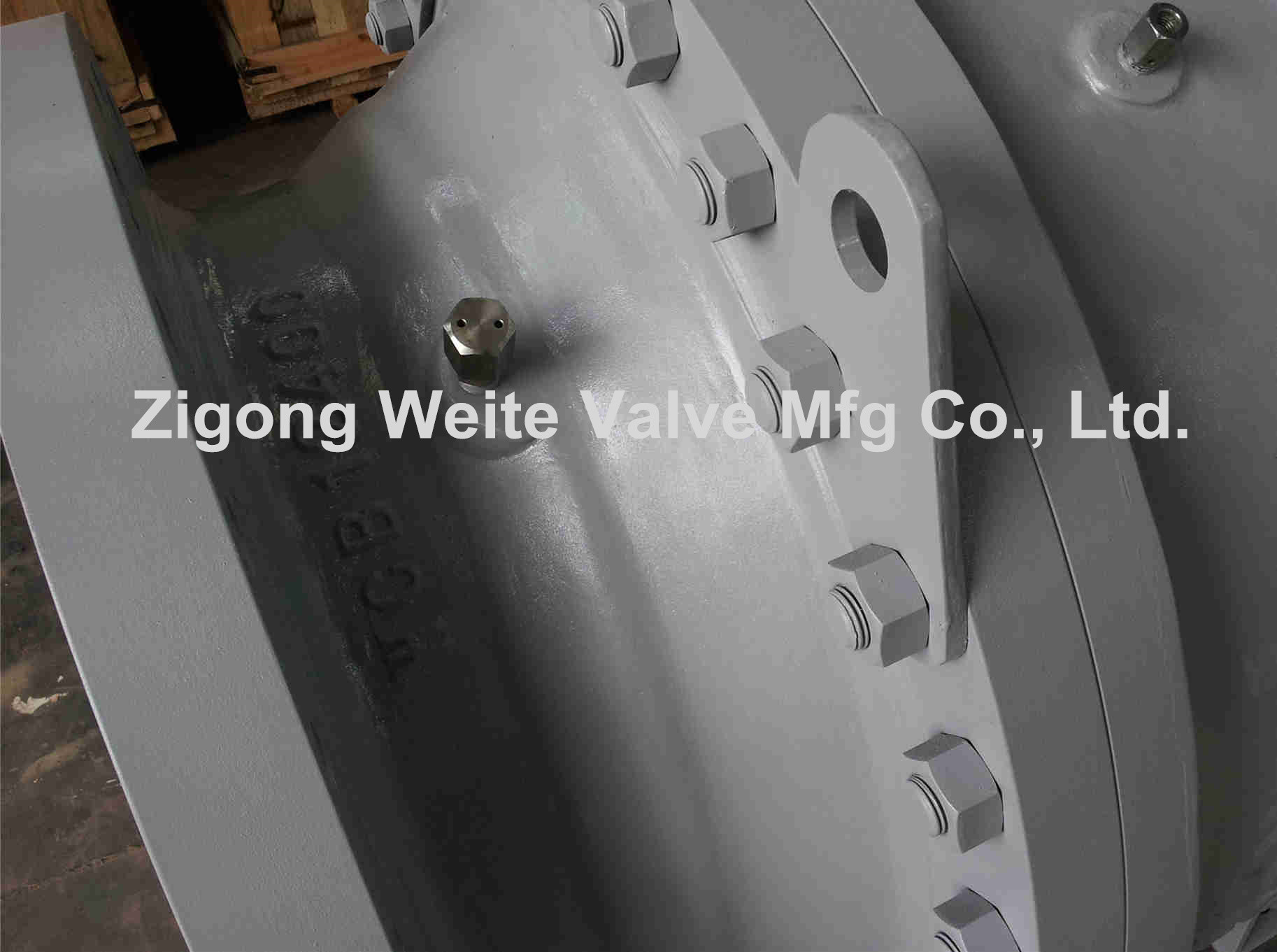

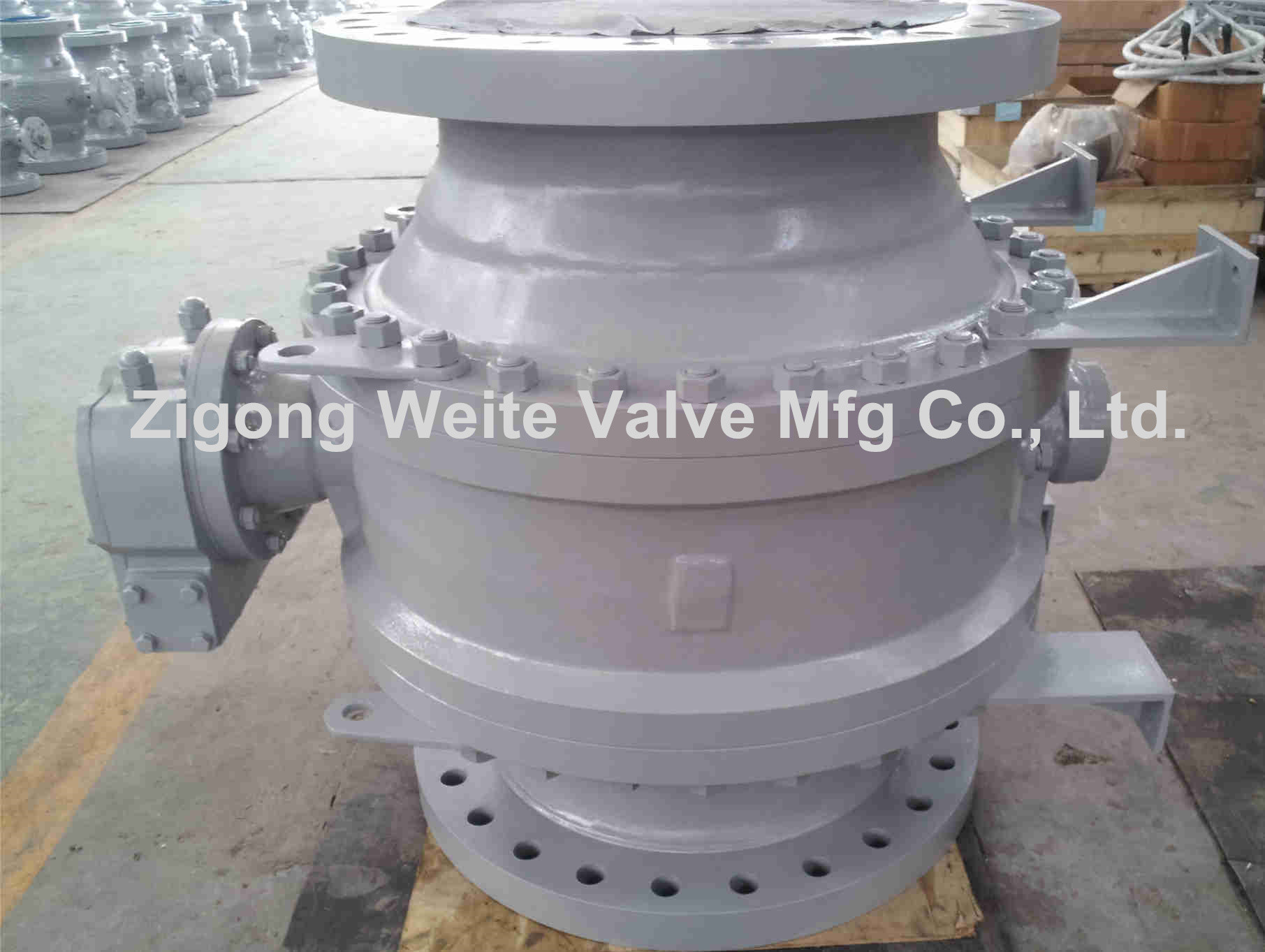

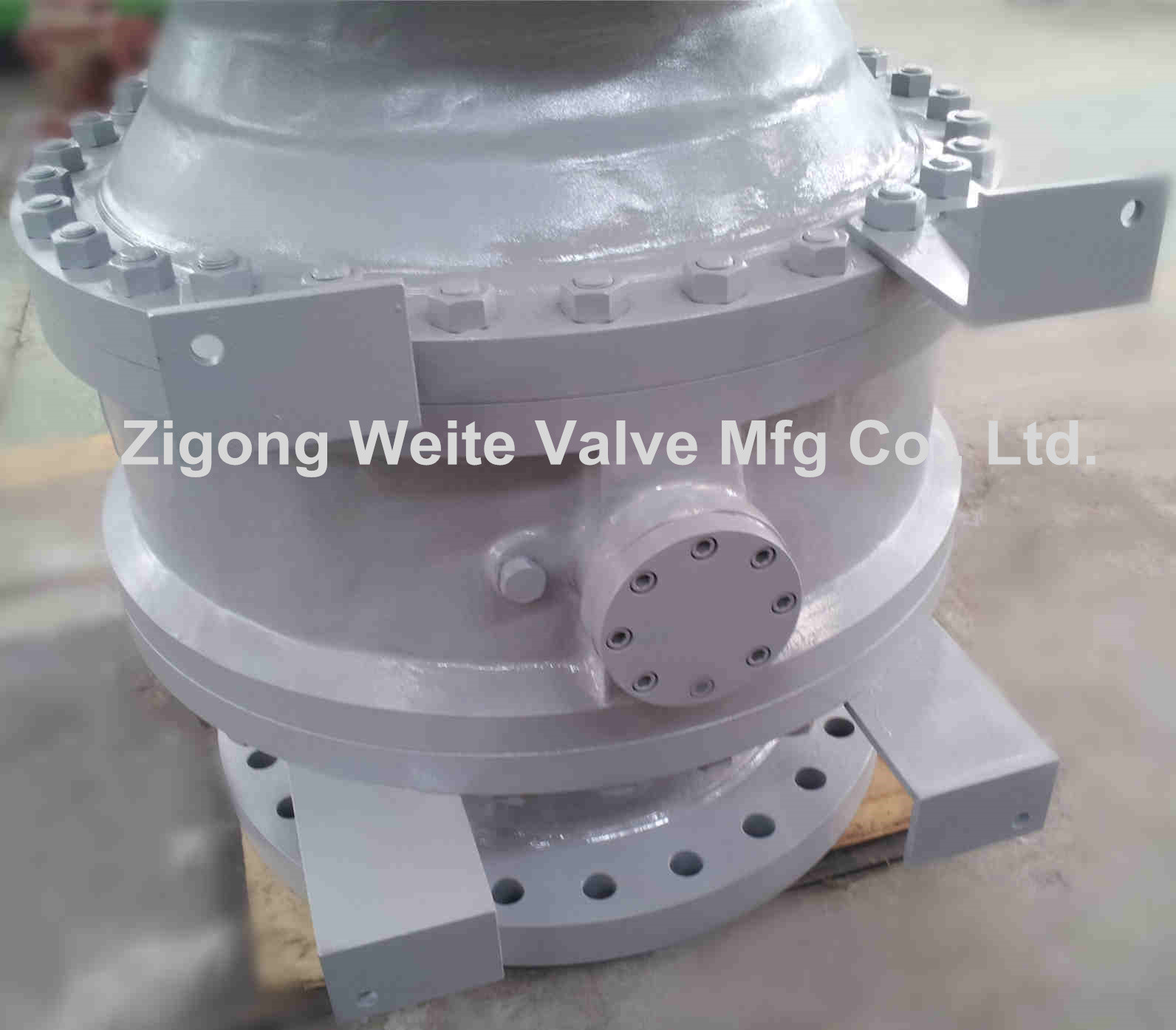

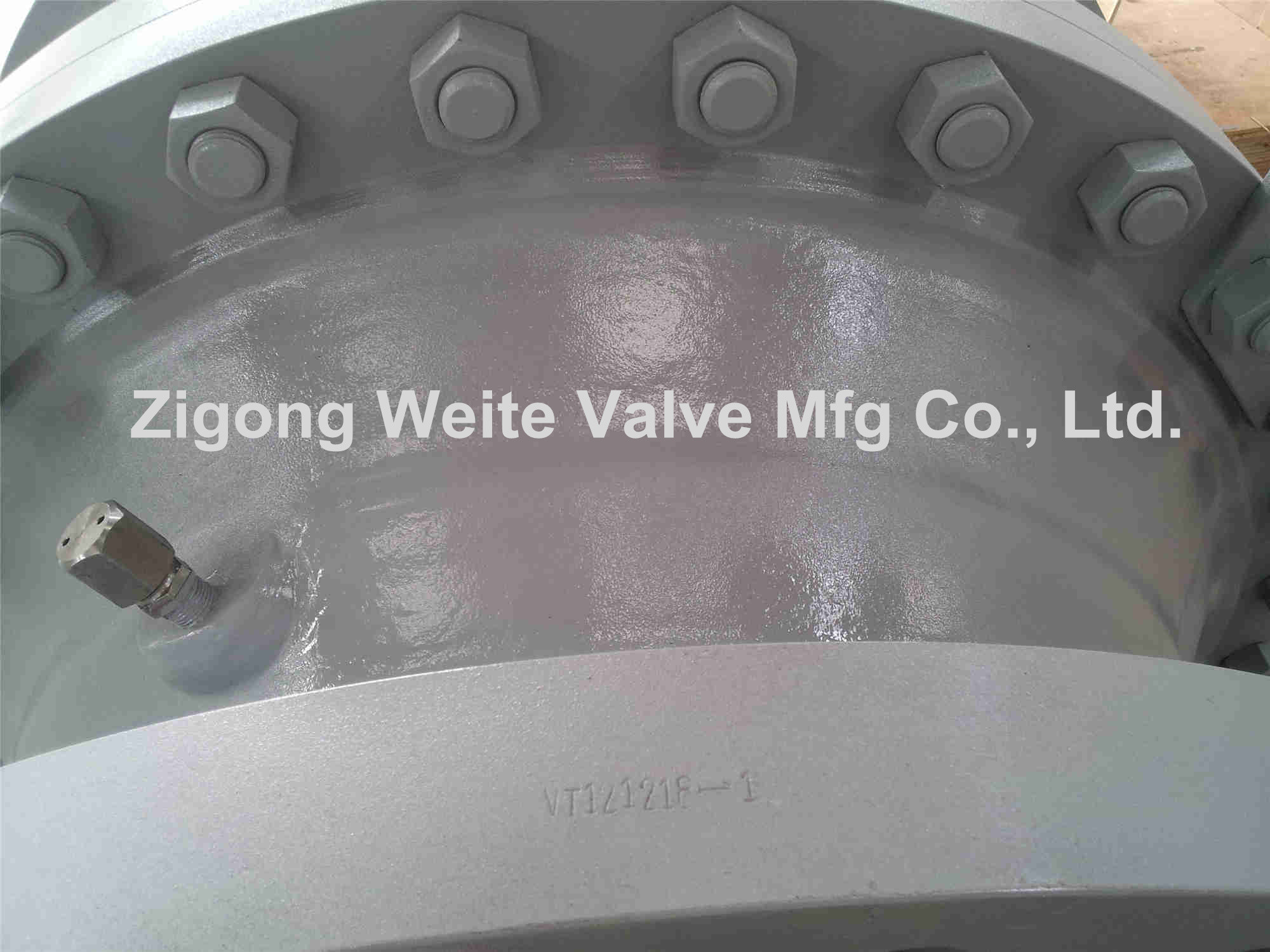

24'' 300LB Carbon Steel Trunnion Mounted Ball Valve Details
