8x4 12 Wheeler 60 Ton Heavy Duty Dump Truck FAW J6P Model LHD Earthmoving With Reinforced Leaf Spring Suspension

Categories Dump Truck
Brand Name: FAW
Model Number: CA3310P66K2L4T4AE5
Certification: CE
Place of Origin: CHINA
MOQ: 1 PIECE
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500PIECE/ MONTH
Delivery Time: 15-30 Day
Packaging Details: Standard Ocean Shipping
Cabin: 6P cab, with sleeper, 2point coil spring suspension,
Engine: FAWDE, CA6DL2-35E5 Engine,
Transmission :: FAW Brand,
Wheel Base: 2100+3600+1350MM
Frame: 300×80×(8+5)mm, Double layer beam.
Tire: 12.00R20-18
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

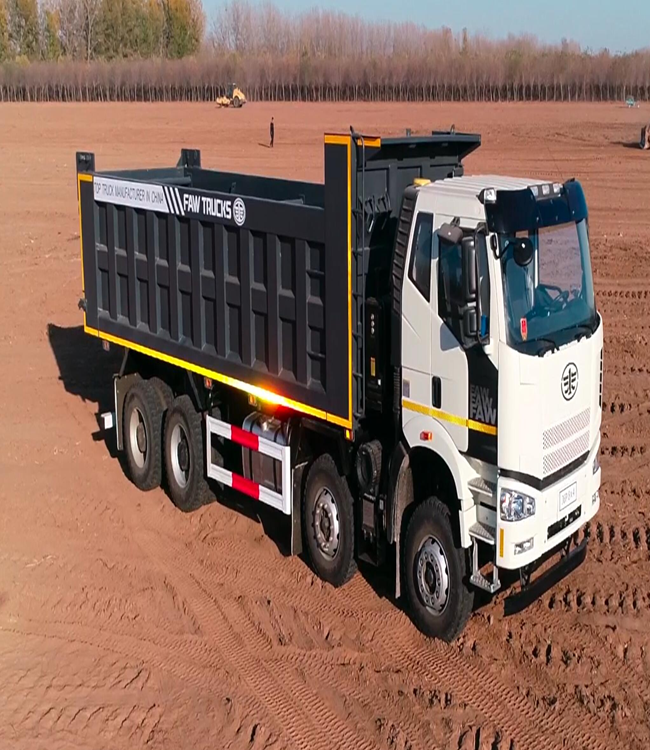

8x4 12 Wheeler 60 Ton Heavy Duty Dump Truck FAW J6P Model LHD Earthmoving With Reinforced Leaf Spring Suspension

FAW J6P Model 8*4 12 Wheeler 60Ton Heavy Duty Dump Truck LHD Earthmoving Dumper With Reinforced Leaf Spring Suspension


Product Description


Dump truck is also called tipper, dump tipping vehicle, sand and stone transporting vehicle, etc.

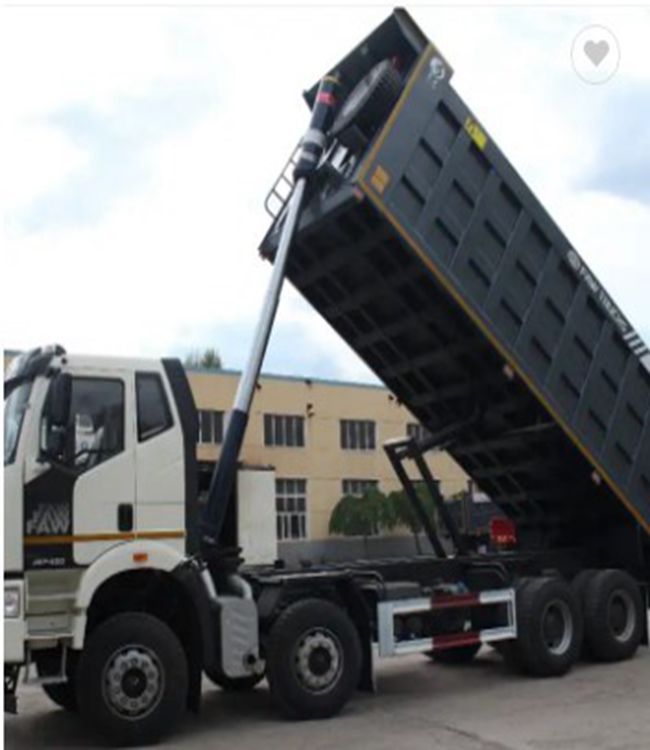

Dump truck is mainly used for transporting loose material (such as sand, gravel, or dirt) for construction. A typical dump truck is equipped with an open-box
bed , which is hinged at the rear and equipped with hydraulic pistons to lift the front , allowing the material in the bed to be deposited dumped on the ground behind the truck at the site of delivery


SN1034H364R1TB01S
CabinJ6P cab, with sleeper, 2point coil spring suspension, power windows, manual mirrors, Auto A/C, Power cab flipping with hydraulic support, 17-Edition interior, Air damping seat
EngineFAWDE, CA6DL2-35E5 Engine, 350HP EU5, BOSCH common rail+SCR, engine brake
TransmissionFAW Brand, CA12TAX160M, 12MT, with PTO
front AxleFront, Model 2020 - 7T
rear axleRear, Model 300 Hub reduction - 16Ton*2, Ratio: 5.921, manual gap adjustment, Double I-Rod V-shape arrangement
Wheel Base2100+3600+1350MM
Frame300×80×(8+5)mm, Double layer beam
Tire12.00R20-18
Body7400*2300*1500mm, Thickness 8mm/6mm, Front lift, China brand pump
Fuel Tank400L, Iron Tank
SuspensionReinforced Leaf Spring

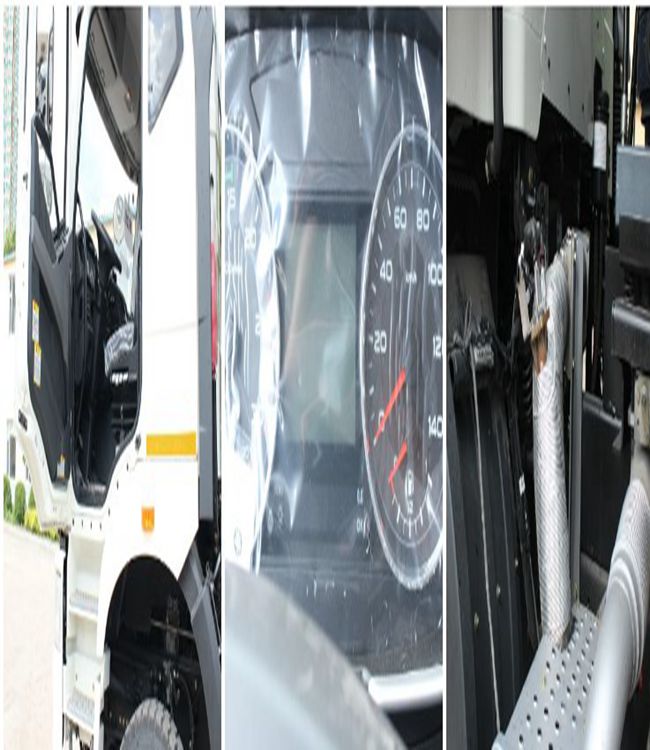

Product details


High fuel efficiency, the average energy consumption (empty warehouse + full load) of JAW dump truck is only 22.56L.

With the interference of many pedestrians and cars, the energy consumption of the block is somewhat surprising , only 14.88L, and the fuel consumption is as low as 30L when the block is full of goods or at a relatively constant speed
