| Categories | Honeycomb Waveguide Air Vents |
|---|---|
| Brand Name: | Jovi |
| Model Number: | 1-CF-4 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 5 pc |
| Price: | $145/pc-$550/pc |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Delivery Time: | within 10-14 wroking days after receiving payment |
| Packaging Details: | in piece and in wooden case |
| Product name: | 5.2mm Cell Size Steel Honeycomb Emi Shielded Faraday Cages 50mm Thickness |
| Type: | MRI Room , Faraday Cage Shielding |
| Frame: | L type / Z type/ Without frame |
| Cell size: | 5.2mm cell |
| Size: | 600mm x 600mm size |
| Usage: | HVAC system, Air outlet,EMC Chamber |
| Company Info. |
| Beijing Hengtai Tech Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

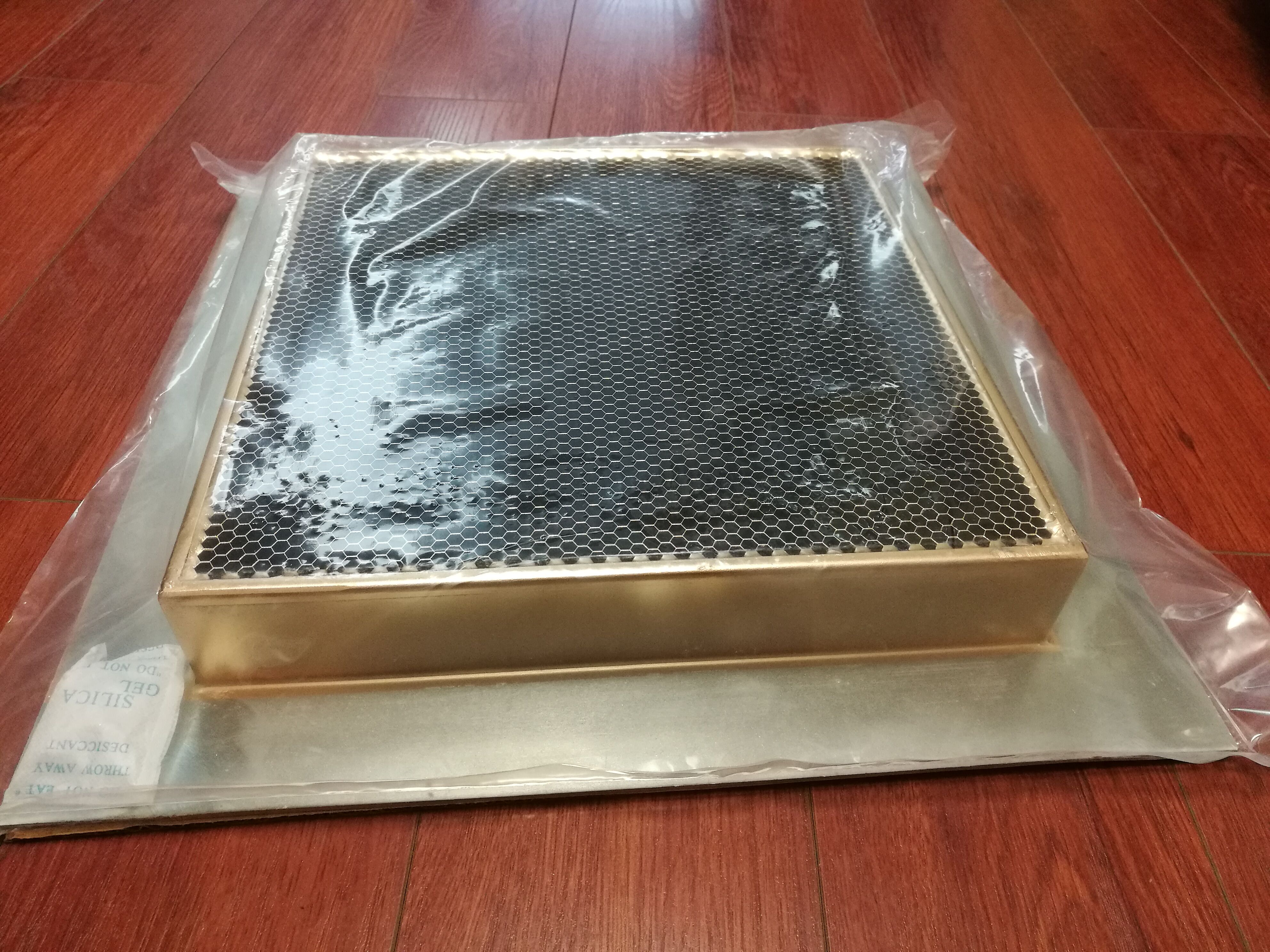

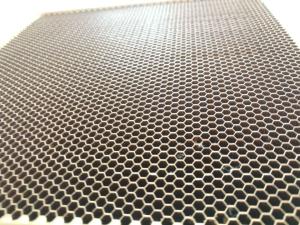

5.2mm Cell Size Steel Honeycomb Emi Shielded Faraday Cages 50mm Thickness
1.Specification:
EMC Woven mesh ventilation panels are used for heating, air flow for cooling and ventilation in electronic enclosures without compromising the shielding integrity of an enclosure.
These panels can be treated with a variety of finishes to provide corrosion protection or improve conductivity. Air filter oil can be applied to the Aluminium filter media to assist in dirt and dust retention. Panels with a gasket groove have a knitted monel wire mesh gasket as standard. Other frames can be provided with an additional EMI Gasket.
2.Details :
In order to maintain the air flow inside the machine room, windows need to be opened on the shielding
shell, but the waveguide window must be installed to meet the response standard. The function of the
waveguide window is to ensure the air flow and prevent the leakage of electromagnetic signal. The ventilation
guide window is the main channel for shielding indoor air to exchange with the outside world, which can effectively
cut off the passage of electromagnetic wave.
| material | brass /Tin plated steel | ||
| core area size 300mm*300mm | hole cell 3.2mm | hole cell 4.2mm | hole cell 5.2mm |
| thickness 25mm | 300mm*300mm*25mm*3.2mm | 300mm*300mm*25mm*4.2mm | 300mm*300mm*25mm*5.2mm |
| thickness 50mm | 300mm*300mm*50mm*3.2mm | 300mm*300mm*50mm*4.2mm | 300mm*300mm*50mm*5.2mm |
3.Benefits
Our Honeycomb Waveguide Air Vents are the perfect solution for air
ventilation for MRI rooms. Their superior corrosion resistance and
low pressure drop allow them to be used in MRI rooms for extended
periods of time. The honeycomb construction and window with frame
offers superior performance and strength, while the ability to
customize the size of the vents allows them to fit any room size.
With their high air flow and low pressure drop, these vents are the
perfect choice for air ventilation in MRI rooms.
Light weight
High shielding performance
Very low air-flow resistance
4.FAQ:
1. Can we get a product sample?
Yes, we can offer sample to you.
2. As for the honeycomb, what materials can you offer ?
We can offer brass / stainless steel/ tin plated steel materials....
|
