Name: 550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory
Brand: WEIKE CNC
Price: 10700 USD

Home > Metal & Metallurgy Machinery >

550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

Categories	Double Head Mitre Saw
Brand Name:	WEIKE CNC
Model Number:	WJM-CNC-550
Certification:	CE ISO
Place of Origin:	China
MOQ:	1
Price:	10700 USD
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	30 Sets / Month
Delivery Time:	10 Working Days
Packaging Details:	Plywood Box
Power Supply:	5.5KW
Air Pressure:	0.8MPa
Rotating Speed:	2800r/min
Saw Blade:	500mm
Cutting Angle:	45 and 90 degree
Overall Dimension:	580015001700mm
Overall Sales:	Viet European South Africa

Contact Now

Add to Cart

Company Info.

Shandong Weike CNC Machinery Co. LTD

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

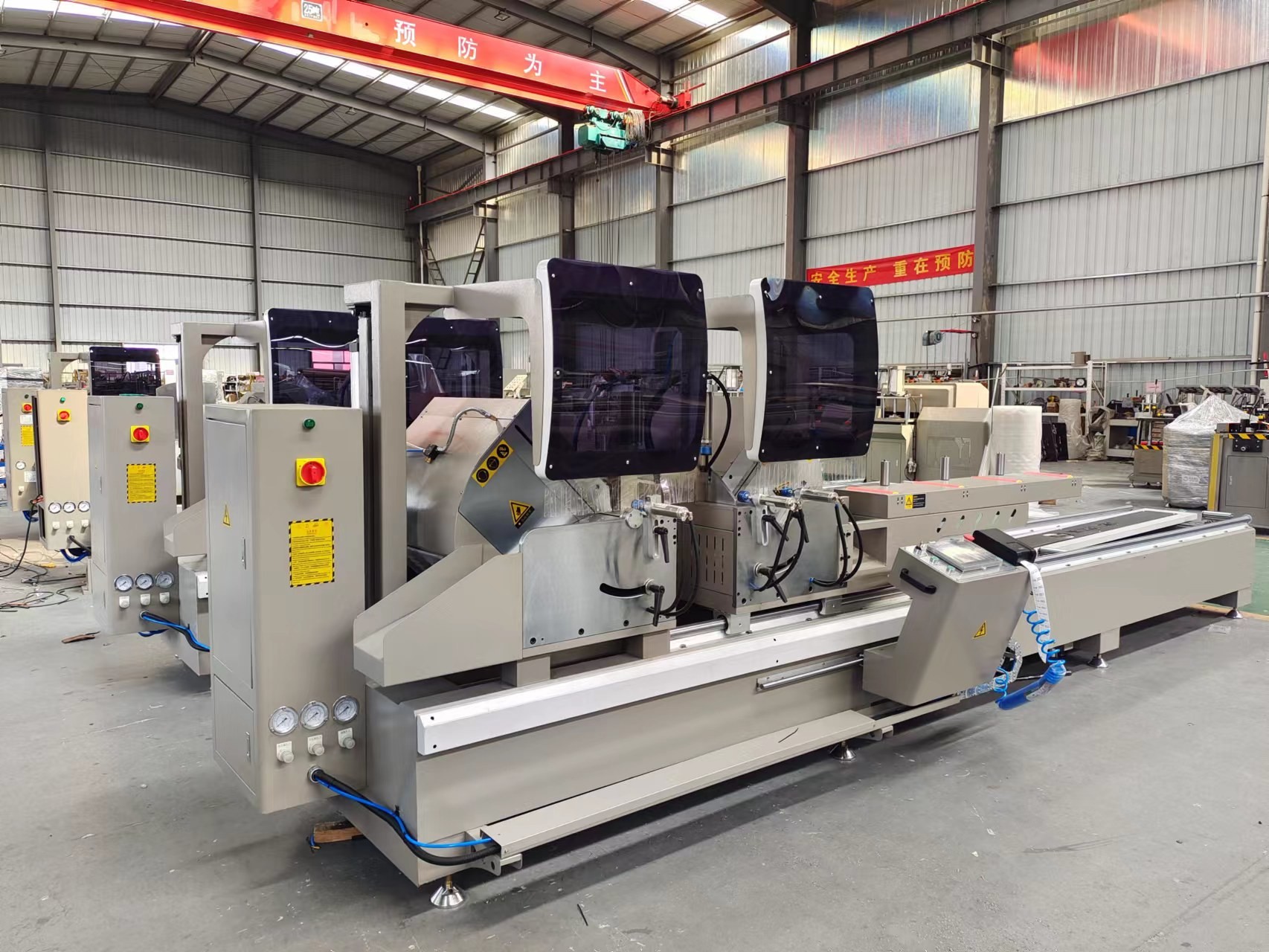

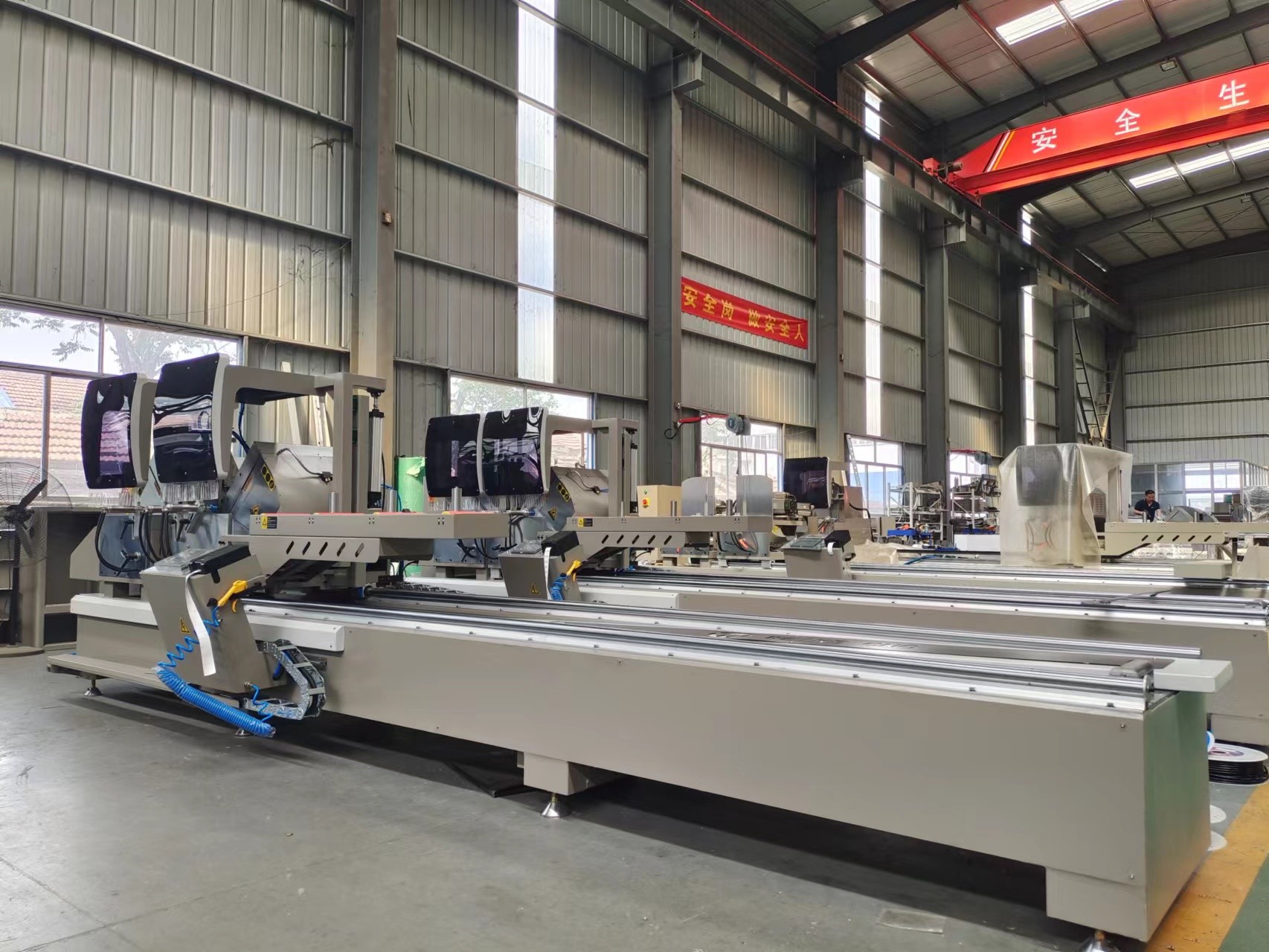

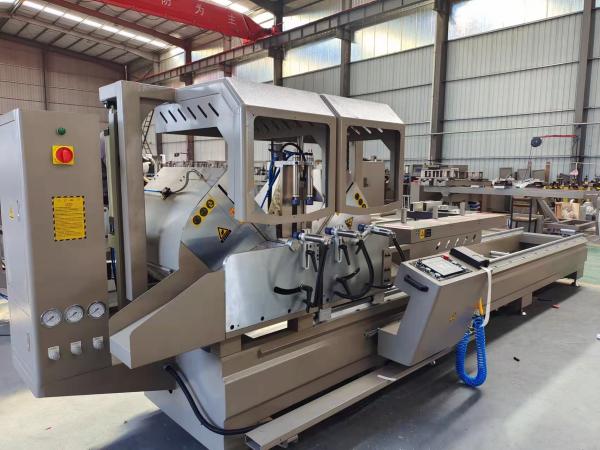

550mm CNC Double Head Mitre Saw for cutting aluminum profile on windows and doors making factory

600mm CNC Double Head Cutting Saw

Front blade sawing machine

1. Main Feature

● Used for cutting metal alloy doors and windows, curtain wall profiles.

● The high-precision spindle makes the saw blade rotate stably.

● Automatically liftable protective hood for safe and comfortable work.

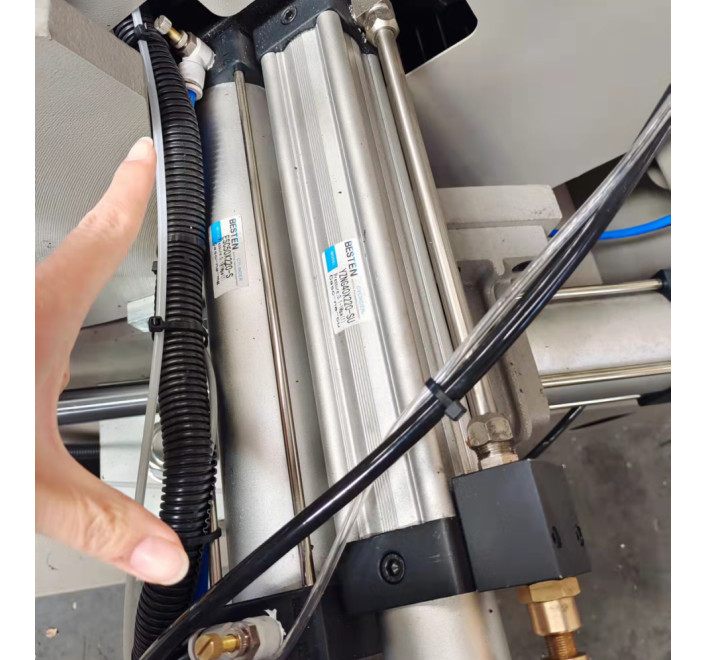

● Gas-liquid damping cylinder ensures smooth forward speed regulation and stable movement.

● It adopts numerical management device to accurately show the length of the cut profile.
● The feeding system uses an imported pair of linear guides, with high precision and long service life.

2. Technical Parameter

● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
● Motor rotary speed: 2800r/min
● Saw blade specification: φ500 / φ600
● Power supply: 380V/50Hz (Can make according your voltage)
● Air pressure: 0.6~0.8MPa
● Overall dimension: 5800 x 1500 x 1700mm
● Weight about: 1650kg
● Cutting angle: 90°45°
● Cutting length: 290~6000mm

Option:

1	Saw Blade: 500/550/600mm
2	Printer
3	Connect with windows design software
4	Main Spindle and Motor Option
5	Cutting length Option
6	Have different machine frame

3. Update Saw During Production:

3. Machine Details And Advantage

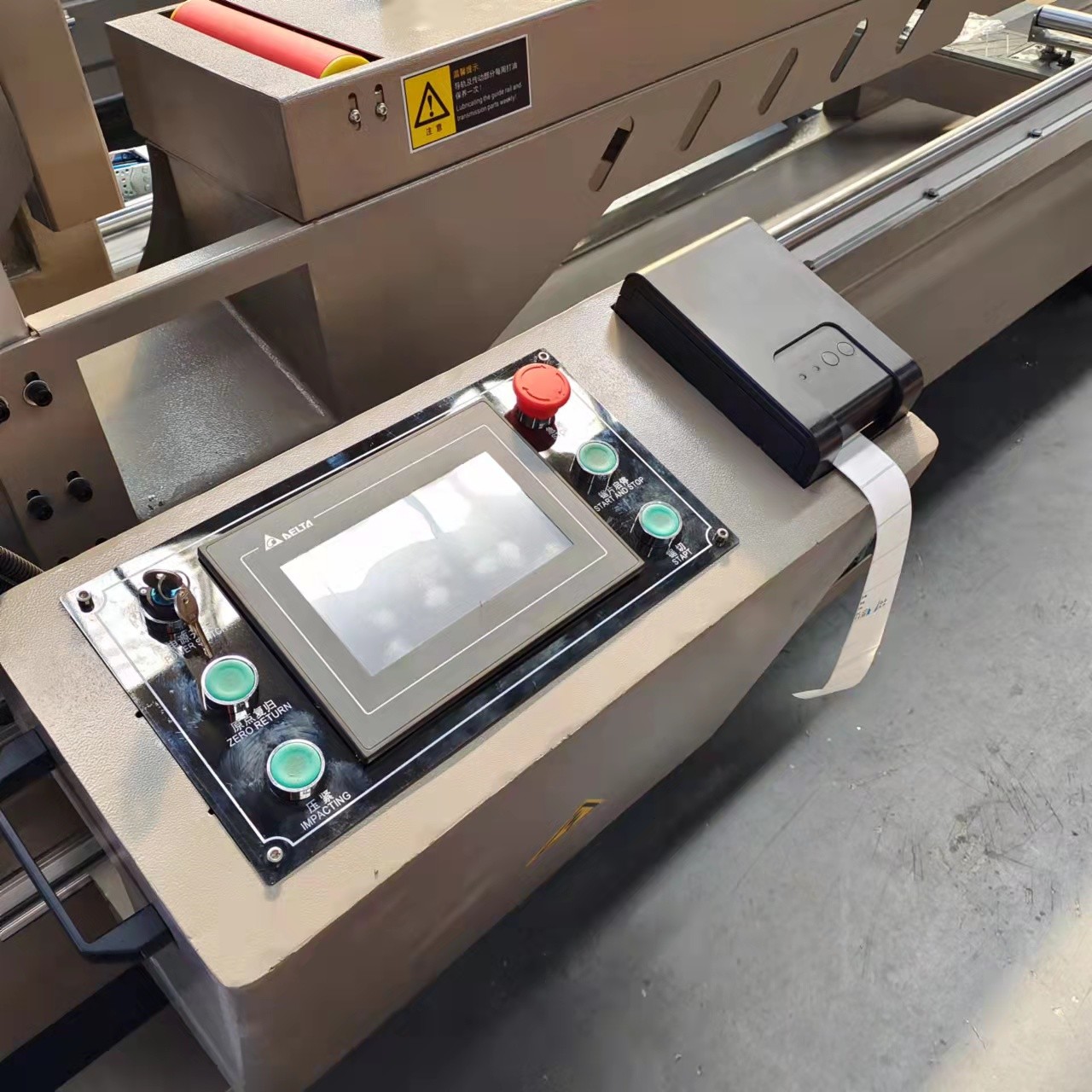

CNC Control, cutting length, cutting angle control are all automatic.

Have printing function, so can print clients info and profile info.

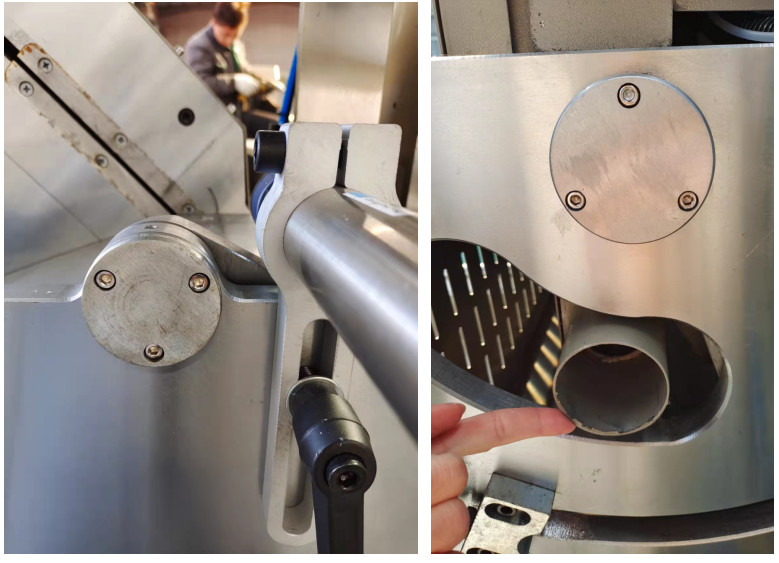

1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
3. The machine inside design to slope, more easy for chips clean

Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high

Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed

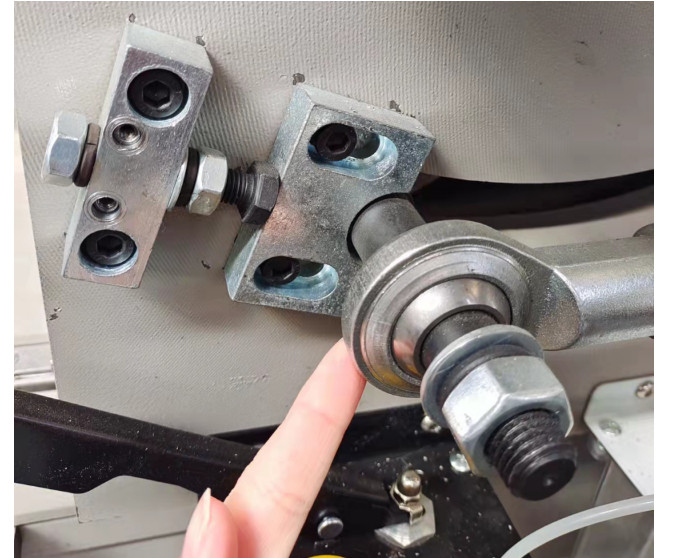

Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
we upgrade to point to face, so enlarge use time.

Contact Us For More Information:

Weike CNC

Email: info@jnfasca.com

What's app/Wechat/Mobile: +86 15554162658
