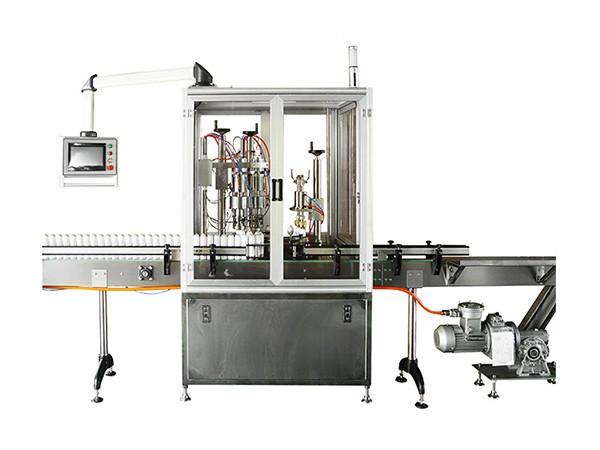

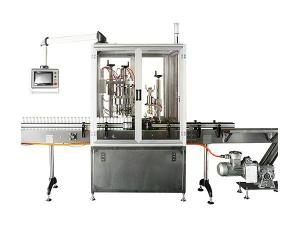

30-90BPM Sauce Bottling Machine Condiment Linear Filling Machine

30-90BPM Sauce Bottling Machine Condiment Linear Filling Machine
30-90BPM Sauce Bottling Machine Condiment Linear Filling Machine
Categories Sauce Filling Machine
Model NO.: FPL-10 Filling Machine
Feed Cylinder Structure: Multi-Room Feeding
Dosing Device: Plunger
Filling Principle: Pressure
Packaging Container Lifting Structure: Chute Pneumatic Combination Lifting
Structure: Linear
Packaging: Bottle
Packaging Material: Plastic
The Material: Stainless Steel
Transport Package: Packed in Wooden Cases
Specification: 2000mmx1500mmx2200mm
Trademark: Jinxing
Origin: China Jiangsu
HS Code: 8422301090
Supply Ability: 100 Units a Year
After-sales Service: Site Installation, Site Maintenance
Warranty: 12 Months
Type: Piston Filling Machine
Automatic Grade: Automatic
Material Type: Liquid
Filling Valve Head: Multi-Head
Customization: Available | Customized Request
Place of Origin: China
Brand Name: Jinxin
MOQ: 1
Price: negotiable
Packaging Details: carton box
Contact Now
Company Info.
Changzhou Jintan Jinxing Machinery Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

30-90BPM Sauce Bottling Machine Condiment Linear Filling Machine

Condiment Linear Filling Machine


It is suitable for the filling of various liquids, pastes and sauces, such as alcohol, disinfectant, disposable hand sanitizer, honey, chili sauce, tomato sauce, pearl milk tea, orange juice and other materials, with strong versatility; Automatic weighing and packing system for your current and future needs! The functions of the packing system mainly are conveying, weighing, filling and bag sealing. Realize automatization, save labor and increase the output.


A. Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder,
flour, medicinal powder, etc.
B. Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
C. Solid Packing Solution
Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
D. Granule Packing Solution
Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.



Condiment Linear Filling Machine
Precision filling valve.
1, widely used in filling machinery, especially suitable for fine and complex materials.
2. Fast filling speed.
3, exquisite and compact, easy to mirror or pipeline layout
4. The special sealing design at the bottom of the filling mouth prevents leakage during filling.
5. Chamfering structure at the bottom of filling head. With fixed effect, can be submerged into the bottom of the bottle filling.
6. With motor control, the filling valve can rise synchronously with the liquid level, effectively reducing foam generation.
Special metering cylinder design.
As shown in the picture, the cylinder liner is mounted on the top of the worktable, and the one-button piston decylinder design provides much more flexibility than the traditional non-removable and cleanable cylinder liner, making it easier to clean and replace seals.
Condiment Linear Filling Machine
Condiment Linear Filling Machine
Servo motor driven filling
1, fast speed, high precision, good stability;
2. High speed filling is used in the initial stage of filling. When filling volume is close to the target, slow filling can be used to prevent liquid overflow pollution bottle mouth;
3, easy to adjust, filling specifications only need to change the parameters on the touch screen, dose adjustment can also be adjusted on the touch screen;
4, compared with the traditional filling method, servo motor driven machine is not affected by the change of compressed air pressure, higher production efficiency.

Automatic Filling machine is controlled by computer via an auxiliary device (such as a cylinder block bottle system, stop bottles system, lifting system, feeding control, counting devices, etc.) to complete the automatic filling in the absence of personal operating conditions.
Filling Nozzle4 Nozzle6 Nozzle8 Nozzle10 Nozzle12 Nozzle16 Nozzle18 Nozzle
Filling Speed30 bot/min40 bot/min50 bot/min60 bot/min70 bot/min80 bot/min90 bot/min
Filling Volume50-500ml, 100-1000ml
Filling Accuracy±0.5-1%
Power Voltage220V,50/60Hz,2Phase;380V, 50/60Hz, 3 Phase
Air Consumption0.6-0.8Mpa
Remark1. Filling speed is 500ml/ bottle of water.
2. Filling speed will be different due to different material characteristics.
3. More options can be customized according to your requirements.
Condiment Linear Filling Machine
Changzhou Jintan Jinxing Machinery Co., LTD., founded in 2004, is located in The Yangtze River Delta Economic development Zone changzhou Jintan District, is engaged in packaging machinery products manufacturing, sales and import and export business as one of the intelligent equipment manufacturing enterprises.
The main products of the company are rational bottle machine, bottle washing machine, filling machine, capping machine, labeling machine, packing machine, palletizing machine, etc.
The company is mainly engaged in pesticide chemical industry, petrochemical industry, cosmetics, medicine, food industry intelligent workshop overall solution and landing turnkey project business. The company attaches importance to independent innovation, product technology and quality in the domestic industry in an important position, with leading technical innovation ability and high-quality staff team for domestic and foreign customers to provide a number of reliable packaging production line automation overall personalized solutions.

Our services
The sample service
1. We can send you the production video of the machine.
You are welcome to visit our factory at any time. You can see the machines in operation here. We'll arrange to pick you up when you come.
Customized service
1. We can design the machine according to your requirements (material, power, filling type, bottle type, etc.).
2. We will also give you professional advice.
After-sales service
1. We will provide the BILL of lading in time to ensure that you can get the qualified machine quickly.
2. After you complete the preparation conditions, our engineers will go to your factory for installation, testing and training.
We provide one year warranty, free of charge to provide vulnerable parts.
Successful cases
Through efficient cost control, we find the right balance with our customers: diversified production range, high-end packaging form. At the same time, the efficient operation of equipment improves the market competitiveness of enterprises. Wangji will provide customers with customized beverage production line solutions, including bottle design, label design, beverage preparation, packaging system and advertising solutions of the best solutions, to help customers easily start businesses, easy access to the market.
