Food Grade Stainless Steel Membrane Pre Swimming Pool Filter Housing For Purify

Categories Movable Filter Housing
Brand Name: YATE
Model Number: Mobile filter
Certification: ISO9001,CE
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 20 Set/Sets per Day
Delivery Time: 7 days
Packaging Details: wooden case
Working Pressure: 0.6Mpa
Min. Filtration Precision:: 0.5 μm
Usage: Liquild Filter
Filter Material: PP/PE
Material: Stainless Steel 304
Size: Customized Size
Type: Single bag / multiple bags
Video outgoing-inspection: Provided
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Food Grade Stainless Steel Membrane Pre Swimming Pool Filter Housing For Purify

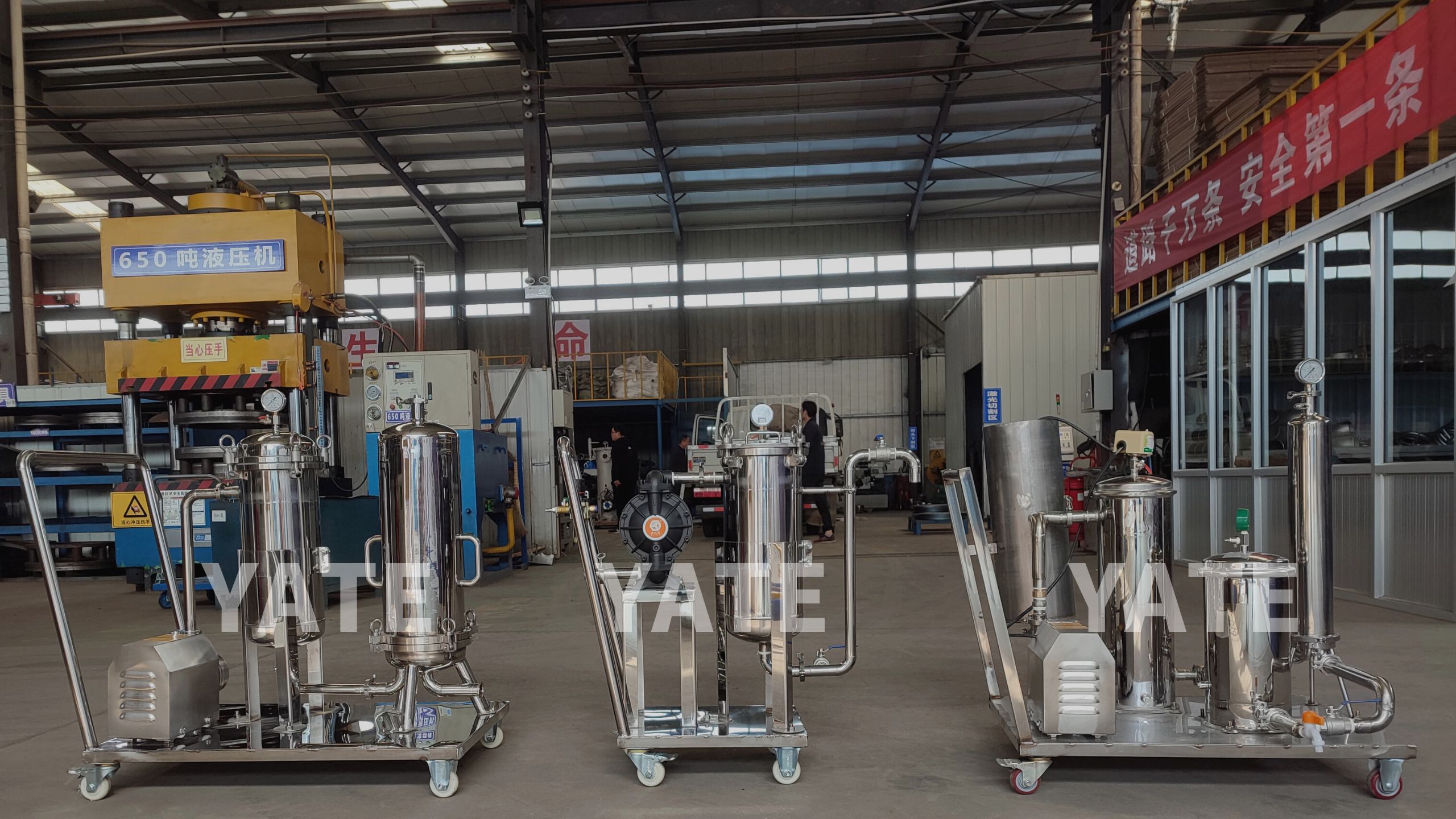

Customized Stainless steel 304/316L material removable filtration system


Model

Filter bag#Filter bag QtyFirltration area(m²)ConnectionMax. Flow (m³/h)Working pressure(MPa)
YT-1D1#10.25DN50200.5-1.6
YT-2D2#10.5DN50400.5-1.6

Three Stage Filter Unit
◆1.The first filter is bag filter, which can be customized for 1-24 bags, with a filtering accuracy of 0.2-500 microns, and intercepts large particle impurities.
◆2.The second filter is cartridge filter, can be customized 3-100 cores, filtration accuracy 1-300 micron, fine filtration.
◆3.The third stage is the folding filter element filter, high precision filtration, reduce turbidity, filtration accuracy 0.1-300 micron.
Two Stage Filter Unit
◆1.The first filter is bag filter, which can be customized for 1-24 bags, with a filtering accuracy of 0.2-500 microns, and intercepts large particle impurities.
◆2.The second stage is the folding filter element filter, high precision filtration, reduce turbidity, filtration accuracy 0.1-300 micron.
Single Bag And Pneumatic Diaphragm Pump Unit
The unit is composed of a single bag filter and pneumatic diaphragm pump. Group to be used for paint, resin, glue and other high viscosity liquid filtration, filling.
The unit is composed of a top - in single - bag filter and an electric pump. The top cover of the jacking bag filter is a casting cover with better sealing and bearing capacity.

Advantages of bag filter and cartridge filter

◆ High capacity, small size
◆ Easy to replace the filter bag, labor saving
◆ After cleaning the filter bag can be used repeatedly to save cost
◆ Filter precision reached 0.5-500 μm
◆ Lower leakage risk ensures high quality
◆ High working pressure, low pressure loss, low operation cost and energy saving
◆ Wide application, flexible use, various installation model for choice.
