Heat Setting Stenter Range Textile Finishing Machinery Stenter Clips Steel

Heat Setting Stenter Range Textile Finishing Machinery Stenter Clips Steel

Production Description:

Combined Clip Brand-XTY for Monforts Stenter

Special purpose parts of dyeing and finishing machinery like ball bearing,end ring,docto

Competitive Advantage:

1.higher speed of printing

2.can reduce cost

3.higher utilization ratio

4.highest quality

Specifications

Type dual purpose pin-clip,single purpose clip

Shanghai stenter 797 and 798

Suitable for Monforts Heat Setting Stenter Range:Shaoyang stenter 774,M5466,M5468,M5469,LMR432;,single purpose pin holder,chain,pin,graphite and non-lubrication railway

Specifications:

Setting Machine, Fomer West Germany FAMATEX Senter

Dual purpose Pin-Clip
BC-10 Fomer West Germany BABCOCK Heat Setting Range,Japan lchikin Heat

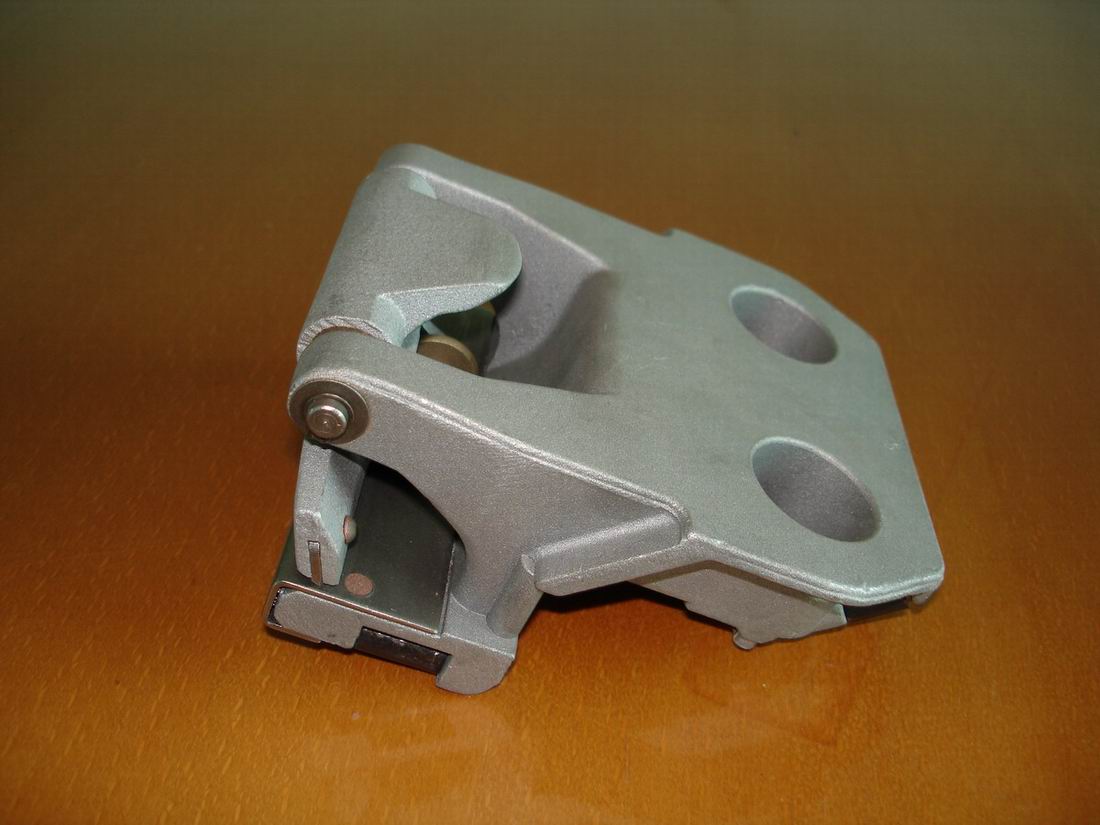

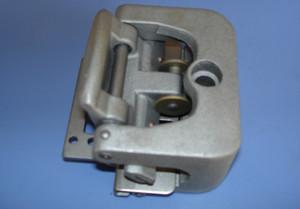

The clips are made of several individual, pressure die-cast, easily replaceable components. These components are made from special corrosion-resistant aluminum alloy and are distortion-proof even at the high heat setting temperatures, These components are very well studied to the lowest individual details and are designed to ensure long trouble-free performance with all kinds of fabrics.

The roller chain glides smoothly on special cast iron rails.The superb sliding properties of sintered metal considerably reduces lubrication requirements even at the high heat setting temperatures, thus ensuring safe operation and long life. The steel shoe holding the clips are fitted with sintered metal liners and connected with steel links. On request, the machine can be equipped with special polymer liners for lubrication free working. Optima 2610 is equipped with a vertical return pin chain.

CHANGZHOU LIANGRU INTERNATIONAL TRADE CO.，LTD. is located in Changzhou city, near shanghai, China. Our company is specializing in developing, manufacturing and marketing all kinds of spare parts for printing and dyeing  and finishing machineries.Such as rotary screen ,endring, cloth clip,chains,pin holders,pinplates,lubricating rails,guide rail boards for stenter machines.mercerizing machines ,carpet machines,ager machines,and all scrapers and scraper brackets/frame for flat screen printing machines,and endrings for rotary printing machines.
We have a strong engineering team and extensive manufacturing capabilities and strictly follow the best quality management systems and produce the best quality spare parts for our customers.We have complete specifications and more than hundreds of products to accommodate the customers for their wide selections.Currently our spare parts are exported to more than fourty countries and areas.For clip and chain we are teh most technically capable company  and are the biggest producer in china.Our quality of spare parts stands out among our competitors. All foreign customers are warmly welcome to discuss the business with us,we must try our best to offer best service,best quality and best price,and hope we can do win-win businss.we believe we will have good cooperation under our perfect service.
