2 Way Wilkinson Power Splitter SMA Female Wideband Power Divider

Categories RF Power Splitter
Brand Name: Vinncom
Model Number: VN-PD-1000-3000-OS2
Certification: RoHS/ISO9000
Place of Origin: China
MOQ: 5pcs
Price: negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 50pcs per day
Delivery Time: depends on your quantity
Packaging Details: foam+box
Operating Frequency ( MHz ): 1000-3000
Impedance( Ohm ): 50
Input VSWR: ≤1.20
Output VSWR: ≤1.20
Insertion loss: ≤0.5
Average Power (Watt max.): 30W max. / 2W max. as combiner
Isolation(dB): ≥20
Amplitude Balance(dB): ±0.2
Phase Balance: ±3°
Operating Temperature( ℃ ): -35 ~ + 75c
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

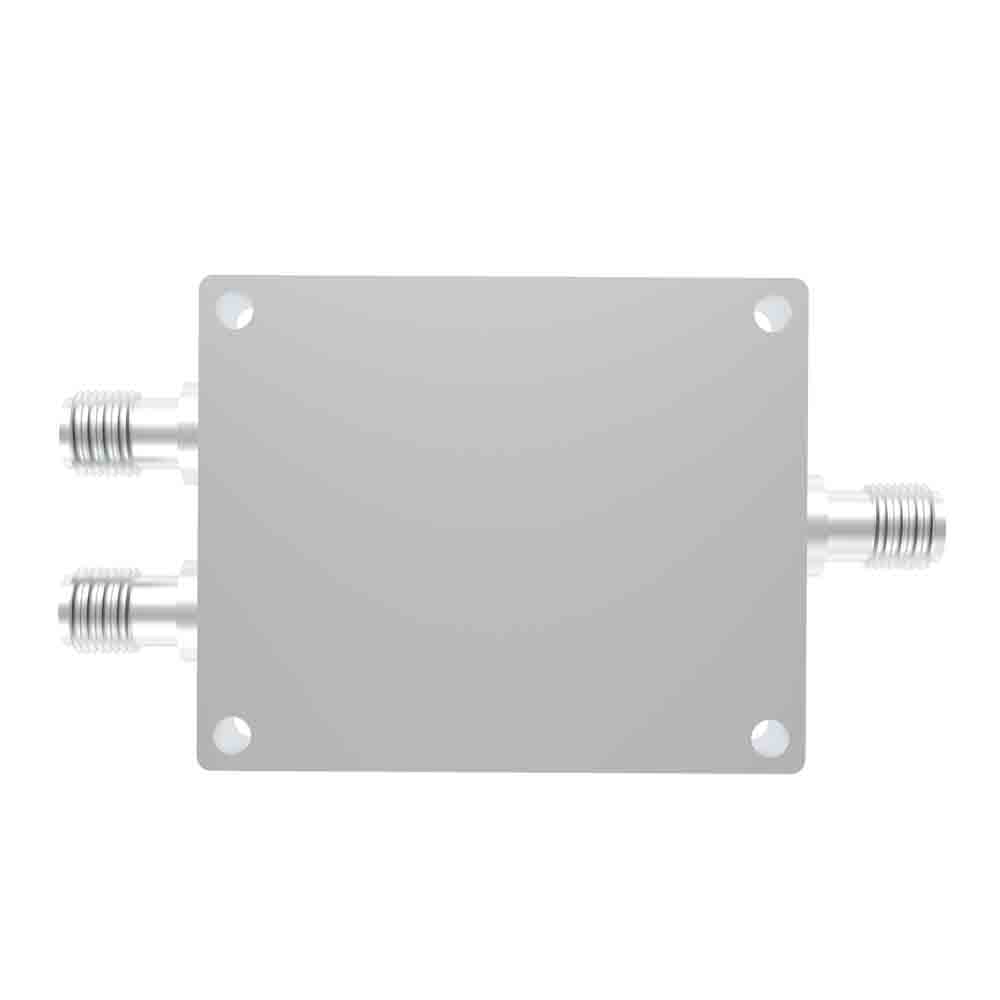

2 Way Wilkinson Power Splitter SMA Female Wideband Power Divider

1000-3000MHz 2 Way Power Splitter Wilkinson Power Divider SMA Female Connector


  • Good VSWR
  • High isolation
  • Good Flatness

Part NumberVN-PD-1000-3000-OS2
Operating Frequency ( MHz )1000-3000

Impedance( Ohm )

50

Input VSWR1.20
Output VSWR≤1.20
Insertion loss≤0.5
Average Power (Watt max.)30W max. / 2W max. as combiner

Isolation(dB)

≥20

Amplitude Balance(dB)

±0.2

Phase Balance±3°

Operating Temperature( ℃ )

-35 ~ + 75c

Interface

SMA Female
Size43*35*14mm
Weight48g

Dimension Tolerance(mm)

±0.5

Mounting

4-Φ2.8mm through-hole
