Hydraulic control Compressor pressure sensor

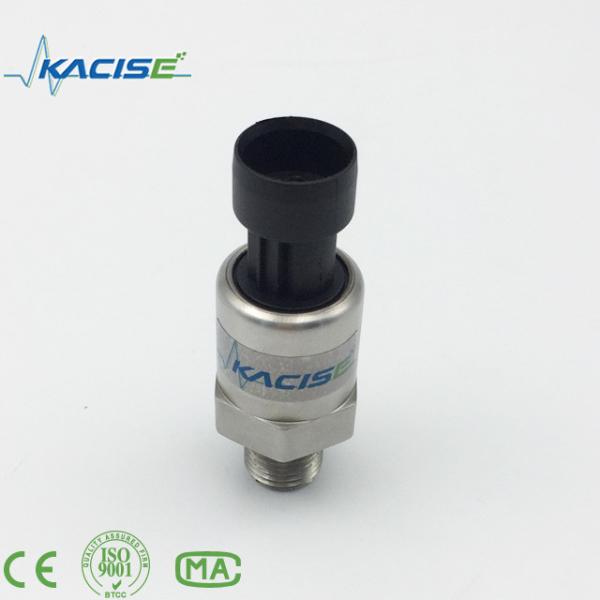

GXPS353 Hydraulic control Compressor pressure sensor

1. Parameter

Spec.	Value
Pressure range	0~2bar ......600bar
Load pressure	1.5times nominal value pressure (1.5X)
Rupture pressure	3times nominal value pressure (3X)
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value 0.5%F.S, Max. value: 1%F.S
Operating temperature	-40°C~100°C
Compensation temperature	-10°C~ 80°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance	2 wire system	3 wire system
Output signal	4~20mA	0.5~4.5V
Power supply	10~30Vdc	5Vdc		10~30Vdc
Load pressure	(U-10)/0.02(Ω)	>100kΩ
Insulation	>100MΩ@50V
Electric strength	500V@60 second
Vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable	2×10⁶pressure circle @25°C
Electrical connection	Packard, Hirsmann , air plugs, fixed cable, water proof cable
Pressure port	G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,
Pressure type	G, S		Response time: 10ms
Certificate	Intrinsically safe mode E, RoHS; CE
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2

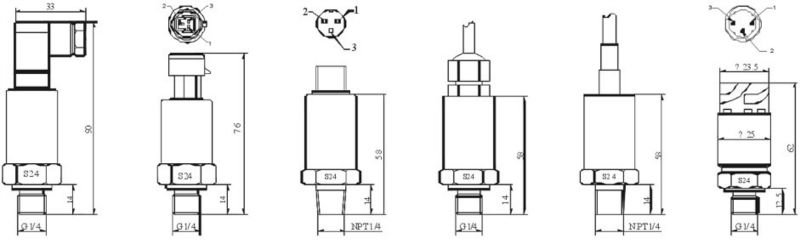

2. Electrical connection mode & structure:

GX-PT1200A current output

GX-PT1200V Voltage output

GX-PT1200-KX Specialized for Frequency conversion water supply system

2 wire	3 wire	Cable	Hirsman	Air plug	Packard
Power	Power	Red	1	1	1
Output	Output	Blue/green	2	2	2
	Power ground	Black	3	3	3
Shielded	Shielded	Yellow

3. Feature

Accuracy: ±0.25, ±0.5, ±1%F.S

High stability, high reliability

Import German ceramic core body

Digital calibration

Variety of connector choice

Variety of pressure port

Zero can be arbitrarily displaced

Variable drive can be between 50 to 100%

CE certificate

RoHS compliant

4. Apllications

Compressor

Floor house water supply

Hydraulic control

Air conditioning unit

Automobile engine

Automatic detection system

Hydraulic unit

Refrigeration equipment

1). The sensor is desgined specially for space flight, petroleum, chemical, mining machinery Testing System, micropressure measurement, high-speed railway carriage usage.

2). The customer is spreading all over the world for shipbuilding ,special truck,chemical industry,

3). Help our customer cut the cost obviously.

Product Tags:

pressure sensor compressor

pressure sensor for air compressor

air compressor pressure sensor

Hydraulic control Compressor pressure sensor

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Xi'an Kacise Optronics Co.,Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Fluid Level Meter
Place of Origin:	Shaanxi, China
Brand Name:	Kacise
Model Number:	GXP353
output:	Optional 0/1-5V 0-10V 4-20mA
Usage:	Pressure transducer
Theory:	Resistance Sensor
Output:	Analog Sensor
pressure range:	0-2bar......60bar
suuplies power:	10~30Vdc 5Vdc 10~30Vdc
accuracy:	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
stability:	Typical value 0.5%F.S, Max. value: 1%F.S
Packaging Details:	each unit has individual box and all boxes are packed in standard packages or customers requests available
Port:	Shanghai or other
Supply Ability:	10000 Piece/Pieces per Week negotiable
Price:	$50.00 - $180.00/pieces
