| Categories | Battery Pack Welding Machine |
|---|---|
| Brand Name: | XWELL |
| Model Number: | MD-ADW |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | USD 6000 - 9000 / pcs |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
| Delivery Time: | 10-15 days |
| Packaging Details: | Wooden box |
| Marketing Type: | 18650 Pack Machine |
| Warranty of core components: | 1 Year |
| Pack size: | X direction: 26; Y direction: 26 |
| Key Selling Points: | Automatic |
| Welding current: | 5000A 8000A |
| Voltage: | 220V/380V(AC) |
| Power: | 4000 W |
| Company Info. |
| Guangdong XWELL New Energy Technology CO., LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

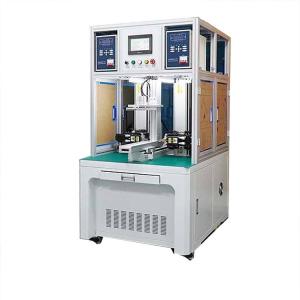

Automatic Double Side Pack Welding Machine For 18650 21700 32650 Cylindrical Cell
double-side automatic spot welding machine supports break point start and is equipped with a transistor 5000A/8000A power supply, which can weld pure nickel sheets below 0.3 mm and nickel-plated steel below 0.3. Nickel sheets need to be bumped for welding. Double-sided automatic welding, high efficiency. Simple programming, supports any point programming and array programming, graphics import, and can store 99 groups of programming files. Welding needle replacement forecast reminder, the welding head adopts water-cooling circulation to dissipate heat, which can effectively reduce the welding needle loss and improve the welding effect. Self-contained welding current monitoring system, which can monitor welding current, with rosin joint alarm function, can monitor welding in real time.
Battery Spot Welding Machine Specification
| Model No. | MD-ADW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | double-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Double Side Spot Welding Machine Details
|
