| Categories | Power Management ICs |
|---|---|
| Brand Name: | onsemi |

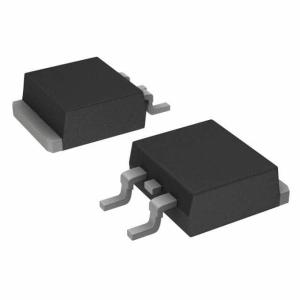

| Model Number: | MC7818CD2TR4G |
| MOQ: | 1 |
| Price: | Based on current price |
| Payment Terms: | T/T |
| Supply Ability: | In stock |
| Delivery Time: | 3-5 work days |
| Packaging Details: | anti-static bag & cardboard box |
| Output Configuration: | Positive |
| Output Type: | Fixed |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 35V |
| Voltage - Output (Min/Fixed): | 18V |
| Voltage - Output (Max): | - |
| Voltage Dropout (Max): | 2V @ 1A (Typ) |
| Current - Output: | 1A |
| Current - Quiescent (Iq): | 6.5 mA |
| Current - Supply (Max): | - |
| PSRR: | 57dB (120Hz) |
| Control Features: | - |
| Protection Features: | Over Temperature, Short Circuit |
| Operating Temperature: | 0°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package: | D2PAK-3 |
| Company Info. |
| Sanhuang electronics (Hong Kong) Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Linear Voltage Regulators |
| Series | MC7818 |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-263-3, D2Pak (2 Leads + Tab), TO-263AB |
| Operating-Temperature | 0°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | D2PAK |
| Voltage-Input | Up to 35V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1A |
| Voltage-Output | 18V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 2V @ 1A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | 0 C |
| Polarity | Positive |
| Output-Voltage | 18 V |
| Input-Voltage-MAX | 35 V |
| Output-Current | 1 A |
| Input-Voltage-MIN | 20 V |
| Load-Regulation | 55 mV |
| Package-Case | TO-263-3 (D2PAK) |
| Line-Regulation | 50 mV |
| Power Supply Ripple Rejection (PSRR) | 57 dB |
| Manufacturer Part# | Description | Manufacturer | Compare |
| MC7818ACD2T Power Circuits | 18V FIXED POSITIVE REGULATOR, PSSO2, HEAT SINK, PLASTIC, D2PAK-3 | ON Semiconductor | MC7818CD2TR4G vs MC7818ACD2T |
| MC7818ACD2TR4 Power Circuits | IC VREG 18 V FIXED POSITIVE REGULATOR, PSSO2, HEAT SINK, PLASTIC, D2PAK-3, Fixed Positive Single Output Standard Regulator | ON Semiconductor | MC7818CD2TR4G vs MC7818ACD2TR4 |
|
MC7818CD2T Power Circuits | Fixed Positive Standard Regulator, 18VBIPolar, PSSO2, PLASTIC, D2PAK-3 | Motorola Semiconductor Products | MC7818CD2TR4G vs MC7818CD2T |
|
MC7818CD2TR4 Power Circuits | 18V FIXED POSITIVE REGULATOR, PSSO2, D2PAK-3 | ON Semiconductor | MC7818CD2TR4G vs MC7818CD2TR4 |
| MC7818BD2T Power Circuits | 18V FIXED POSITIVE REGULATOR, PSSO2, HEAT SINK, PLASTIC, D2PAK-3 | ON Semiconductor | MC7818CD2TR4G vs MC7818BD2T |
| MCT7818BD2T Power Circuits | 18V FIXED POSITIVE REGULATOR, PSSO2, PLASTIC, D2PAK-3 | Motorola Mobility LLC | MC7818CD2TR4G vs MCT7818BD2T |
|
