| Categories | Motor Modules |
|---|---|
| Place of Origin: | Jiangsu, China |
| Brand Name: | SUPT |
| Model Number: | VCAR0070-0149-00A |
| Certification: | ISO9001 |
| Packaging Details: | carton & wooden box voice coil motor |
| Supply Ability: | 2000 Piece/Pieces per Month voice coil motor |
| MOQ: | 2 pieces |
| Price: | $365.00/pieces >=2 pieces |
| Payment Terms: | T/T |
| Delivery Time: | 1-5 products 5-7 days shipment, samples 3-5 days, bulk to be negotiated |
| Warranty: | 3months-1year |
| Usage: | BOAT, Car, Electric Bicycle, UAV, robot, Medical ventilator, microscope, endoscope, optics |
| Type: | Micro Motor |
| Torque: | Requests |
| Construction: | Permanent Magnet |
| Commutation: | Brush |
| Protect Feature: | Totally Enclosed |
| Speed(RPM): | High Speed |
| Continuous Current(A): | 4A |
| Efficiency: | IE 1 |
| Peak force(N):: | 70 |
| Maximum travel(mm):: | 14.9 |
| voice coil motor(V):: | 26.9 |
| Weight rotor(kg):: | 79 |
| Stator dia(mm):: | 43 |
| Continuous force(N):: | 27.3 |
| Port: | Shanghai voice coil motor |
| Company Info. |
| Suzhou Unite Precision Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

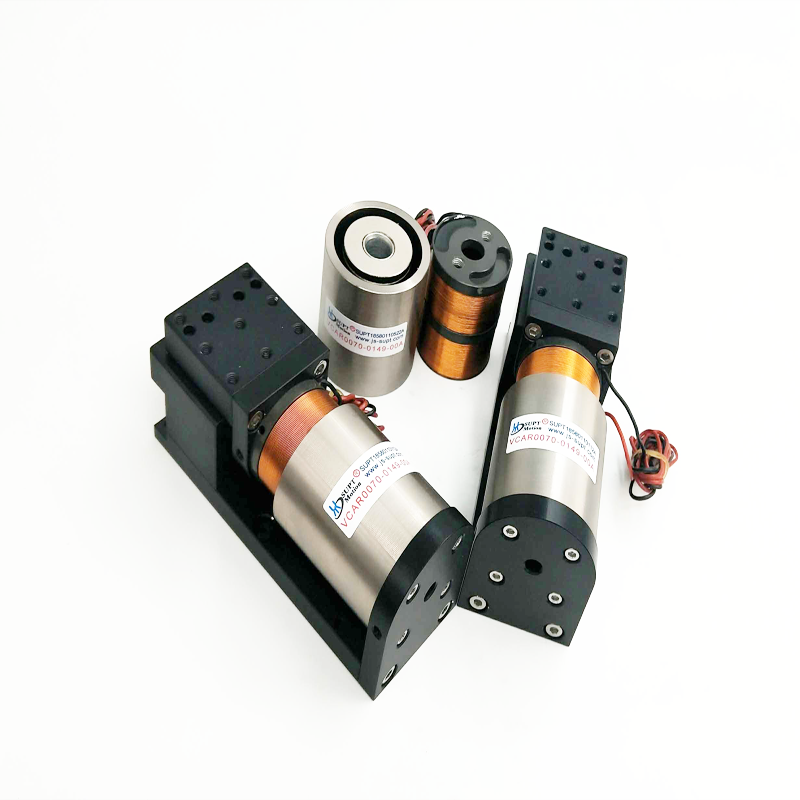

High Frequency Response Voice Coil Motor Micro Strong Micro Voice Coil Motor Stage
A linear platform with voice coil motor (VCM) exhibits several
distinct characteristics, making it an invaluable component in
automatic focusing systems.
Characteristics of Voice Coil Motor Linear Platform in automatic
focusing systems:
1.High Precision: The linear platform offers exceptional precision
in positioning due to the direct-drive nature of the voice coil
motor, ensuring accurate movement without mechanical backlash.
2. Smooth Motion: Voice coil motors provide smooth and frictionless
motion, ensuring minimal vibration and disturbance during
operation.
3. Rapid Response: VCMs have quick response times, enabling fast
adjustments and precise positioning within autofocus systems.
4. Low Hysteresis: Voice coil motors exhibit low hysteresis,
ensuring accurate position control during both forward and reverse
movements.
5. High Acceleration: Linear platforms with VCMs can achieve high
acceleration rates, allowing for swift and efficient focusing
adjustments.
6. Low Noise:The absence of mechanical components and gearing
reduces operational noise, critical for maintaining a quiet
environment in various applications.
7. Direct Drive: The direct-drive mechanism eliminates the need for
gears or belts, minimizing wear and tear while ensuring high
reliability and longevity.
| Product Modle | Peak Force | Continious Force | Total Stroke | Peak current | Peak Voltage | Thrust constant | Encoder resolution | Repeat precision |
| VCAR0006-0050-00A | 6.2 | 2.6 | 5 | 1.7 | 15.7 | 3.57 | 0.1/0.5/1 | 1/5/10 |
| VCAR0013-0072-00A | 13 | 4.2 | 7.2 | 2.3 | 26.6 | 5.72 | 0.1/0.5/1 | 1/5/10 |
| VCAR0022-0098-00A | 22 | 6.5 | 9.8 | 3.8 | 24.7 | 5.8 | 0.1/0.5/1 | 1/5/10 |
| VCAR0033-0099-00A | 33 | 8 | 9.9 | 4.5 | 24.3 | 5.87 | 0.1/0.5/1 | 1/5/10 |
| VCAR0044-0249-00A | 44 | 11.7 | 24.9 | 4.95 | 44.9 | 8.88 | 0.1/0.5/1 | 1/5/10 |
| VCAR0070-0149-00A | 70 | 27.3 | 14.9 | 4 | 26.9 | 17.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0087-0062-00A | 87 | 21.67 | 6.2 | 6.85 | 34.5 | 12.7 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0112-00A | 262 | 111 | 11.2 | 6.4 | 35.1 | 41 | 0.1/0.5/1 | 1/5/10 |
| VCAR0262-0249-00A | 262 | 112 | 24.9 | 10.1 | 28.2 | 26 | 0.1/0.5/1 | 1/5/10 |
| VCAR0436-0250-00A | 436 | 167 | 25 | 11.7 | 31.6 | 37.2 | 0.1/0.5/1 | 1/5/10 |
| VCAR1351-0310-00A | 1351 | 376.8 | 3 | 19.9 | 73.5 | 68 | 0.1/0.5/1 | 1/5/10 |
Technical indicators & specifications can be customized
Satisfactory after-sales service
1.Travel: effective travel, used to calculate the the total travel of value force.
2.The direction of movement: horizontal or vertical installation 90 degree.
3.Load force: constant in the reverse direction of force on the motor, such as springs, etc.
4.Load weight: the total quality part of movement, including the quality slider
5.Movement Type: 1.point to point movement; 2.the reciprocation of the rule (e.g. scanning).
6.Velocity curve: 1.a trapezoidal speed curve; 2.triangular speed curve; 3.sine speed curve.
