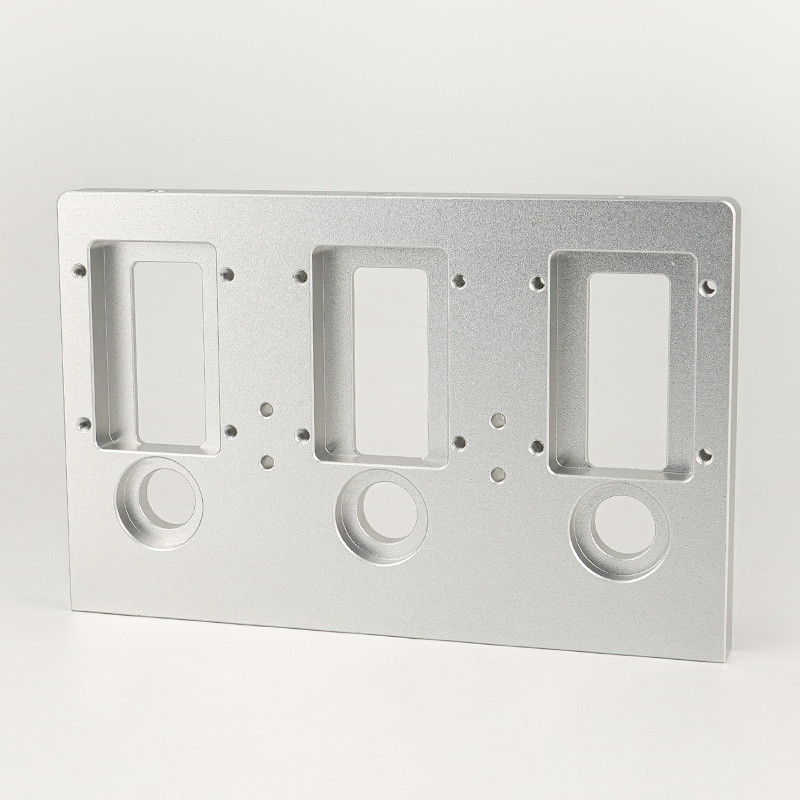

Custom Precision CNC Machining Milling Aluminum Parts CNC Machining Part CNC Mechanical Parts

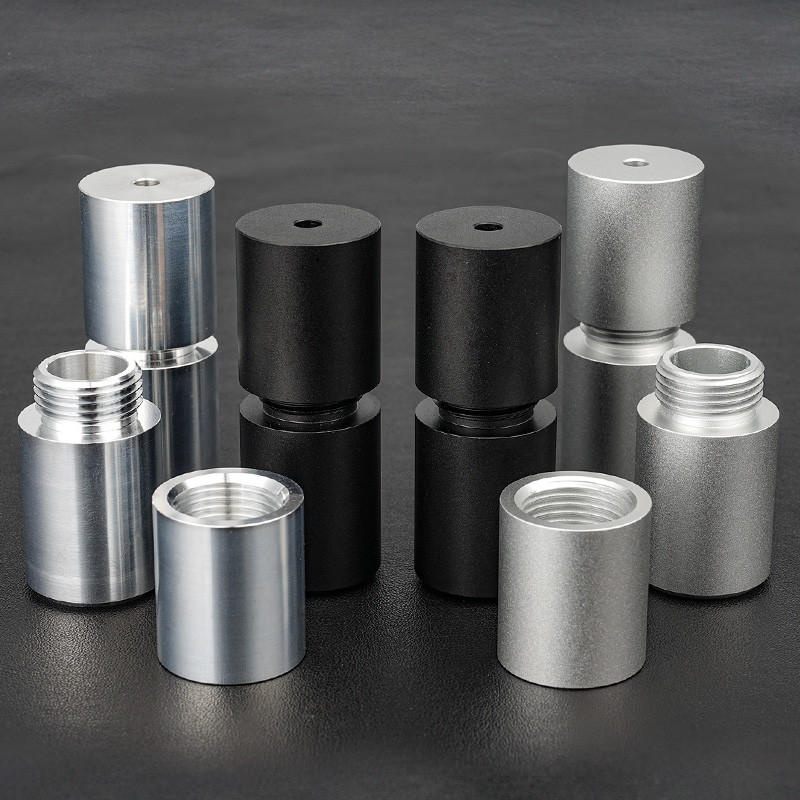

Custom Precision CNC Machining Milling Aluminum Parts CNC Machining Part

CNC Mechanical Parts Stainless Steel Milled Parts

We possess the expertise to CNC machine a wide range of components, from straight forward

"as machined" workholding fixtures to intricate geometries.

Our manufacturers utilize a comprehensive array of CNC milling and turning centers, and we

can also accommodate EDM and grinding upon request.

Our capabilities extend to achieving tolerances as tight as 0.05 mm (0.0020 in), and we can

deliver within lead times as short as 3 business days.

Product Details

CNC machining encompasses a wide range of materials, primarily categorized into three major

groups: plastics, soft metals, and hard metals.

These materials include aluminum, bronze, copper, ceramics, plywood, steel, stone, wood, zinc,

and numerous others.

The choice of material depends on ease of workability and desired properties, with those offering

favorable characteristics often being preferred in CNC milling applications.

Surface Finished

We specialize in the production of custom-made products and offer surface treatment services

tailored to meet our customers' specific requirements and industry standards.

Our comprehensive solutions are both efficient and cost-effective, making us a one-stop

destination with the capacity and capability to provide integrated services.

Application of CNC Machining Parts

CNC machining is a highly utilized subtractive manufacturing process employed across a

multitude of industries.

It plays a crucial role in aerospace, automotive, aviation, transportation, and numerous other

integral sectors.

For instance, in the aerospace industry, the production of airplane components demands an

exceptional level of precision to ensure the seamless functionality of the entire aircraft.

Company Profile

FAQ's

1. A quick guide to CNC machining parameters

In CNC machining, many parameters are determined by the machine operator during the

generation of G-code. Among these parameters, we will focus on the build size and accuracy

of CNC machines.

CNC machines are known for their relatively large build areas, particularly when compared to

3D printers.

CNC milling systems, for instance, are capable of machining parts with dimensions of up to

2,000 x 800 x 100 mm (78” x 32” x 40”), while CNC turning systems can handle parts with

diameters of up to Ø 500 mm (Ø 20’’).

One of the notable advantages of CNC machining is its ability to produce parts with exceptional

accuracy and tight tolerances. CNC machines can achieve tolerances that are even less than half

the diameter of an average human hair, which is approximately ± 0.025 mm or .001’’.

In cases where the tolerance is not specified in the technical drawing, the operator typically

machines the part with an accuracy level of 0.125 mm (.005’’).

2. What size of fillets are added when no specific fillet is specified by the 3D model

or drawing?

If a particular fillet radius is not specified in the 3D model or drawing, please indicate your

preference.

In the absence of specific instructions, the fillet radii will be added by the machinist based on

their judgment for ease of machining.

As a general guideline, internal vertical edge radii may exceed one-third of the depth, while

internal horizontal edges could be left sharp or have a radius ranging from 0.5mm to 1mm.

3. How quickly can I get my parts?

We can produce high-quality parts in as little as two weeks if you furnish us with comprehensive

2D and 3D CAD models.

However, for more intricate parts with additional requirements or special features, the lead time

may be longer. Feel free to request a quote to obtain precise lead times tailored to your project.

In terms of shipping, the majority of our shipments are dispatched via air freight. The transit time

from China to Europe or North America typically takes a few days.

Dongguan Yexin Intelligent Technology Co., Ltd.

Yexin Precision CNC Machining is a leading OEM CNC metal parts manufacturer headquartered in

Dongguan, China.

We specialize in the precision machining of non-standard components, offering on-demand

manufacturing and rapid prototyping services.

With a commitment to excellence, we provide quick quotes and deliver high-quality parts in record

time.

Our Expertise:

1. CNC Machining: We excel in CNC milling and turning services, ensuring precise and accurate results.

2. Diverse Materials: Our capabilities cover a wide range of materials, including brass, stainless steel,

aluminum, and more.

3. Cutting-Edge Equipment: Yexin is equipped with state-of-the-art CNC machining centers, turning

machines, engraving and drilling machines, lathes, and milling machines.

4. Precision and Tolerance: Our experienced team, coupled with advanced machinery, guarantees

repeated positioning accuracy within a remarkable tolerance of ±0.001mm.

Our Commitment:

At Yexin Precision CNC Machining, we are dedicated to surpassing our customers' expectations

throughout the entire manufacturing process.

We recognize our responsibilities to customers, employees, suppliers, and society, and we continually

strive to meet and exceed them.

Our Vision:

We continually invest in advanced production facilities to enhance efficiency, ensure high and

consistent quality, and reduce production costs.

Our ultimate goal is to provide reliable, cost-effective CNC machining parts and fast sample services,

contributing to the success of our customers' projects.

Choose Yexin Precision CNC Machining as your trusted partner for precision machining solutions.

Contact us today to experience excellence in CNC metal parts manufacturing and rapid prototyping.
