PLC Controlled Monoblock Filler Capper Machine 50-1000ml Bottle Rinsing Machine

Categories Monoblock Filler Capper Machine
Brand Name: TOM
Model Number: XP-24
Certification: CE, ISO,CO
Place of Origin: China
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Delivery Time: 30 working days
Packaging Details: Plywood case
Material: stainless Stell 304
bottle volume: 50-1000ml
Speed: 700-5000 bottle per hour
type: By air/water
Application: pharmaceutical or food company
Model: XP-24
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

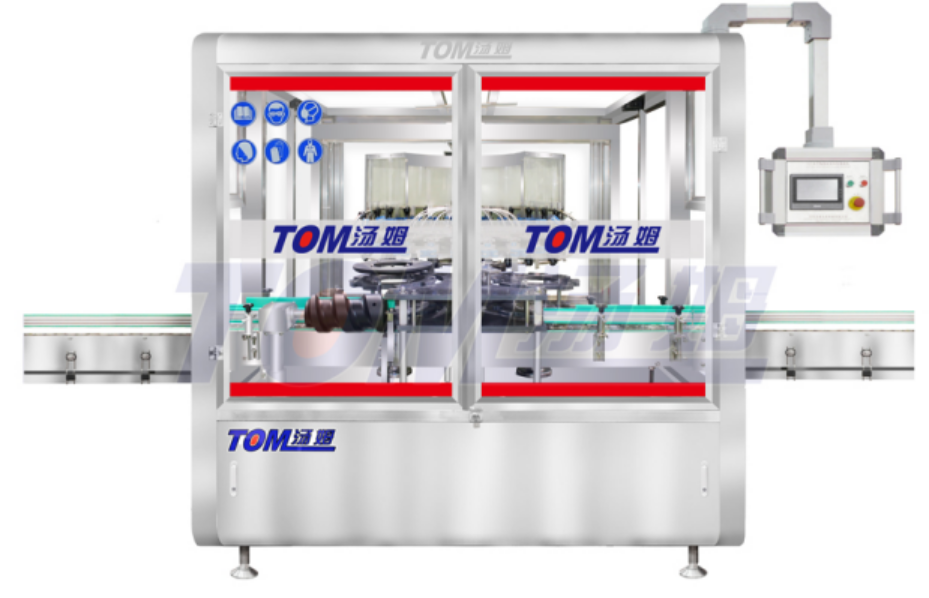

PLC Controlled Monoblock Filler Capper Machine 50-1000ml Bottle Rinsing Machine

XP-24 Fully Automtaic PLC Controlled bottle rinsing machine

Major characteristics

This bottle rinsing machine is rinsed by water or air, it adopts continual tracking to spray and wash bottles, high efficiency, well effect of rinse, it is suitable for different specification of bottles. Wide application range, easy operating, convenient maintaining. The mainframe is made of advanced stainless steel, conforming to GMP standard.

Technical parameters

No.ItemsPerformance
1Power Supply3 phases 380V/220V; 50HZ
2Power5.0KW
3Production Capacity5000 bottles/hour
4Pneumatic (air-operated) source:0.6Mpa clean and Stable compressed air
5Machine weight1000Kg
6Numbers of manipulator24
7Specification of bottles
Round bottleΦ50mm-Φ100mm
Rectangle bottles106mm×88mm
Height of bottles150mm-320mm
8Time of rinse3 seconds (Max)
9Dimension (L ×W × H)2000mm×1400mm×1850mm
10Air consumption1.0m-1.5m³/minute


Threshold protection: the host is equipped with a safety door threshold alarm device. During normal production, open the safety door (around the door), and the host automatically alarms and stops the machine;


An oil-water separator is installed in front of the intake main pipe. When the pressure is too high or too low, the host automatically alarms and stops the machine; (All the above alarms are touch screen display and sound and light alarms at the same time)

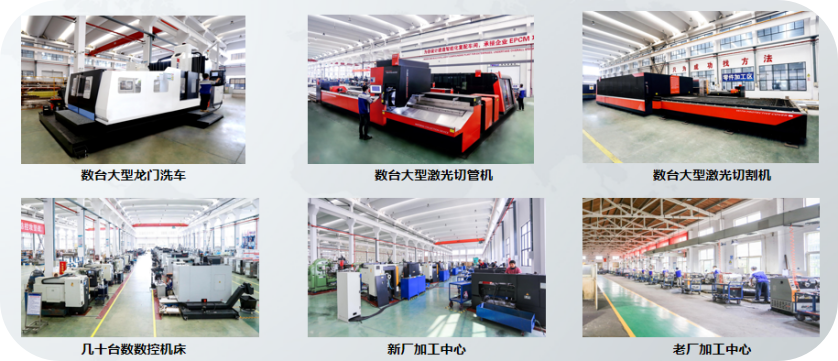

The Photo Of Our Company

Jiangsu Tom Packaging Machinery Co., Ltd., is located in No. 26 Fengxi Road, Wujin Hi-Tech District, Changzhou City, Jiangsu Province, China. Tom’s factory covers an area of 150 mu including building area of 120558㎡, has 530 employees, including 2 doctors, 20 masters, 286 Bachelor degree or above, still now, Tom has achieved ISO9001 quality system certification, ISO14001 environmental management system certification, OHSAS18001 occupational health and safety system certification, CE certification and 125 national practical patents and 26 national invention patents. In the past 21 years, with great efforts, Tom Group continued making innovative development and keeping pace with the times, has provided generation after generation of advanced intelligent packaging equipment for foodstuff enterprises, to build industrial 4.0 intelligent factory; to creat Automatic Storage & Retrieval System, to create smart factory of Data Acquisition Execution System (MES) for customers.


  • Jiangsu Tom is a National High and New Technological Enterprise, National SME Venture Fund Obtain Enterprise, the member of WTC, National and provincial foodstuff industry association member enterprises. In the year of 2009, Tom had the honor that Premier Wen Jiabao paid a visit to Tom’s laboratory and factory. So far, Tom has owned over 3,000 clients in domestic and over 300 clients in abroad, excellent performance and perfect after-sales service system access to the majority of users’ unanimously praised. Such as Yihai Kerry Group, COFCO Group, XI’AN AIJU GRAIN AND OIL ; DAPING OILS & GRAINS, Liangyou Group, FUKANG YOUZHI; YANZHUANG OIL ; YUWANG GROUP; Linzhishen; YELLOW ROBE OIL; SINOGLORY ; CUIRUIFU etc., both domestic and foreign well-known foodstuff enterprises have become Tom's strategic partners.

In order to better serve the intelligent packaging for global foodstuff enterprises, Jiangsu Tom group invested 300million RMB, covers 100 mu, new building area of 85558㎡, set up Jiangsu Thomson Intelligent Packaging Co., Ltd. Equipped with the world's largest, the most advanced, the most scientific and luxury products exhibition hall and the regular large-scale conference hall (Tom Theater) which can accommodate 520 people as well as small and medium-sized conference hall, Tom training center which can accommodate about 100 people, the new input processing center, numerical control machine, large laser cutting machines and other equipment covers more than 50 million RMB, expand production capacity, improve service capabilities and service levels.
