| Categories | Used Motor Vehicle |
|---|---|
| Brand Name: | Huanghai |
| Model Number: | 6820BEV1 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | USD 87,000 per Unit |
| Payment Terms: | T/T |
| Supply Ability: | 50 units per month |
| Delivery Time: | 75 Days |
| Packaging Details: | Suitable for RORO Ship |
| Name: | Huanghai 8.2m Pure ELectric Coach Staff Bus 44 Seats 200km Range |
| Key Words: | Huanghai Bus, Pure Electric Bus, Staff Bus, Coach Bus |
| Dimension: | 8245x2500x3240 / 3460mm |
| Passenger Capacity: | 44/16-34，42/16-32 |
| Body Type: | Monocoque |
| Battery Capacity: | 149kwh |
| Tire: | 255/70R22.5 |

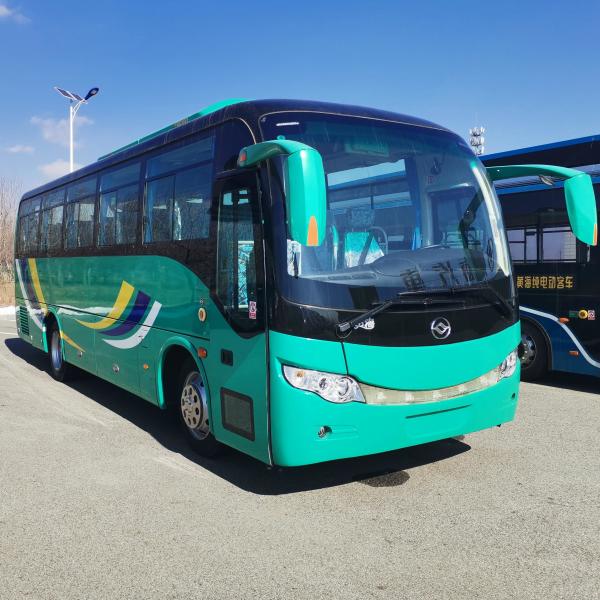

Huanghai 8.2m Pure ELectric Coach Staff Bus 44 Seats 200km Range
Huanghai Bus, Pure Electric Bus, Staff Bus, Coach Bus
This series is a new modeling platform product. The whole vehicle
adopts a full bearing structure, which increases the stiffness and
strength, reduces the weight, and can effectively ensure the safety
of passengers in case of vehicle collision.This vehicle adopts the
whole vehicle electrophoresis process, with strong anti-corrosion
ability, so as to ensure that there is no skeleton corrosion within
the service life of the vehicle.
Dd6115bev2 chassis is air spring structure.Flat floor.The new
interior structure of the whole vehicle, new instrument panel,
standard air conditioner and air duct, optional inner luggage rack
and front and rear integral forming roof.The seat arrangement type
is 2 + 2, aluminum alloy luggage compartment door, and the luggage
compartment volume is 3.5m3.
Dd6820bev1 chassis is of leaf spring structure.Flat floor.The new
interior structure of the whole vehicle, new instrument panel,
standard air conditioner and air duct, optional inner luggage rack
and front and rear integral forming roof.The seat arrangement type
is 2 + 2. The aluminum alloy luggage compartment door is equipped
with double doors as standard. The luggage compartment volume is
1.5m3. The middle door can be cancelled. The luggage compartment
volume is 2.25m3.
| NO | Item | Specs | Remarks |
| MAIN SPECS | |||
| 1 | Length x width x height (mm) | 8245x2500x3240 / 3460 (air conditioning) | |
| 2 | Total mass (kg) | 13500 | |
| 3 | Axle load (kg) | 4500/9000 | |
| 4 | Wheelbase (mm) | 4150 | |
| 5 | Curb weight (kg) | 9300,8900 | |
| 6 | Maximum speed (km / h) | 69 | |
| 7 | Rated passenger capacity (person) | 44/16-34,42/16-32 | |
| 8 | Front suspension / rear suspension (mm) | 1930/2165 | |
| 9 | Approach angle / departure angle (°) | 9/12 | |
| 10 | Front track width (mm) | 2090 | |
| 11 | Rear track width (mm) | 1820 | |
| 12 | Number of leaf springs (front / rear) | 9/10 | |
| 13 | Tire specification | 255/70R22.5 | |
| 14 | Rated power / peak power (kW / RPM) | 80/160 | |
| 15 | Peak torque N.m | 2100 | |
| 16 | Minimum ground clearance | 200 | |
| 17 | Interior height | 2020 | |
| 18 | Number of seats | 16-34,16-32 | |
| 19 | Battery capacity (kW. H) | 149.7 | |
| 20 | Body type | Monocoque type | |
| CHASSIS | |||
| 21 | clutch | nothing | |
| 22 | Clutch master and slave cylinder | nothing | |
| 23 | Gearbox model and manufacturer | nothing | |
| 24 | Variable speed control | Electronic control | |
| 25 | Specification and manufacturer of front axle | 4.5t front axle / dawn | |
| 26 | Rear axle specification and manufacturer | 9t rear axle / dawn | |
| 27 | Brake type | Front disc rear drum brake | |
| 28 | ABS system | Domestic ABS system | |
| 29 | Brake clearance adjusting device | The front axle disc brake is equipped with an adjustment mechanism, The rear axle is an automatic clearance adjusting arm | |
| 30 | Suspension system | Multi leaf spring (9 / 10), two-way acting cylindrical shock absorber and front stabilizer bar | |
| 31 | Tire and spare tire | 255/70R22.5 | |
| 32 | Steel ring | 22.5X7.5 | |
| 33 | Tire pressure and tire temperature alarm system | nothing | |
| 34 | Centralized lubrication | nothing | |
| 35 | Steering gear | Domestic integral power steering gear, electric power steering pump | |
| 36 | Auxiliary braking | Motor assisted braking | |
| 37 | dryer | Domestic air dryer (working pressure 1MPa) | |
| 38 | Brake system valves | Domestic brake valves, WABCO special brake master cylinder (working pressure of braking system 1MPa) | |
| 39 | Brake line | Double circuit, air brake, nylon pipeline | |
| 40 | Expansion tank | Stainless steel water tank | |
| 41 | Metal pipe for cooling system | Stainless steel pipe | |
| 42 | Frame | Full bearing through warehouse structure | |
| 43 | Cooling system | Intelligent cooling system (ATS) | |
| 44 | On board tools | Standard on-board tools | |
| 45 | battery level | 149.7kW.H / Ningde | |
| BODY | |||
| 46 | Skeleton structure type | Full bearing, through warehouse | |
| 47 | air conditioner | Lean 22000 kcal electric single cooling overhead air conditioner | |
| 48 | Front and rear wall modeling | New shape | |
| 49 | Front passenger door | Single leaf pneumatic aluminum alloy outer swing (front wheel), remote control door lock, hollow glass | |
| 50 | Middle passenger door | Single leaf pneumatic aluminum alloy swing out (front of rear wheel) | |
| 51 | Aluminum frame emergency door | nothing | |
| 52 | Windshield | Panoramic laminated glass | |
| 53 | Rear windshield | Tempered glass, f green | |
| 54 | Driver's window | Built in hollow sliding window, f green | |
| 55 | Side window | The whole car has built-in sliding window and gray glass | |
| 56 | Front curtain | Single width manual front sunshade | |
| 57 | Driver's side sun blind | have | |
| 58 | Side curtain (including rear curtain) | nothing | |
| 59 | Layout type | 2+2,31+1 | |
| 60 | Driver's chair | Ys-sj-qx01 air suspension | |

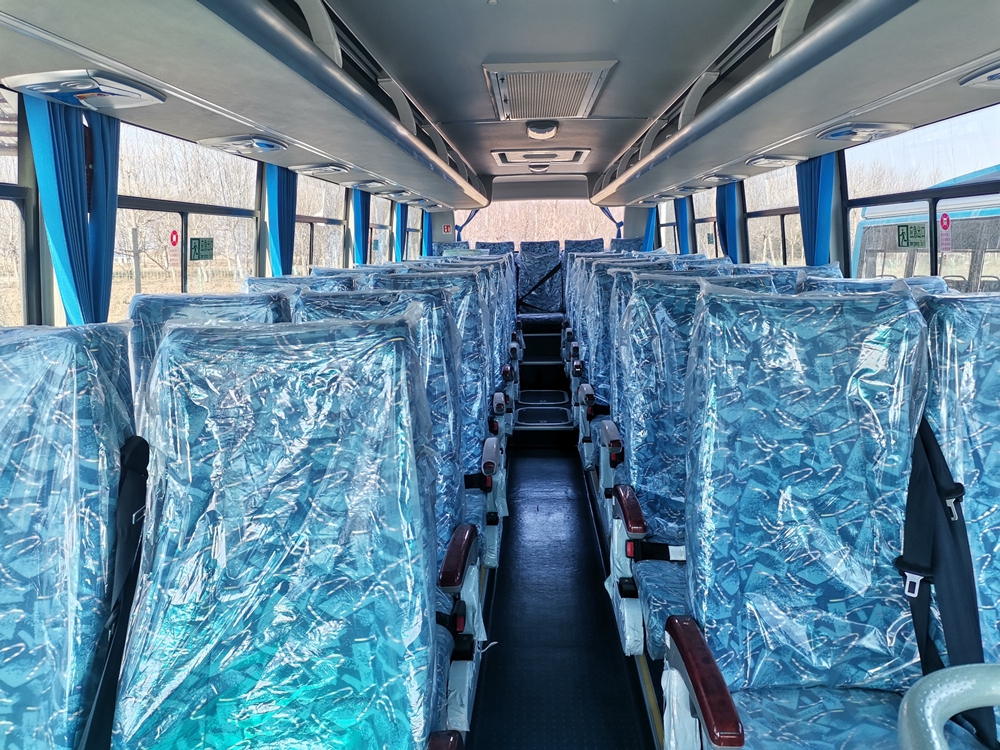

| 61 | Passenger seat | Xh-y-002 adjustable passenger seat | |
| 62 | Step series | First three and last four | |
| 63 | Floor and leather | Wood floor, floor grain, floor leather | |
| 64 | Chassis | nothing | |

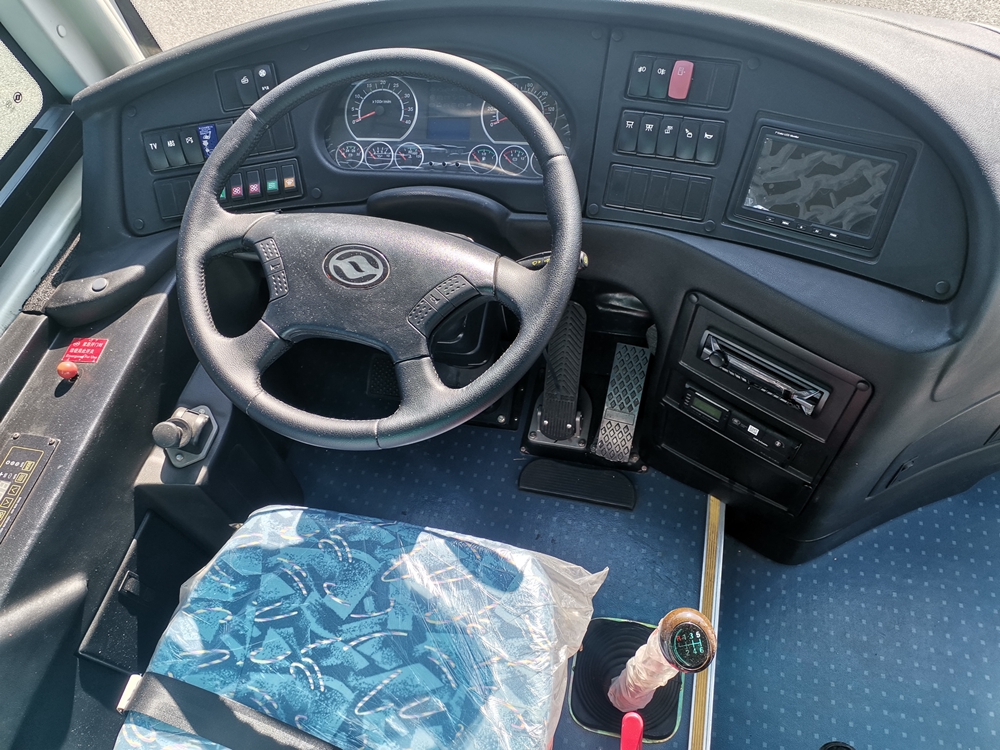

| 65 | Instrument panel | Softening instrument panel | |
| 66 | guardrail | The driver is surrounded | |
| 67 | side | Coated plywood | |
| 68 | Window column | PVC extruded belt with soft edge | |
| 69 | Window sill | PVC extruded belt with soft edge | |
| 70 | Top surface / front and rear top | Ceiling PP honeycomb panel / front and rear integral forming roof | |
| 71 | Air duct | New air duct | |
| 72 | Luggage rack | Single side luggage rack | |
| 73 | Handrail tube | Upper handrail of instrument panel | |
| 74 | Indoor mirror | Ordinary indoor mirror | |
| 75 | Rearview mirror | Rabbit ear manual electric defrosting | |
| 76 | Heating | 30kW independent water heating heater + 6 radiators in the vehicle + defroster | |
| 77 | improve air circulation | 2 emergency exits with ventilator | |
| 78 | top light | 2 single ceiling lamps | |
| 79 | Driver fan | nothing | |
| 80 | Driver's cup holder | have | |
| 81 | Can bus | Can bus instruments only | |
| 82 | Electronic clock | Ordinary electronic clock | |
| 83 | Audio visual system | MP3 player | |
| 84 | Wiper | Horizontal counter scraping, 150W motor | |
| 85 | Battery | 2 6-qw-100mf maintenance free batteries | |
| 86 | Wire harness | The chassis harness adopts flame-retardant wires with temperature resistance of no less than 125 ℃, other harnesses adopt 105 degree flame-retardant wires, the bellows of the whole vehicle reaches V-0 level, and manual mechanical power-off switch is set | |
| 87 | GPS traveling data recorder | nothing | |
| 88 | Fire Extinguisher | Two 4kg fire extinguishers in the vehicle and two automatic fire extinguishers in the rear compartment | |
| 89 | Safety belt | Driver's seat belt only | |
| 90 | Safety hammer | 4 safety hammers with alarm | |
| 91 | Vehicle safety information sign | have | |
| 92 | Noise reduction insulation layer | The top cover is foamed, the side wall and the upper part of the rear compartment are foamed, and the heat insulation and sound insulation materials of the rear compartment meet the class a flame retardant requirements | |
| 93 | High temperature alarm of machine compartment and battery compartment | The motor has its own high temperature alarm, and the battery compartment has a high temperature alarm | |
| 94 | Vehicle terminal and remote monitoring platform (new energy) | have | |
| 95 | Video monitoring system inside and outside the vehicle with storage and upload function (three in one of monitoring, reversing and recorder) | have | |
| 96 | False start of rear compartment | have | |
| 97 | Topcoat | Domestic solid color paint | |
| 98 | Skirt door | Aluminum alloy door | |
| 99 | Rear wall door | Aluminum alloy rear compartment door | |
| 100 | Description item | The alarm safety hammers in the table are standard safety hammers | |
| 101 | Description item | ||
Company Overview
Beroad Motors mainly focus on automible business. During decades of
auto business experiences, Beroad has gained many resources for
brand new and used vehicles as well as it's technology and
applications.
|
