25mm Circular Junction Box

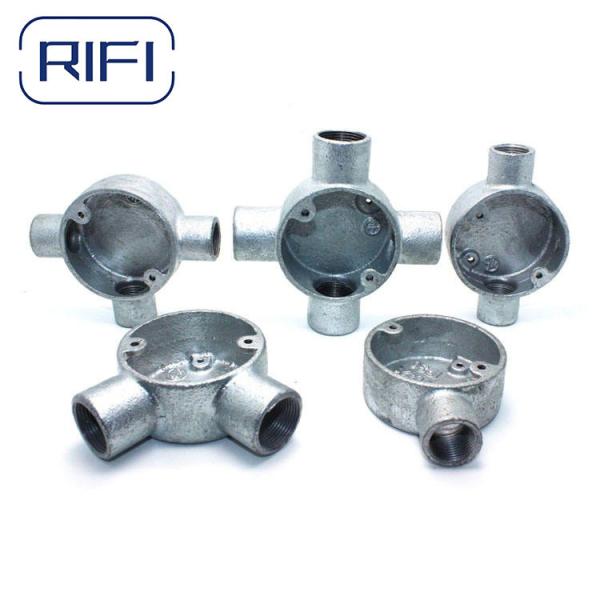

20mm 25mm BS4568 Terminal Extension Pattern Malleable Iron Circular Box For Electrical Conduit

Description:
20mm 25mm BS4568 Terminal Extension Pattern Malleable Iron Circular Box For Electrical Conduit
Standard: BS4568 BSEN 61386
Size: 20MM 25MM
Type: One way terminal circular box ; 2 way through circular box ; 2 way angle way circular box ; 3 way tee circular box ; 4 way intersection malleable iron round box ; U way electrical junction box ; Y way electrical malleable iron junction box ; H way electrical circular box
20mm 25mm BS4568 Terminal Extension Pattern Malleable Iron Circular Box for Electrical Conduit

Malleable iron circular box typically refers to a type of electrical enclosure or junction box used in electrical installations. These boxes are constructed from malleable iron, which is a type of iron that can be easily shaped or molded when it is heated. Malleable iron is often used in applications where strength and durability are required.

Feature :
20mm 25mm BS4568 Terminal Extension Pattern Malleable Iron Circular Box For Electrical Conduit
1.Boxes are manufactured from Malleable Iron, fInish Hot-Dipped Galvanized(Class 4) as standard;
2.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;
3.Each box is supplied C/W one regulation Tap Earth Terminal Hole in base;
4.Small and large Circular Boxes available;
5.Deep pattern Boxes available;
6.Full range of Conduit Fittings(Saddles) available to suit different site needs;
7.Good range of other supporting Conduit Fittings available.

Basic Information

Item Name	20mm 25mm BS4568 Terminal Extension Pattern Malleable Iron Circular Box For Electrical Conduit
Material	Malleable Iron, Cast Iron
Finish	Black Enamel/Galvanized
Terminal Size	20mm, 25mm, 32mm
Supply Ability	500000 pcs per month
Brand	RIFI
Place of Origin:	HUNAN , CHINA

Specification
20mm 25mm BS4568 Terminal Extension Pattern Malleable Iron Circular Box For Electrical Conduit

Cat. No.	Size(mm)	Size (Inch)
EW181GLV20	20	3/4"
EW181GLV25	25	1"
EW181GLV32	32	1-1/4"

Our Services
20mm 25mm BS4568 Terminal Extension Pattern Malleable Iron Circular Box For Electrical Conduit
1. Superior Quality:
All of the materials we used are 1st Class , our Conduit Bodies are all high-quality , equipment and technics are very advanced. We pay much attention to every details of the quality from production to package.
2. Competitive Prices:
We ourselves bought material for our own factory to producing, therefore, our cost is lower than others and the prices are much more competitive.
3. Convenience For Purchasing:
Customers can find all the related fittings here,Like EMT/IMC/RIGID Connector/set screw coupling/compression connectors/strut clamps/reducing bushings and so on.

Product Tags:


*From:	Your email address is incorrect!
*To:	CHANGSHA ELEWELL IMPORT&EXPORT CO.,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Circular Junction Box
Brand Name:	RIFI
Model Number:	EW18
Certification:	ISO
Place of Origin:	China
MOQ:	1000 pcs
Price:	0.6-3
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500000 pcs per month
Delivery Time:	15-30 days
Packaging Details:	carton
Type:	Circular Junction Round Box
Product Name:	Electrical Conduit Circular Junction Box
Transport Package:	Carton
Specification:	20mm; 25mm
Trademark:	RIFI
Material:	Malleable Iron
Finish:	Hot DIP Galvanized
